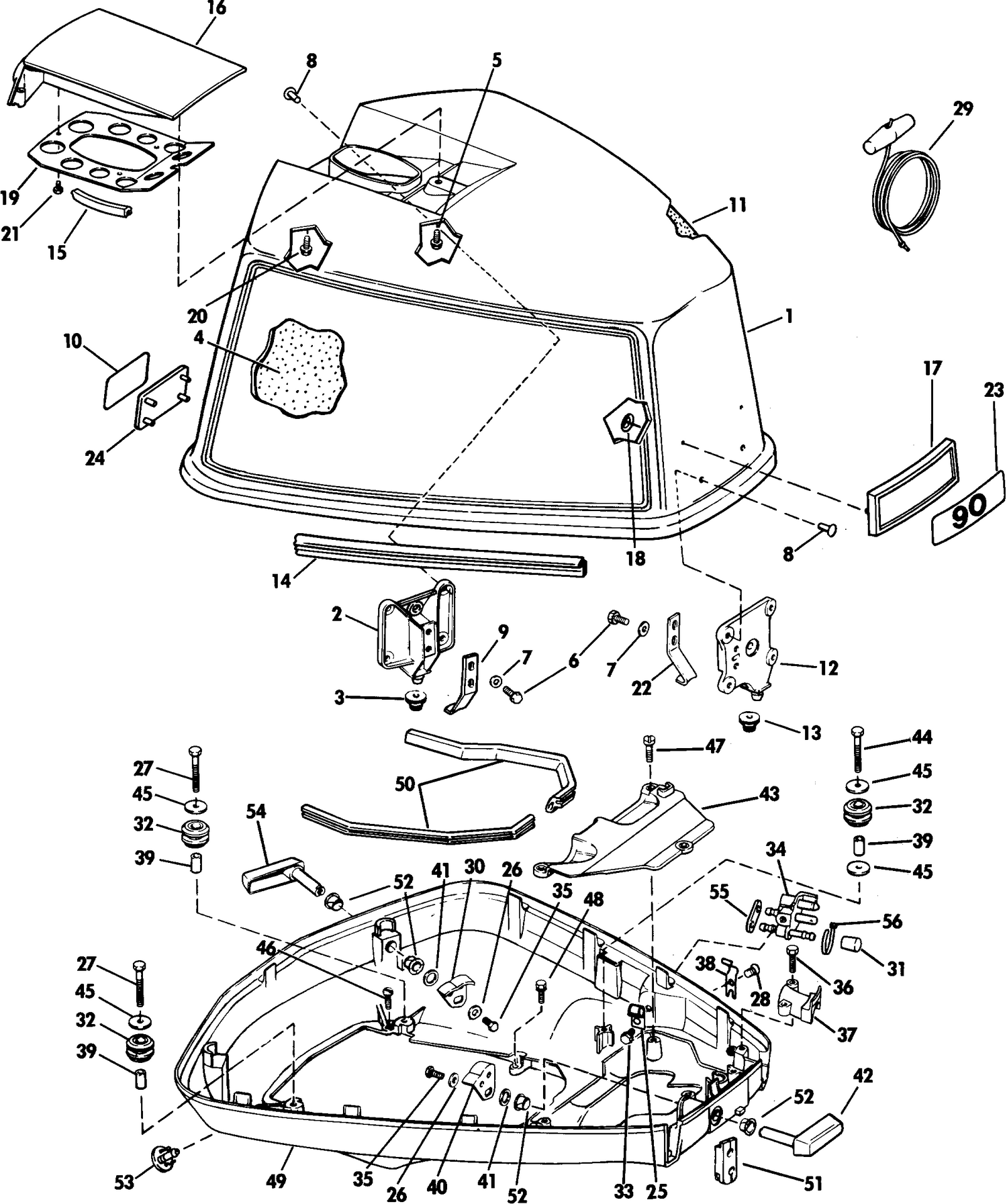

| Ref | Part Number | Description |
|---|
| 1 |
0394552 |
ENGINE COVER ASSY., 90 only |
| 1 |
0396879 |
ENGINE COVER ASSY., 115 only |
| 2 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0389972. |
| 4 |
0341534 |
SOUND BLANKET, Side This part replaces 0208509. |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 10 |
0329933 |
PLATE, Rear |
| 11 |
0208510 |
SOUND BLANKET, Top |
| 12 |
0389971 |
LOCATING BARCKET, Front |
| 14 |
0329548 |
SEAL This part replaces 0325435. |
| 15 |
0315984 |
SEAL , Baffle to motor cover |
| 17 |
0329930 |
APPLIQUE |
| 19 |
0206520 |
AIR INLET BAFFLE |
| 22 |
0323175 |
HOOK , Motor Cover, Front |
| 23 |
0329931 |
PLATE, Front, 90 only |
| 23 |
0331990 |
PLATE, Front, 115 only |
| 24 |
0329932 |
APPLIQUE, Rear |
| 25 |
0330157 |
CLAMP |
| 27 |
0303398 |
VIS, support |
| 28 |
0310539 |
SCREW, Clamp choke solenoid |
| 29 |
0378347 |
CORDE DE LANCEUR |
| 30 |
0323169 |
HOOK, Lower rear port |
| 32 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 33 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 35 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 37 |
0318849 |
CLAMP, Instrument cable |
| 38 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0329610. |
| 39 |
0302406 |
SLEEVE |
| 40 |
0323170 |
HOOK Front and stbd., rear |
| 42 |
0383641 |
LATCH HANDEL ASSY., Front |
| 43 |
0328358 |
COVER ASSY. Air entrance |
| 44 |
0303398 |
VIS, support |
| 46 |
0328695 |
CLAMP, Engine cable |
| 47 |
0328695 |
CLAMP, Engine cable |
| 49 |
0434289 |
COVER, Lower This part replaces 0396769. |
| 50 |
0318258 |
SEAL Cover |
| 51 |
0323428 |
GROMMET |
| 53 |
0321885 |
NIPPLE |
| 54 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 55 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
| 56 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 0393907 |
0393907 |
DECAL SET |
