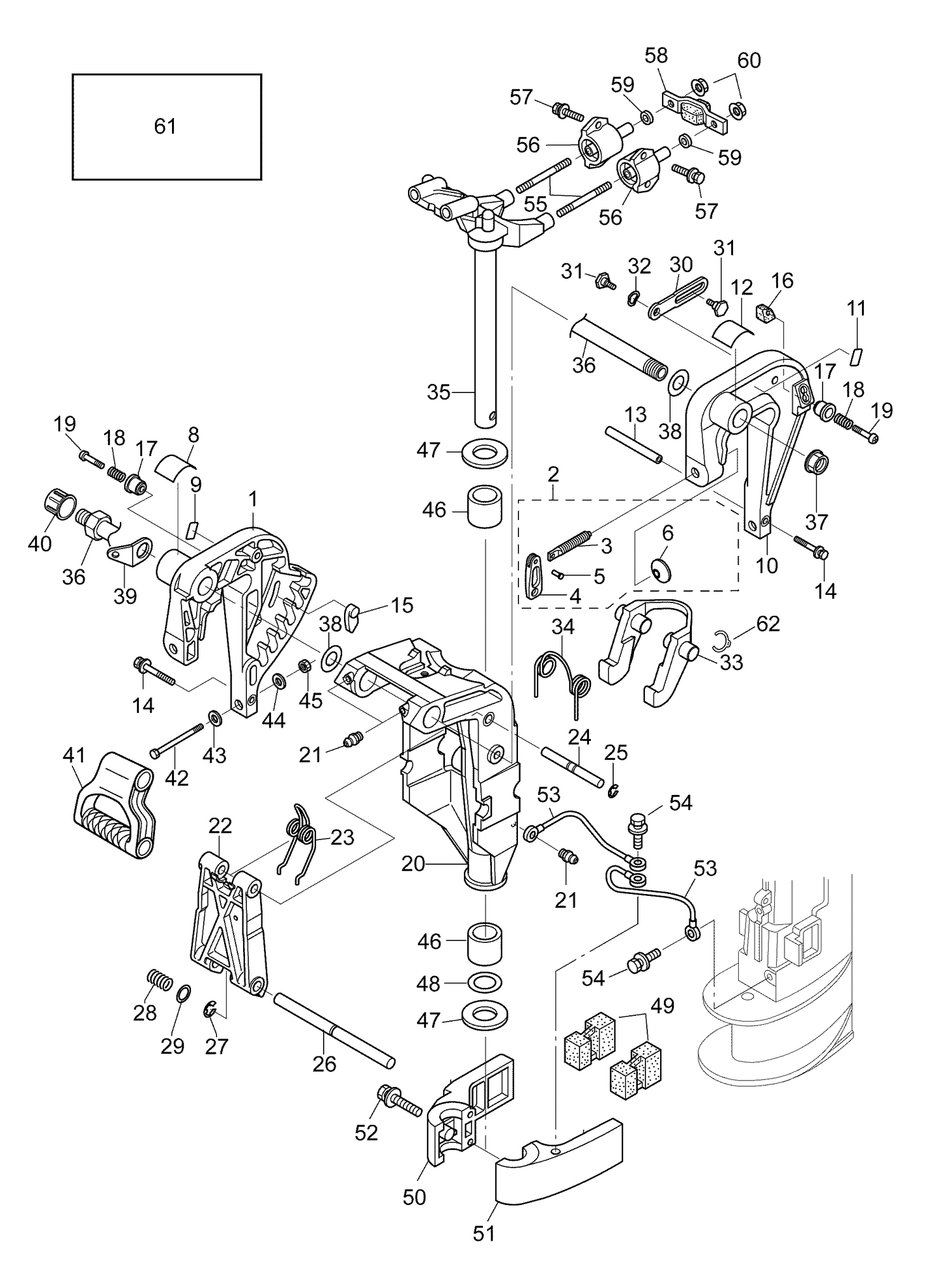

16-4_STERN & SWIVEL BRACKET (EGL MODELS)
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5040358 | CLAMP SCREW KIT |
| 8 | 5040354 | TRIM POSITION DECAL |
| 9 | 5040341 | Low Tilt Limit Dec |
| 11 | 5040340 | TILT LOCK DECAL |
| 13 | 5040321 | SPACER |
| 14 | 5041564 | BOLT |
| 15 | 5040322 | TRIM SETTING PLATE |
| 16 | 5040323 | TILT LOCK PIECE |
| 17 | 5040329 | KNOB |
| 18 | 5041475 | SPRING, TILT LOCK KNOB |
| 19 | 5041611 | SCREW |
| 20 | 5040362 | SWIVEL BRACKET |
| 21 | 5040055 | GREASE FITTING |
| 22 | 5040330 | TILT STOPPER BODY |
| 23 | 5040324 | SPRING |
| 24 | 5040331 | TILT STOPPER SHAFT (UPPER) |
| 25 | 5041682 | E-RING D=6 |
| 26 | 5040332 | TILT STOPPER SHAFT (LOWER) |
| 27 | 5041683 | E-RING D=9 |
| 28 | 5040333 | SPRING |
| 29 | 5040032 | WASHER 10.5-18-1.5 |
| 31 | 5040327 | BOLT |
| 32 | 5041679 | WAVE WASHER D=10 |
| 33 | 5040337 | REVERSE LOCK |
| 34 | 5040336 | REVERSE LOCK SPRING |
| 35 | 5040357 | STEERING SHAFT ASSEMBLY |
| 37 | 5040069 | NYLON NUT 7/8 |
| 39 | 5040319 | PLATE |
| 41 | 5040317 | CARRYING HANDLE |
| 43 | 5041669 | WASHER |
| 44 | 5041492 | WASHER |
| 45 | 5041655 | NYLON NUT |
| 46 | 5040092 | BUSHING 24-30-30 |
| 47 | 5040093 | THRUST PLATE (UPPER) |
| 48 | 5040091 | O-RING 3.5-22 |
| 49 | 5041329 | RUBBER MOUNT (LOWER) |
| 52 | 5041566 | BOLT |
| 54 | 5041557 | BOULON |
| 55 | 5041330 | STUD |
| 56 | 5041405 | RUBBER MOUNT (UPPER) |
| 57 | 5041573 | BOLT |
| 58 | 5041332 | DAMPER (UPPER) |
| 59 | 5041669 | WASHER |
| 60 | 5041331 | NUT (FLANGE) |
