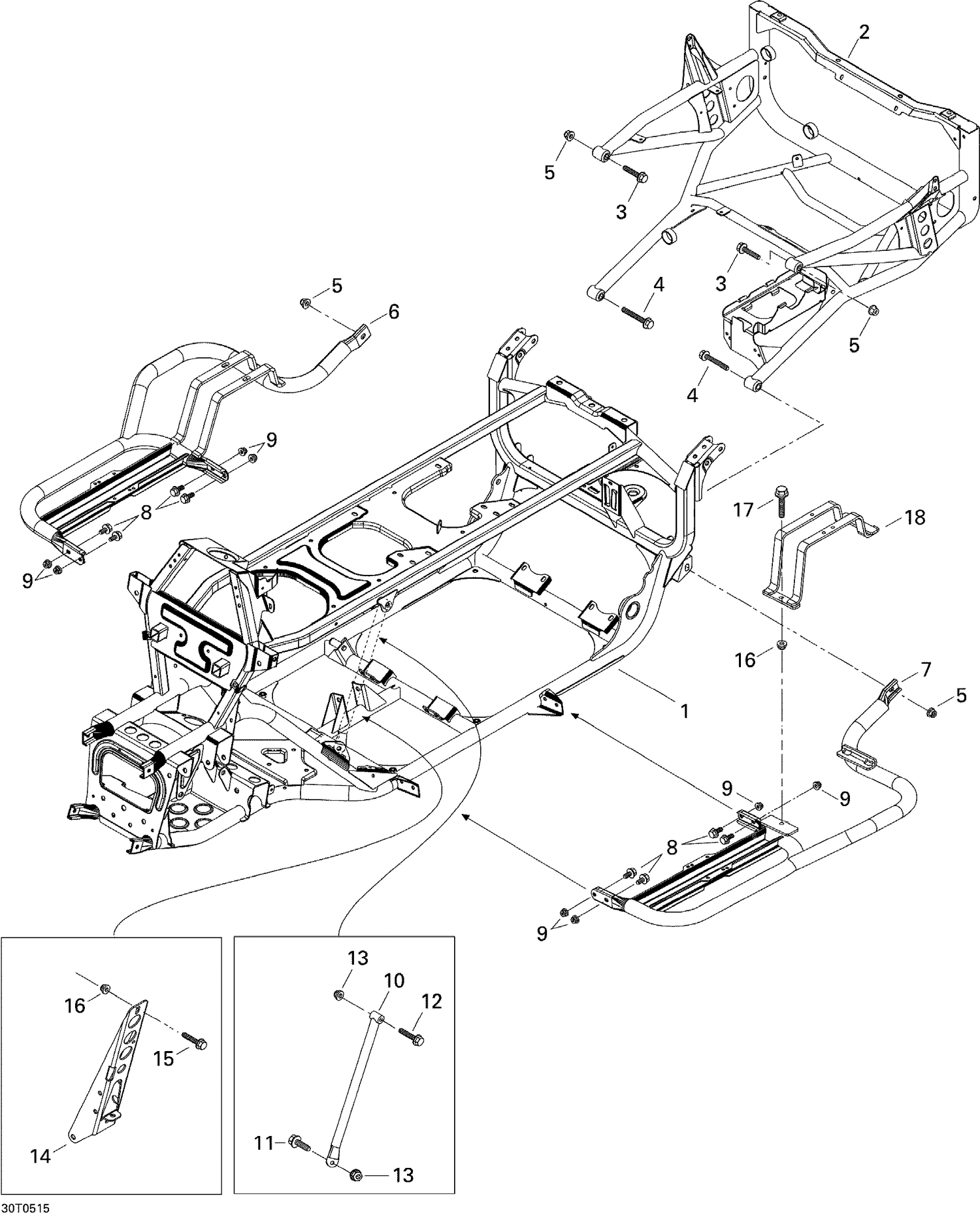

09- Frame
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200988 | Black, Frame |
| 2 | 705201039 | Frame Extension, Black |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 207608044 | HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 705200653 | RH Footrest, Black |
| 7 | 705200847 | LH Footrest, Black |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 705200404 | RH Removable Brace |
| 10 | 705200405 | LH Removable Brace |
| 11 | 207682544 | Hex. Flange Screw M8 X 25 |
| 12 | 207685044 | Hex. Flange Screw M8 X 50 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 705200803 | Brake Cab Support |
| 15 | 207682044 | Hex. Flange Screw M8 X 20 |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 17 | 207682544 | Hex. Flange Screw M8 X 25 |
