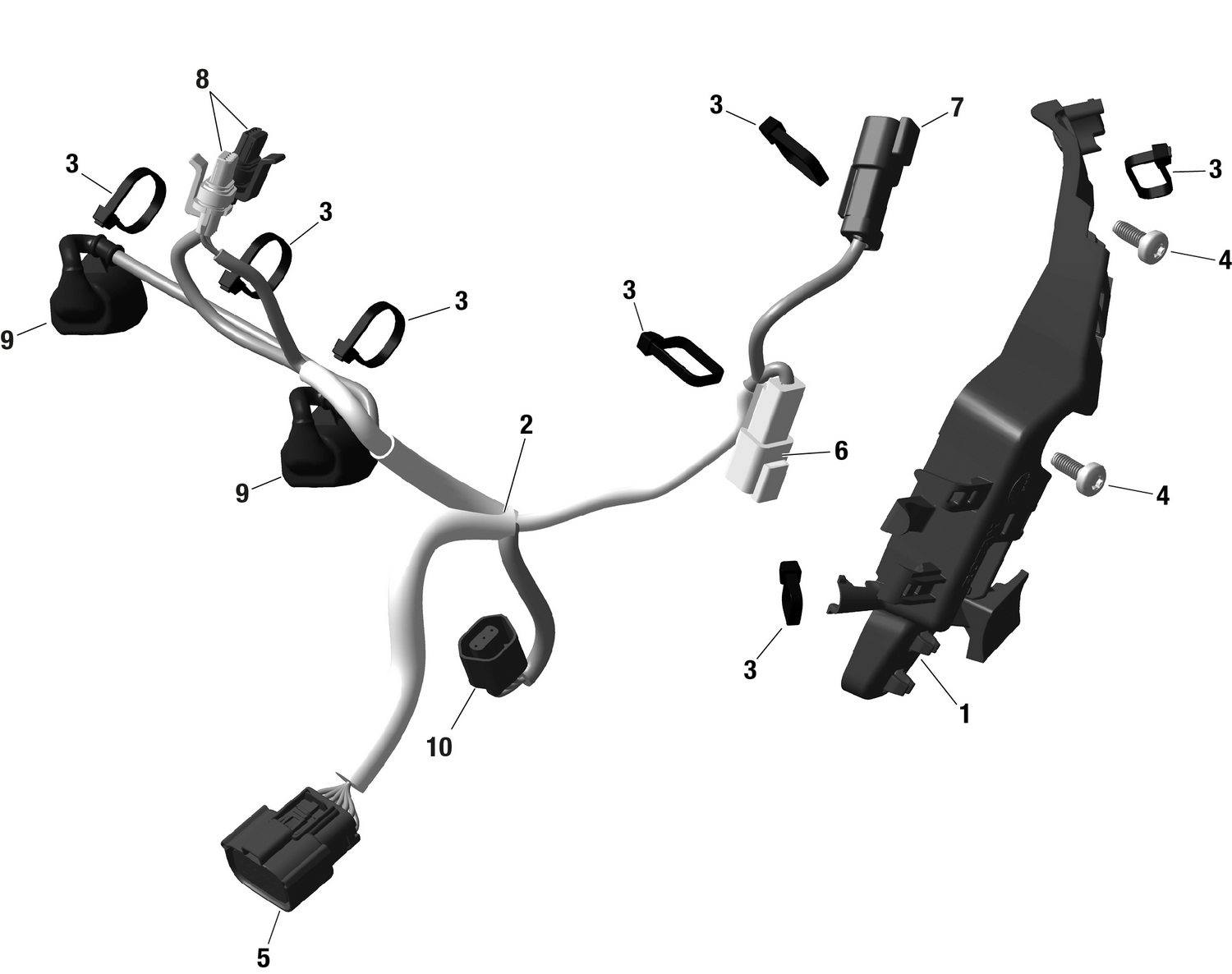

01- ROTAX - Engine Harness And Electronic Module
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420260165 | Harness Support |
| 2 | 420864452 | Engine Harness |
| 3 | 278002994 | Housing, 12 Circuits |
| 4 | 409206900 | Male Housing, 2 Circuits |
| 5 | 409206900 | Male Housing, 2 Circuits |
| 6 | 415130195 | Connector |
| 7 | 420651817 | Locking Tie 175 X 4 MM |
| 8 | 420640325 | Torx Screw M6 X 16 |
| 9 | 278002994 | Housing, 12 Circuits |
