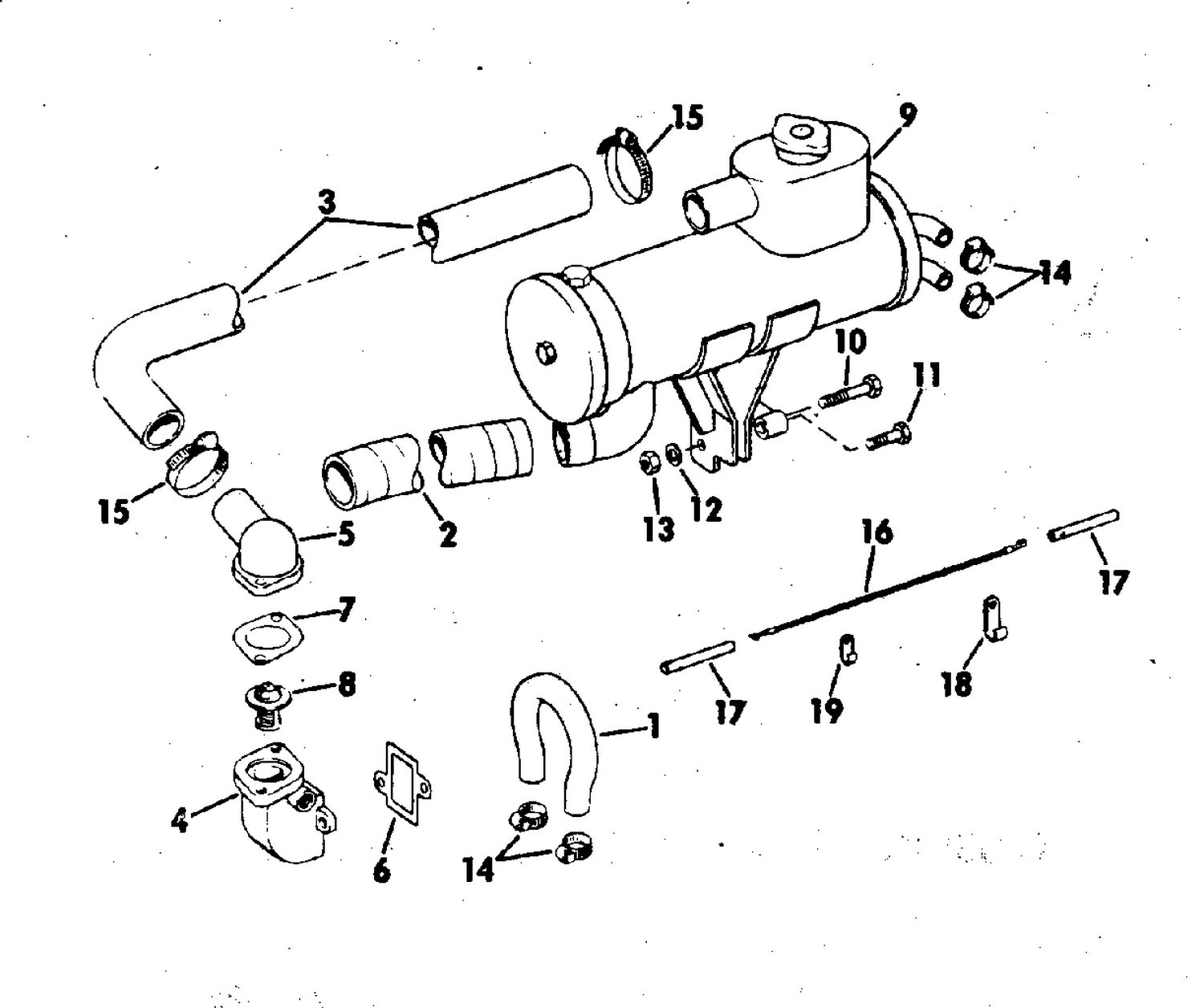

| Ref | Part Number | Description |
|---|
| 3 |
HOSE, |
Thermostat housing to expansion tank, 1 -1/2" I.D.,24" long |
| 4 |
042-037 |
END CAP, Anode housing |
| 5 |
047-038 |
COVER, Thermostat housing |
| 6 |
079-032 |
GASKET, Thermostat housing |
| 7 |
079-033 |
GASKET, Thermostat housing cover |
| 8 |
072-018 |
THERMOSTAT, 160 deg |
| 9 |
HEAT |
EXCHANGER ASSY.,Omc 313-4 |
| 12 |
LOCKWASHER,Screw,lower |
Ref: 13 NUT,Screw,lower,3/8 |
| 15 |
CLAMP,Hose,#24 |
Ref: 16 LEAD,Purple,12" with knife disconnects oneach end |
| 17 |
SLEEVES,Neoprene |
Ref: 18 CLAMP,Large |
| 19 |
CLAMP,Small |
Ref: 031-072 031-072 HEAT EXCHANGER COMPLETE 031-072 |
