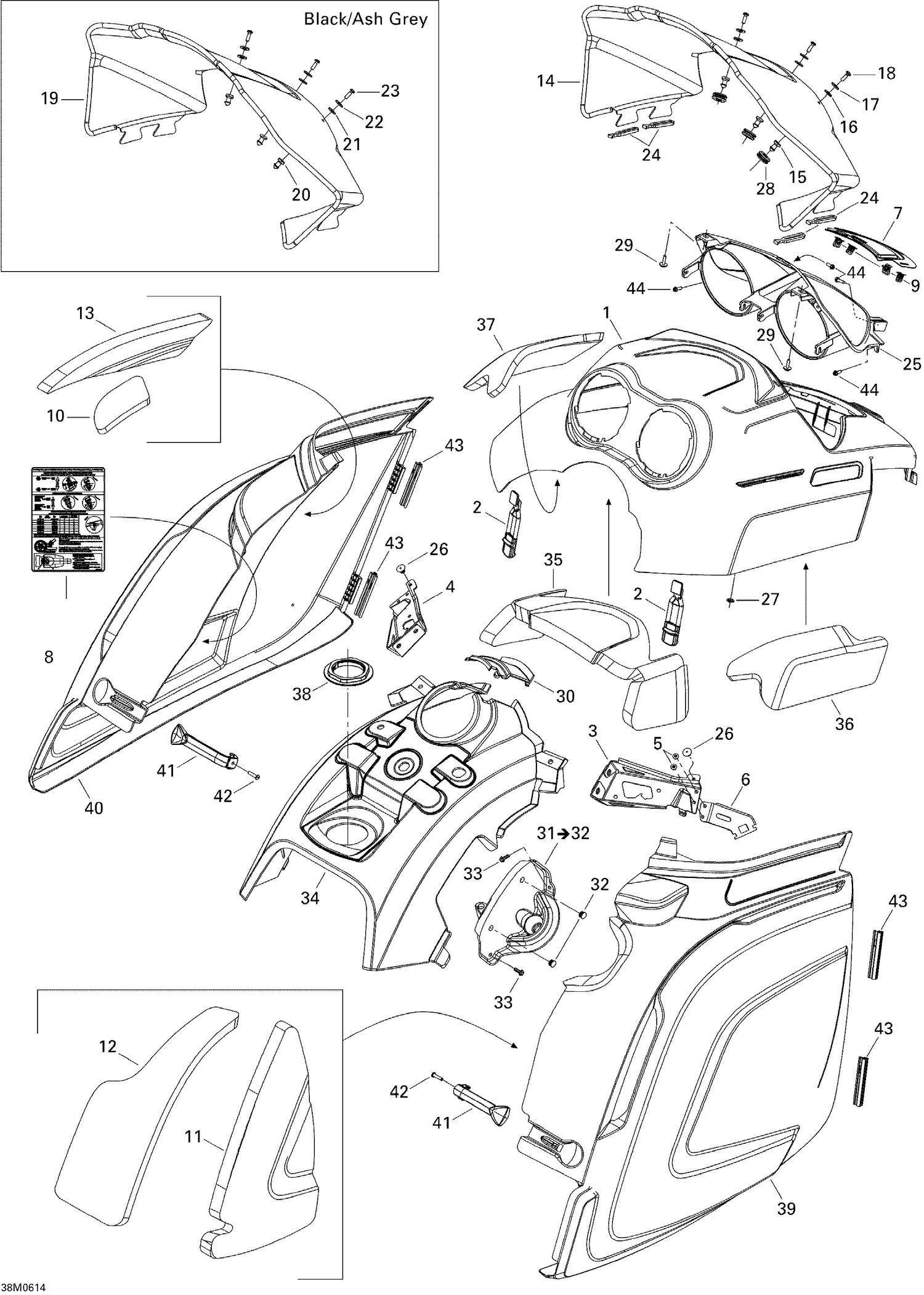

09- Hood
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517303518 | Latch |
| 3 | 517303491 | RH Bracket |
| 4 | 517303490 | LH Bracket |
| 5 | 390402200 | Pop Rivet 3/16" |
| 6 | 517303517 | BRACKET - Call your local BRP dealership |
| 7 | 517303331 | Center Hood Grille |
| 8 | 517303594 | Adjustment Suspension Decal |
| 9 | 517302785 | Edge Clip |
| 10 | 517303520 | FOAM, AIR OUTLET - Call your local BRP dealership |
| 11 | 517303456 | RH PANEL FOAM, FRONT - Call your local BRP dealership |
| 12 | 517303457 | RH PANEL FOAM, REAR - Call your local BRP dealership |
| 13 | 517303485 | LH PANEL FOAM, FRONT - Call your local BRP dealership |
| 24 | 570023800 | Windshield Latch |
| 25 | 517303390 | Headlight Moulding |
| 26 | 293150103 | Pop Rivet 3/16" |
| 27 | 732610072 | Push Nut |
| 28 | 517307161 | Grommet This part replaces 517302841. |
| 29 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 30 | 517303458 | CONSOLE CAP - Call your local BRP dealership |
| 32 | 275500241 | Black, Cap |
| 33 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 34 | 517303349 | CENTER CONSOLE - Call your local BRP dealership |
| 35 | 517303350 | Hood Foam |
| 36 | 517303486 | RH Hood Foam |
| 37 | 517303487 | LH HOOD FOAM - Call your local BRP dealership |
| 38 | 517302575 | CONSOLE NUT - Call your local BRP dealership |
| 39 | 517303351 | RH Panel |
| 40 | 517303352 | LH Panel |
| 41 | 517302448 | Panel Latch |
| 42 | 390410100 | Pop Rivet 3/16” |
| 43 | 517302823 | Hinge Lock |
