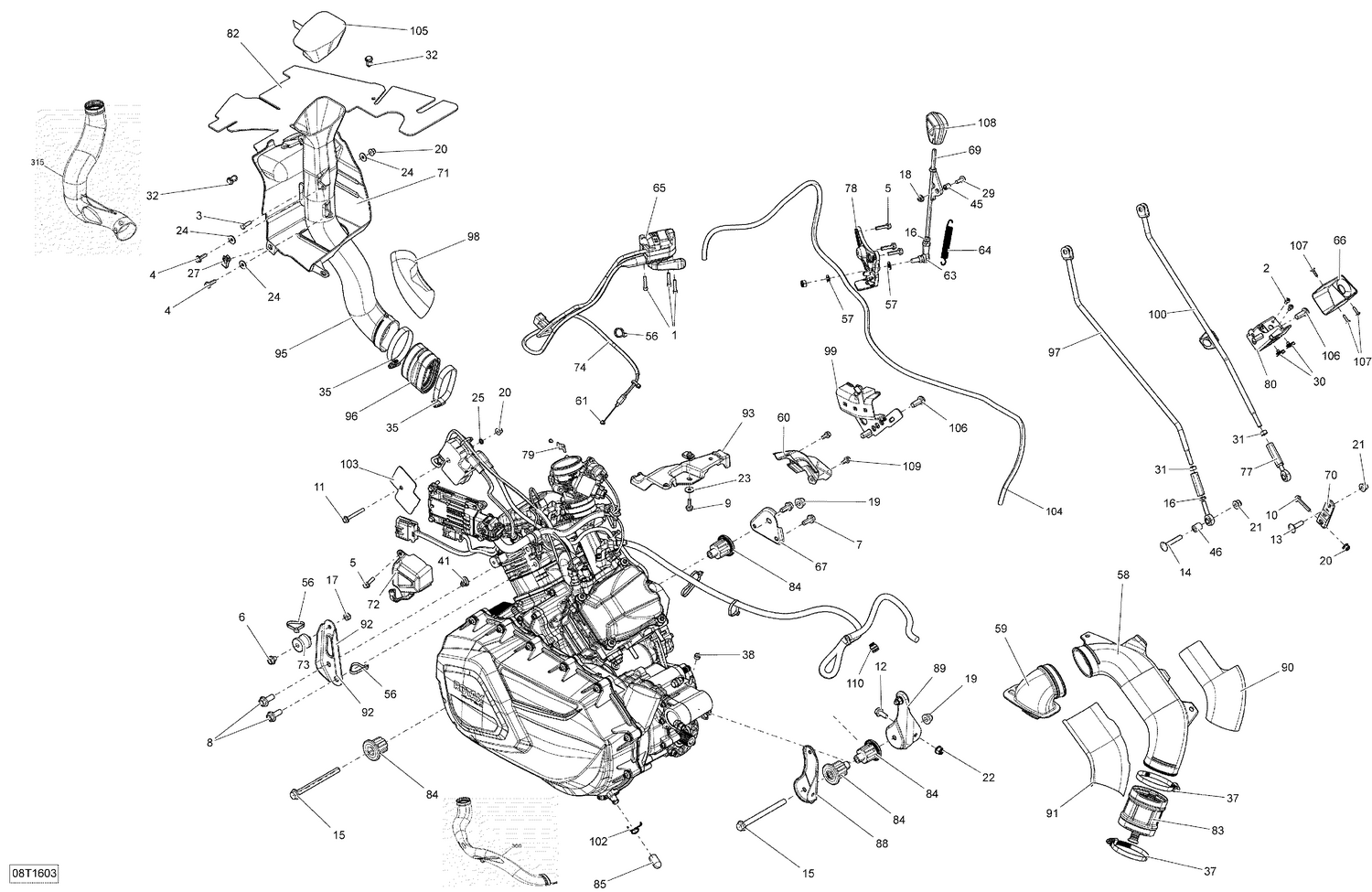

01- Engine and Engine Support
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205052588 | Socket Head Screw M5 X 25 |
| 3 | 207162044 | Hex. Screw M6 X 20 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 5 | 207562544 | Hex. Flange Screw M6 X 25 |
| 6 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 7 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 8 | 207602544 | Hex. Flange Screw M10 X 25 |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207663544 | Hex. Flange Screw M6 X 35 |
| 11 | 207665044 | Hex. Flange Screw M6 X 50 |
| 12 | 207682046 | Hex. Flange Screw M8 X 20 |
| 15 | 230602546 | Hex. Flange Screw M10 X 125 |
| 16 | 232180600 | Hex. Jam Nut M8 |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 |
| 18 | 233161414 | Hex. Flange Nut M6 |
| 19 | 233201436 | Hex. Flange Elastic Nut M10 |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 233281416 | Hex. Elastic Flange Nut M8 |
| 23 | 234062410 | Flat Washer 6 mm |
| 24 | 234062600 | Flat Washer M6, Stainless |
| 25 | 234461608 | External Serrated Lock Washer 6 mm |
| 27 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 29 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 31 | 250100144 | Hex. Nut M8, LH Threads |
| 32 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 33 | 293600041 | CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 35 | 293650091 | Norma Clamp |
| 37 | 293650118 | Norma Gear Clamp |
| 38 | 293650195 | Clamp, Oetiker |
| 41 | 293750002 | Tie Wrap 142 mm |
| 45 | 293900019 | Bushing |
| 56 | 414115200 | Tie-Rap 180 mm |
| 57 | 506151252 | Washer |
| 58 | 706600019 | Air Outlet |
| 59 | 706600400 | CVT Cooling Duct Out This part replaces 706600024. |
| 60 | 707000410 | Cover OPS |
| 61 | 707000434 | Cable Guide |
| 63 | 707001959 | RH Ball Joint This part replaces 707000546. |
| 64 | 707000577 | Spring |
| 65 | 707000595 | Throttle Handle |
| 67 | 707003319 | Engine Support This part replaces 707000761. |
| 69 | 707000840 | Shift Arm |
| 70 | 707000911 | Lever |
| 71 | 707000928 | Water Deflector |
| 72 | 707000945 | Cover |
| 73 | 707000949 | Rubber Isolator |
| 74 | 707000955 | Throttle Cable |
| 77 | 707000966 | Ball Joint Ass'y |
| 78 | 707003054 | Lever Support This part replaces 707000971. |
| 82 | 707001041 | Upper Water Deflector |
| 83 | 707001168 | CVT Air Outlet Adaptor |
| 84 | 707001169 | Vibration Damper |
| 85 | 707001185 | Plug |
| 90 | 707001205 | Heat Shield |
| 91 | 707001206 | Heat Shield |
| 93 | 707001262 | Air Outlet Support |
| 95 | 707002073 | CVT Air Inlet This part replaces 707001399. |
| 96 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 98 | 707001654 | Heat Shield |
| 99 | 707003053 | Cable Support This part replaces 707001842. |
| 102 | 707800506 | Retainer Clip |
| 103 | 710000073 | Insulator Pad |
| 104 | 219704410 | Polyurethane Hose 10000Mm Long |
| 106 | 205402556 | Screw Socket M10 X 25 |
| 108 | 707003211 | Lever Trim This part replaces 707000965. |
| 109 | 210261250 | Hex. Flange Screw M6 X 12 |
| 110 | 710002896 | Tie-Rap Clip |
