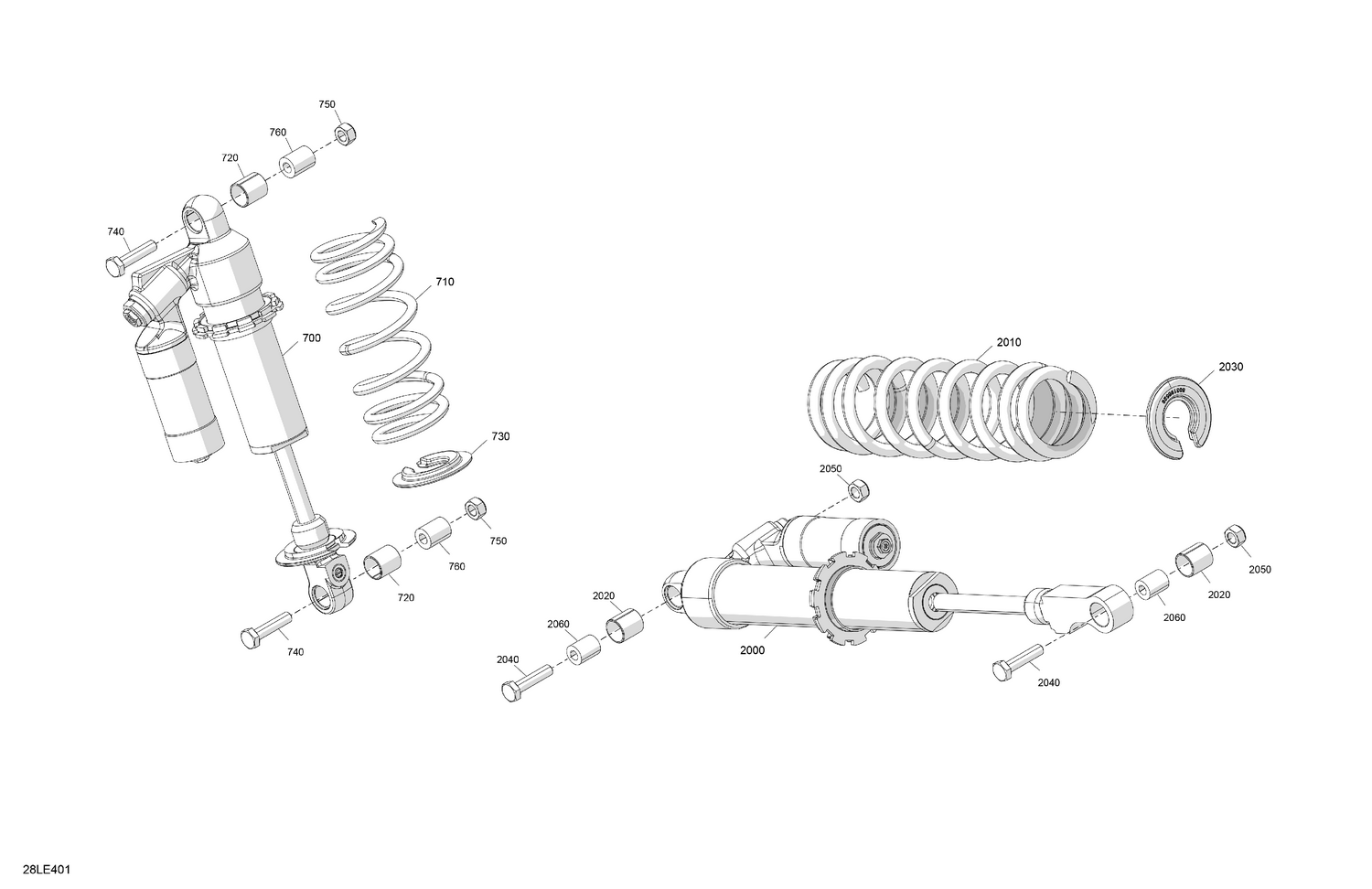

05- Suspension - Rear Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 700 | 503197690 | Central Shock Absorber Kit RS |
| 710 | 503197954 | Compression Spring 24 N/Mm |
| 720 | 503195134 | Glide Bearing |
| 730 | 503196528 | Stopper Spring |
| 740 | 207004544 | Hex. Screw M10 X 45 |
| 750 | 232500416 | Elastic Stop Nut M10 |
| 760 | 5446652 | Bushing |
| 2000 | 503197691 | Rear Shock Absorber Kit RS |
| 2010 | 503197239 | Compression Spring 60 N/MM |
| 2020 | 503195134 | Glide Bearing |
| 2030 | 503196528 | Stopper Spring |
| 2040 | 207004544 | Hex. Screw M10 X 45 |
| 2050 | 232500416 | Elastic Stop Nut M10 |
