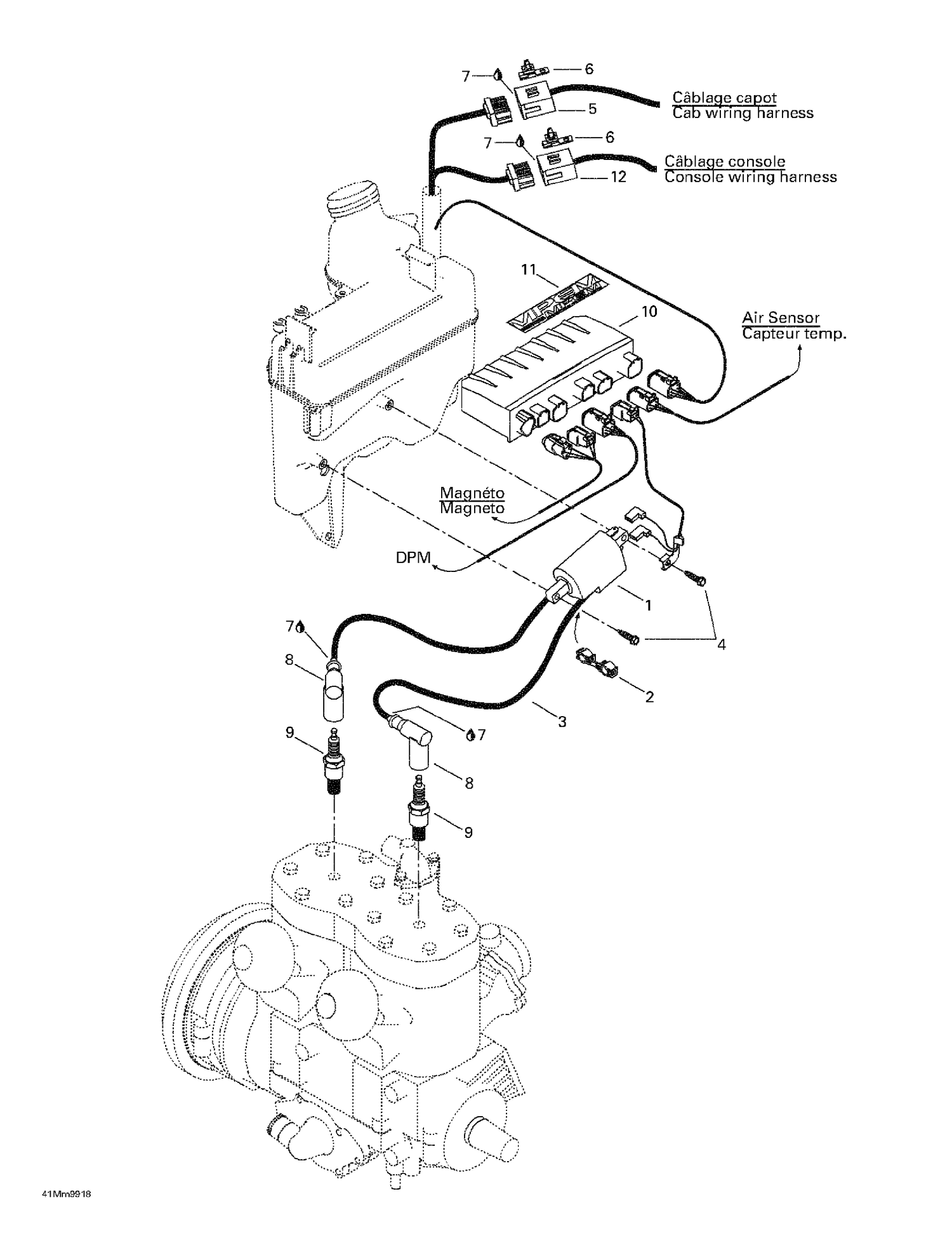

| Ref | Part Number | Description |
|---|
| 2 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 3 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 5 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 6 |
515175283 |
Housing Support |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 9 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 10 |
515175366 |
Calibration Module |
| 11 |
516000245 |
Electrical Box Decal |
