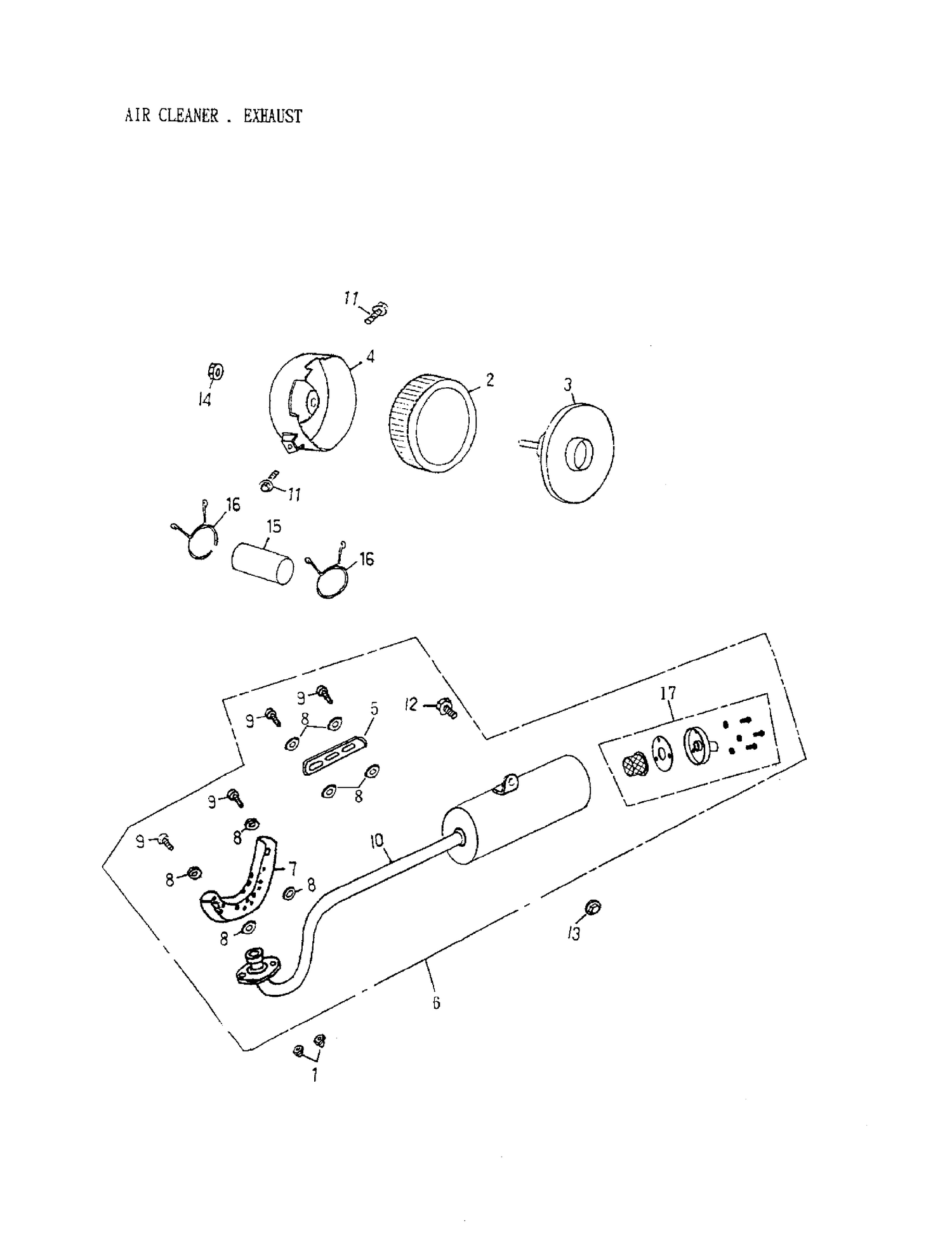

01- Air Cleaner, Exhaust (172-15)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A9402106000 | Hex. Acorm Washer Face Nut M6 |
| 2 | A17205152000 | Air Cleaner Element |
| 3 | A17206152000 | AIR CLEANER BASE - Call your local BRP dealership |
| 4 | A17207152000 | AIR CLEANER COVER - Call your local BRP dealership |
| 5 | A18319158000 | Muffler Shroud |
| 6 | A1830015200A | Exhaust Pipe Ass'y |
| 7 | A18318152000 | Muffler Shroud |
| 8 | A18292104000 | Muffler Shroud Packing |
| 9 | A9350006008 | Pan Head Phillips Bolt M6 X 8 |
| 10 | A18311152000 | Front Exhaust Pipe |
| 11 | A9600006012 | Hex. Washer Face Bolt M6 X 12 |
| 12 | A960000802012 | Hex. Washer Face Bolt 8 X 20 |
| 13 | 233081416 | Hex. Flange Nut M8 This part replaces A9405008000. |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | A52101145000 | Rubber Sleeve |
| 16 | A9451040000 | CLIP - Call your local BRP dealership |
