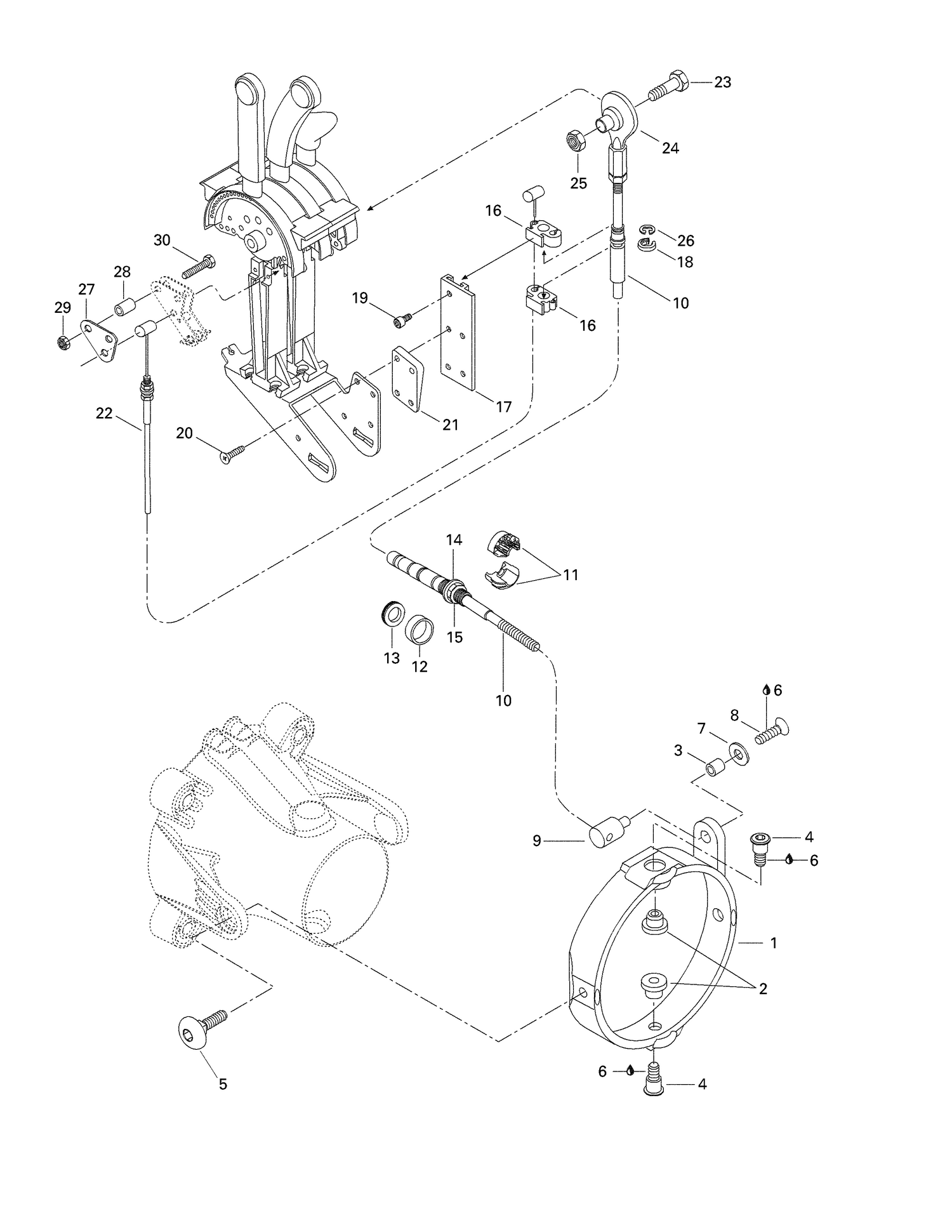

05- Variable Trim System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271000633 | Trimming Ring |
| 2 | 293900007 | Venturi Bushing |
| 3 | 204390001 | PLASTIC BUSHING - Call your local BRP dealership |
| 4 | 211000089 | Socket Head Screw M8 x 10 |
| 5 | 211000007 | Screw |
| 6 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 7 | 234062600 | Flat Washer M6, Stainless This part replaces 213200007. |
| 8 | 215860868 | Screw M6 x 8 |
| 9 | 277000543 | VTS Rotule |
| 10 | 271000621 | VTS Cable |
| 11 | 277000168 | Half-Ring |
| 12 | 211100010 | Retaining Ring |
| 13 | 211100009 | RUBBER WASHER - Call your local BRP dealership |
| 14 | 211200006 | FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 15 | 211100011 | Hex. Jam Nut 1/2-20 |
| 16 | 277000540 | Cable Support |
| 17 | 277000546 | Slider Shoe |
| 18 | 277000541 | Ring VTS Cable |
| 19 | 215940660 | Socket Screw M4 x 6 |
| 20 | 208641660 | Phillips Screw M4 X 16 This part replaces 211000011. |
| 21 | 293450140 | Spacer |
| 22 | 277000542 | Compensator Cable VTS |
| 23 | 207162560 | Hex. Screw M6 X 25 This part replaces 210000005. |
| 24 | 277000153 | BALL JOINT - Call your local BRP dealership |
| 25 | 232160600 | Hex. Nut M6 This part replaces 212100003. |
| 26 | 414274500 | Circlip |
| 27 | 277000583 | Compensator Link |
| 28 | 277000584 | SPACER 6.7 MM - Call your local BRP dealership |
| 29 | 232561600 | Hex. Elastic Stop Nut M6 This part replaces 212000001. |
