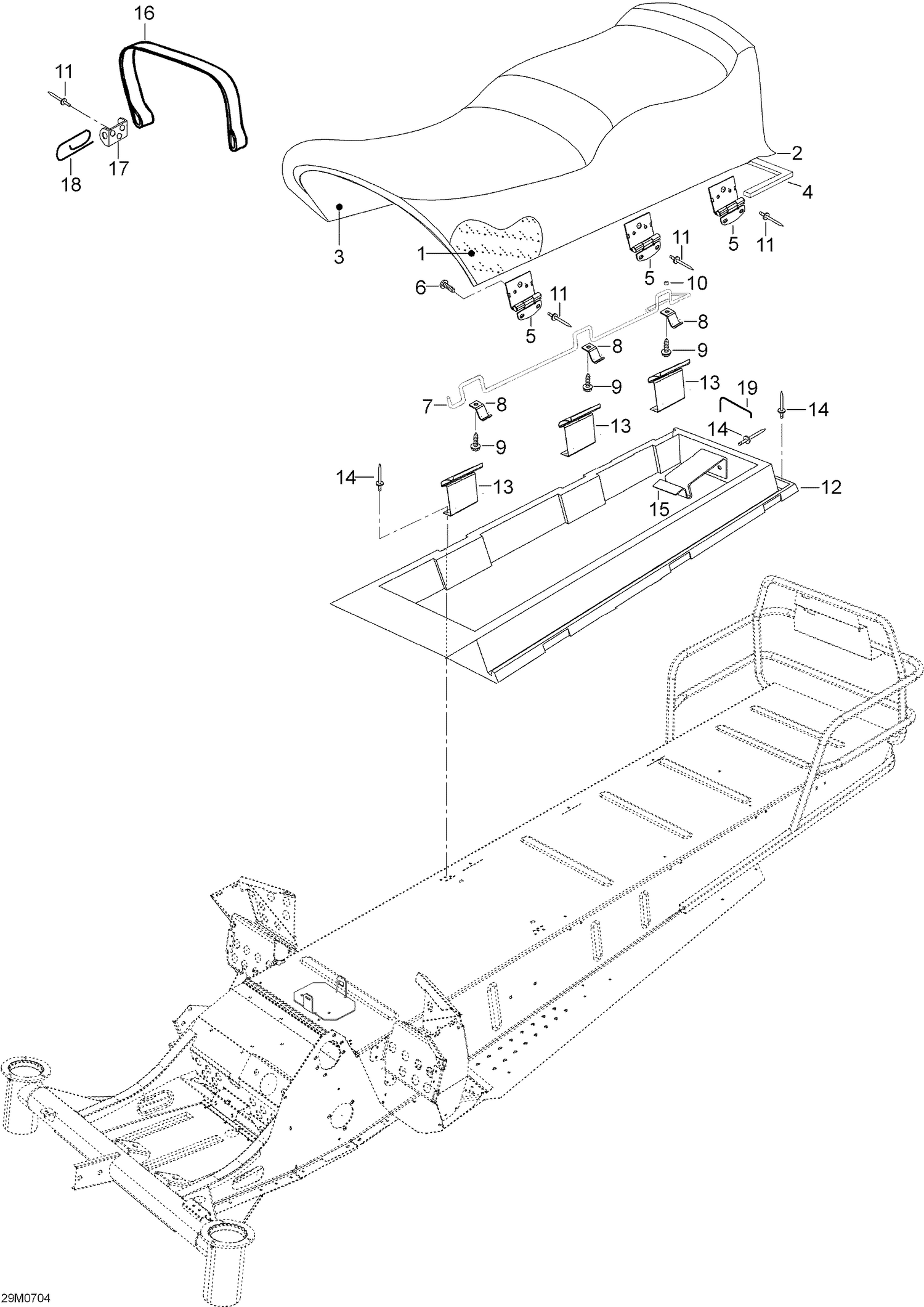

09- Seat
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605150630 | SEAT FOAM - Call your local BRP dealership |
| 2 | 605153080 | Cover-seat, Lt |
| 3 | M5144962 | Seat Base |
| 4 | M5440059 | SEALING STRIP PROFIL - Call your local BRP dealership |
| 5 | M5346518 | Hinge |
| 6 | M40887 | SCREW - Call your local BRP dealership |
| 7 | M5245337 | Locking Shaft |
| 8 | M5446102 | Locking Plate |
| 9 | M40888 | Screw |
| 10 | M28019 | Cap |
| 11 | 36108 | Rivet This part replaces M36083. |
| 12 | 605350823 | Seat Box |
| 13 | M5345195 | Lock |
| 14 | M36489 | Rivet |
| 15 | M5346728 | SPRING PLATE - Call your local BRP dealership |
| 16 | M5346727 | SEAT BELT - Call your local BRP dealership |
| 17 | M548824 | Seat Belt Latch |
| 18 | 548834 | Spring This part replaces M548834. |
