| Ref | Part Number | Description |
|---|
| 2 |
0125457 |
HOUSING This part replaces 0123246. |
| 3 |
0125458 |
HOUSING, Control This part replaces 0123247. |
| 4 |
0173598 |
TRAY |
| 5 |
0123261 |
SHAFT, Remote control |
| 6 |
0123496 |
DRIVE GAR, Starboard |
| 8 |
0123265 |
SPRING, Drive gear |
| 9 |
0123266 |
BRUSHING, Shaft to housing |
| 10 |
0123267 |
WASHER |
| 11 |
0123268 |
ROLLER Throttle cam |
| 12 |
0123269 |
WASHER |
| 13 |
0123270 |
CAM Neutral switch |
| 14 |
0173587 |
FIRCTION CONTROL |
| 15 |
0909859 |
SCREW, Control housing |
| 17 |
0123274 |
SCREW, Tray to housing |
| 18 |
0123278 |
HANDLE |
| 19 |
0125198 |
KNOB, Binnacle |
| 20 |
0125394 |
KNOB Trim switch |
| 21 |
0125199 |
END CAP, Knob |
| 24 |
0123610 |
COVER, Handle |
| 25 |
0125393 |
GROMMET TRIM SWITCH |
| 26 |
0125150 |
COVER |
| 27 |
0124894 |
SCREW, Control mounting |
| 29 |
0123324 |
RETAINER, Trim |
| 30 |
0123340 |
SCREW, Retainer |
| 32 |
0123342 |
SHOE Detent roller |
| 33 |
0123343 |
TRIM INSERT |
| 34 |
0123350 |
BUSHING |
| 35 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 36 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 37 |
0173480 |
NEUTRAL START SWITCH |
| 38 |
0174285 |
SWITCH & LEAD ASSEMBLY |
| 39 |
0825886 |
TERMINAL |
| 41 |
0173572 |
LEAD ASSEM BLY |
| 44 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 48 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 49 |
0308545 |
SCREW |
| 0173581 |
0173581 |
CABLE MOUNT HARDWARE KIT |
| 0174694 |
5006182 |
COMMANDE À DISTANCE This part replaces 0174694. |
| 0174697 |
0174697 |

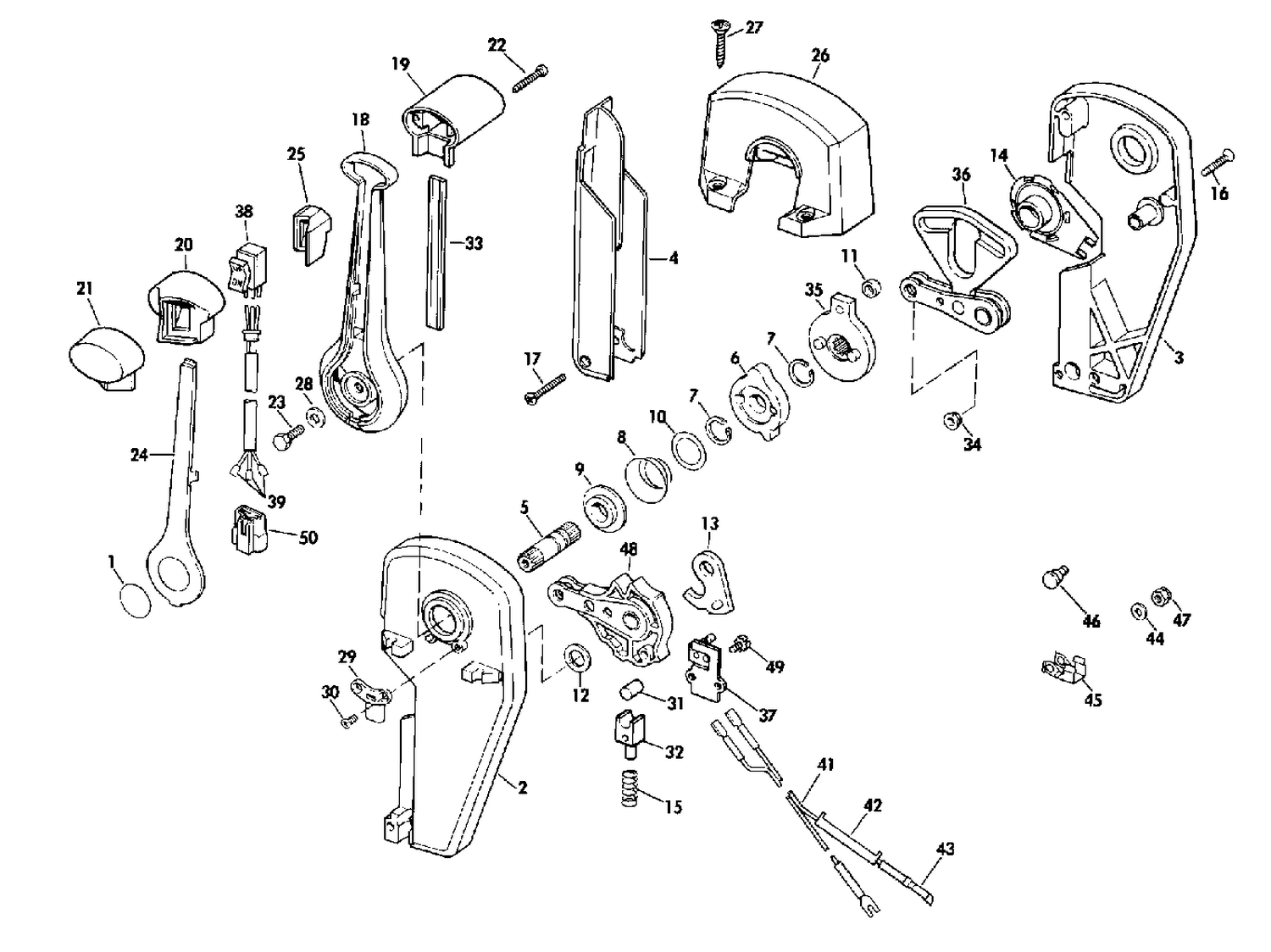

REMOTE CONTROL ASSY. - BINNACLE MOUNT, Sgl. lever |
