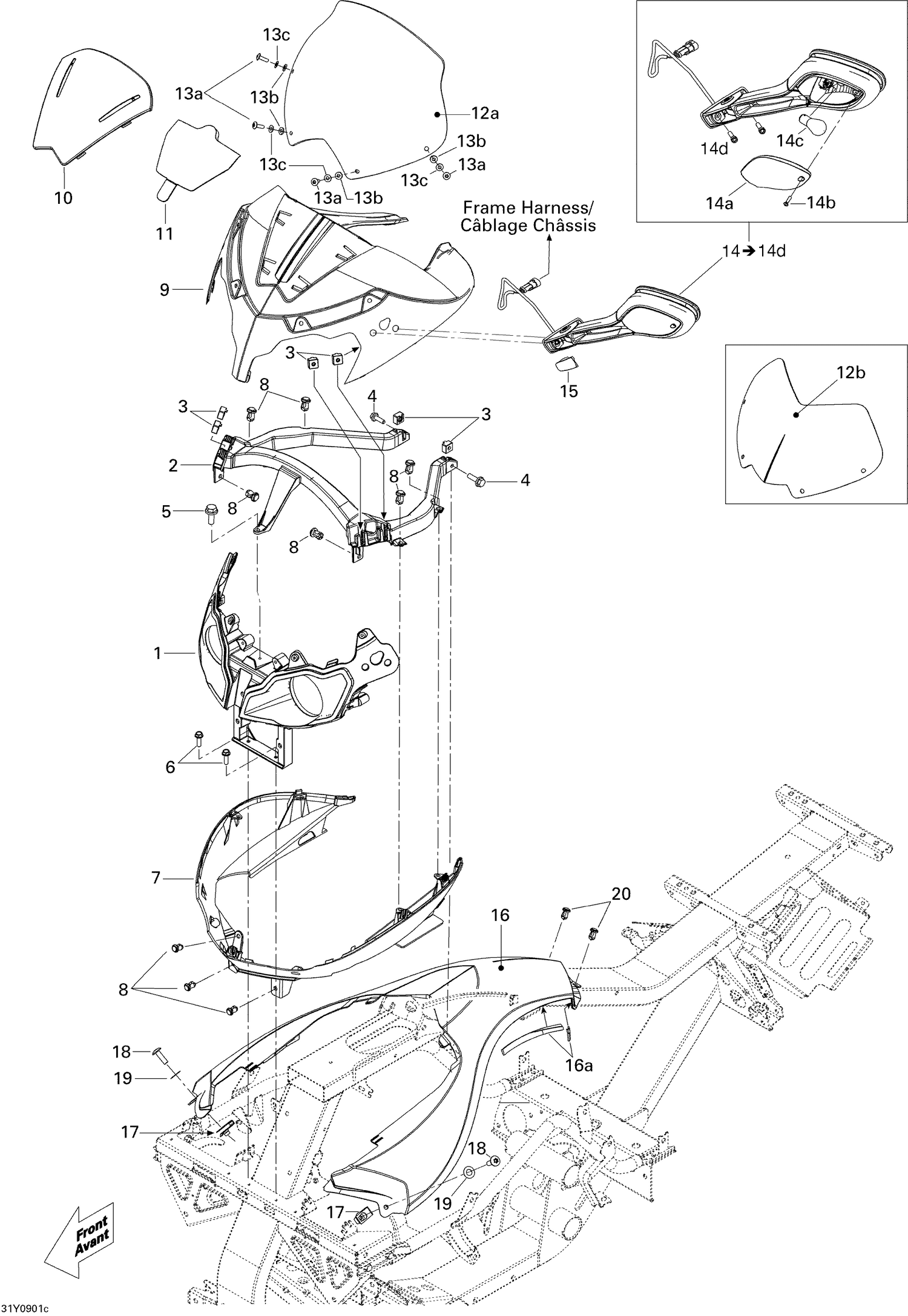

| Ref | Part Number | Description |
|---|
| 1 |
705004795 |
BLACK UPPER HEADLAMP - Call your local BRP dealership This part replaces 705003035. |
| 2 |
705001548 |
Console Support |
| 3 |
269500725 |
M6 Nut Housing Ass'y |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 6 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 |
705005882 |
Lower Console This part replaces 705001427. |
| 8 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 9 |
705002082 |
Upper Console |
| 10 |
705002712 |
UPPER CONSOLE DEFLECTOR - Call your local BRP dealership |
| 11 |
705009360 |
Guide Chart This part replaces 705002715. |
| 12a |
705002939 |
WINDSHIELD - Call your local BRP dealership |
| 13a |
250000350 |
Torx Truss Screw M6 X 20 |
| 13b |
250200024 |
Rubber Washer 5 mm |
| 13c |
234062670 |
Stainless Steel Flat Washer |
| 14a |
219800047 |
LH MIRROR LENS - Call your local BRP dealership |
| 14a |
219800048 |
RH MIRROR LENS - Call your local BRP dealership |
| 14b |
219800049 |
SCREW M3.9 X 19 - Call your local BRP dealership |
| 14c |
219800046 |
BULB 12V 21W, AMBER - Call your local BRP dealership |
| 14d |
250000417 |
ALLEN SCREW M6 X 30 - Call your local BRP dealership |
| 15 |
705002704 |
LH MIRROR CAP - Call your local BRP dealership |
| 15 |
705002705 |
RH MIRROR CAP - Call your local BRP dealership |
| 16a |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 17 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 18 |
250000350 |
Torx Truss Screw M6 X 20 |
| 19 |
705003207 |
Plastic Washer |
