Home / BRP / JOHNSON / 1977 / 70 / 70EL77S 1977 / INTAKE MANIFOLD

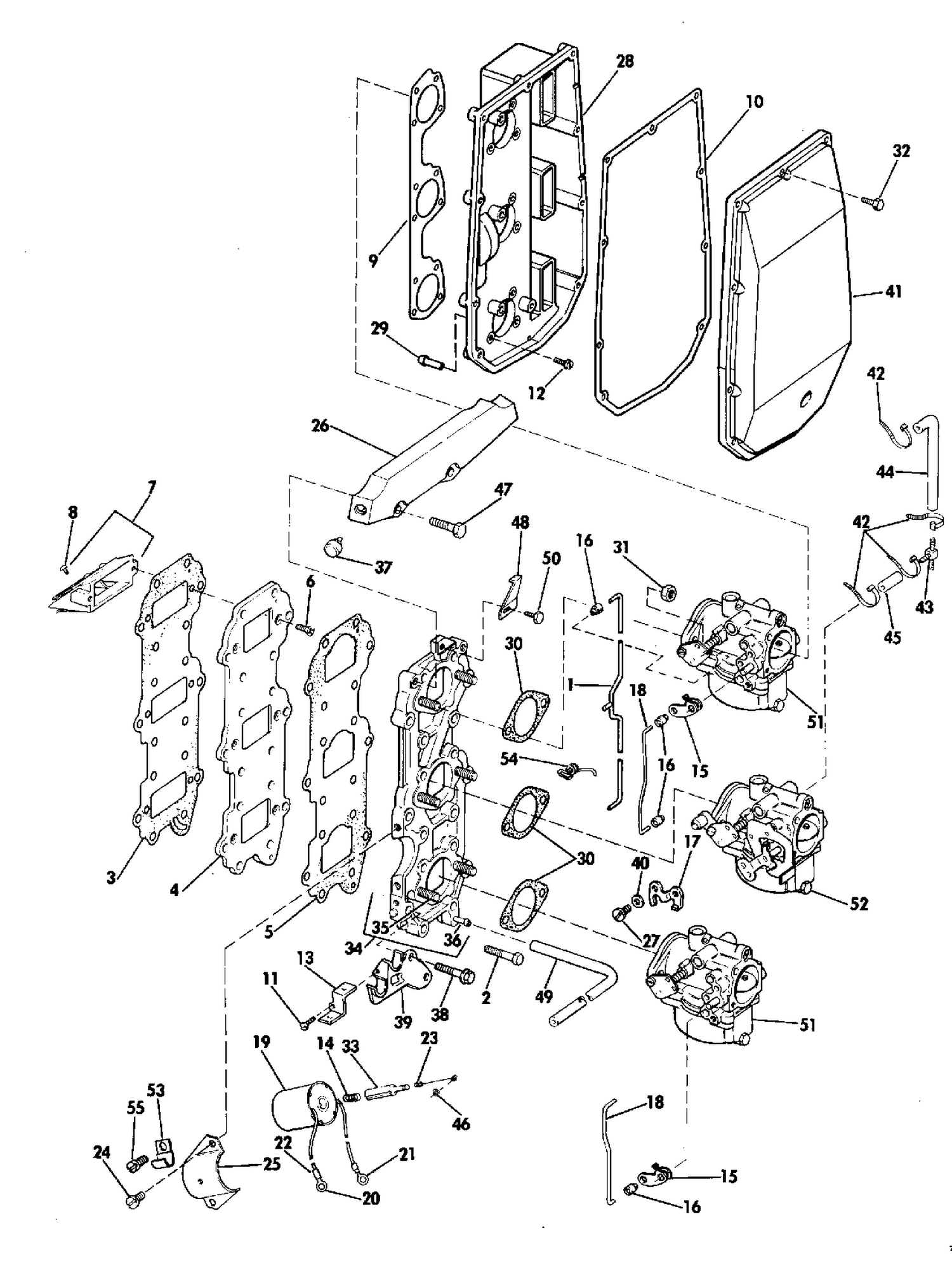

INTAKE MANIFOLD

INTAKE MANIFOLD

Parts (41)

RefPart NumberDescription
1 0432271 LINK & PIN, Middle arm This part replaces 0387338.
2 0554306 SCREW, Cyl. to crankcase
3 0326926 GASKET, Plat to manifold This part replaces 0317307.
4 0317306 BASE, Leaf plate
5 0317305 GASKET, Manifold to base
6 0307609 SCREW
7 0389731 LEAF PLATE ASSEMBLY This part replaces 0386798.
9 0333008 GASKET, Air silencer This part replaces 0321793.
10 0321794 GASKET, Air silencer cover
11 0310626 SCREW, Retainer
12 0327794 SCREW, Base to carburetor This part replaces 0323044.
13 0320180 RETAINER, Trunnion
14 0314739 SPRING, Plunger to solenoid
15 0378984 ARM & SCREW
16 0313329 LOCKWASHER, Carburetor link
17 0321071 LEVER, Throttle adjustment
18 0314310 LINK, Carburetor choke
19 0581748 SOLENOID ASSY,Choke,115,140 hp This part replaces 0387288.
23 0314193 SPRING, Choke solenoid
24 0319292 SCREW, Clamp This part replaces 0308762.
25 0314327 CLAMP, Choke solenoid
26 0339776 BRACKET, Engine cover This part replaces 0316647.
28 0333009 BASE ASSEMBLY This part replaces 0321744.
30 0325092 GASKET This part replaces 0314477.
31 0316355 BUT, Carburetor mounting
33 0313636 PLUNGER
34 0386662 MANIFOLD, Intake
37 0314021 BUMBER, Exhaust manifold
38 0316491 SCREW, Anchor block to manifold
39 0319760 ANCHOR BLOCK, Trunnion
41 0388264 COVER, Air silencer
42 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
44 0333387 FLEXIBLE, soupape de retenue vers raccord inférieur This part replaces 0319737.
46 0307529 JOINT TORIQUE, galet vers contre-came
47 0306418 VIS, ancrage
48 0332682 TIMING POINTER This part replaces 0318328.
50 0303212 VIS, collier & capot
51 CARBURETOR ASSEMBLY,Upper and lower
52 CARBURETOR ASSEMBLY,Middle
53 0511514 CLAMP, Cable This part replaces 0317883.
54 0314807 SPRING
