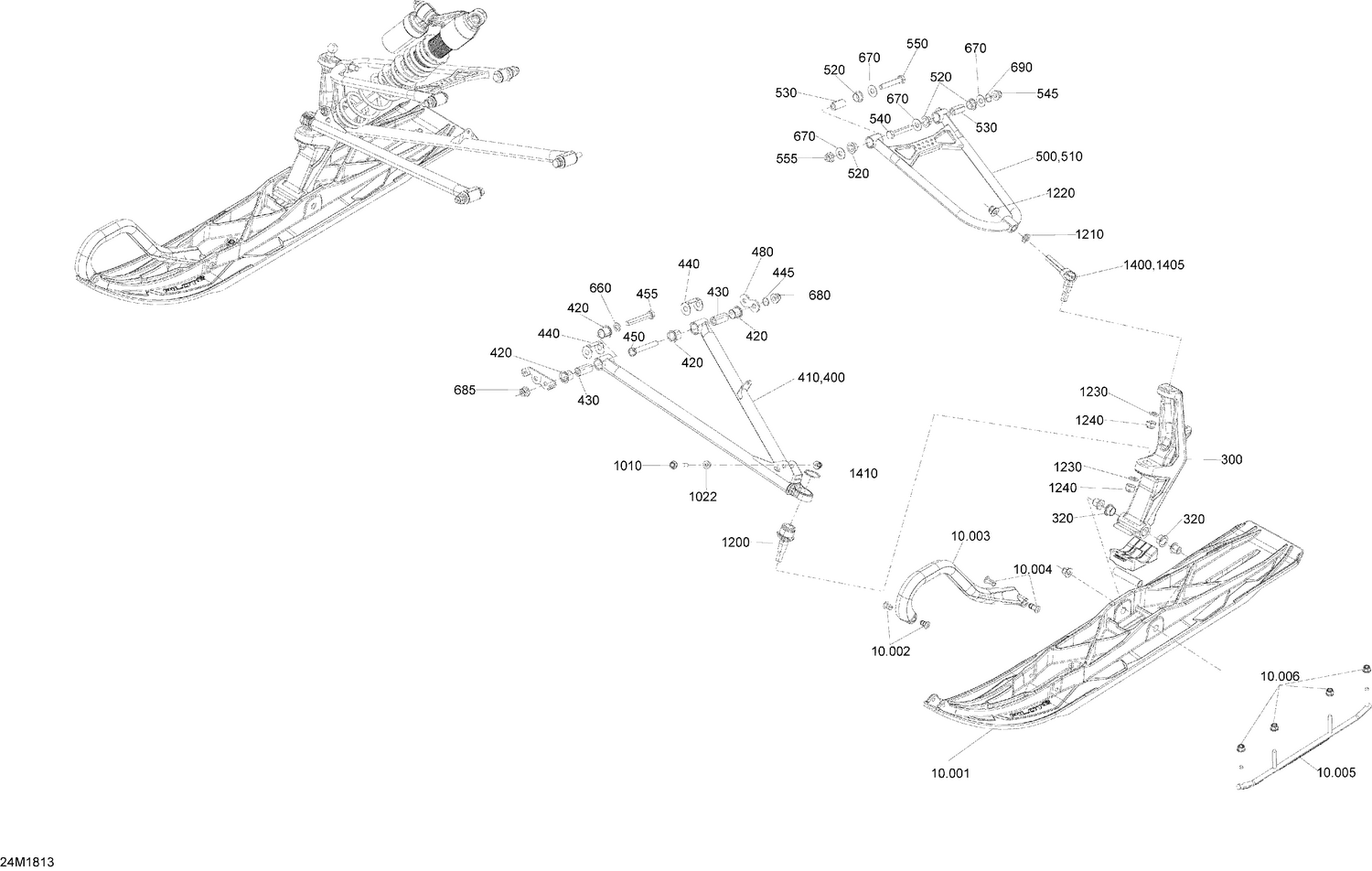

07- Front Suspension And Ski MXZ RS
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 300 | 505074163 | Black, Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 400 | 505074099 | RH Lower Arm |
| 410 | 505074098 | LH Lower Arm |
| 420 | 503191766 | Cushion |
| 430 | 505072401 | Aluminum Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 455 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 480 | 505074424 | Rear Reinforcement |
| 500 | 505074104 | LH Upper Arm |
| 510 | 505074105 | RH Upper Arm |
| 520 | 505073018 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 1010 | 250000824 | Hex. Flange Screw M8 X 58 |
| 1020 | 250000824 | Hex. Flange Screw M8 X 58 |
| 1022 | 505073892 | Spacer |
| 1200 | 505074133 | Ball Joint |
| 1210 | 503189276 | Washer |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1400 | 505072257 | Upper Ball Joint |
| 1405 | 505073561 | Upper Ball Joint This part replaces 505073491. |
