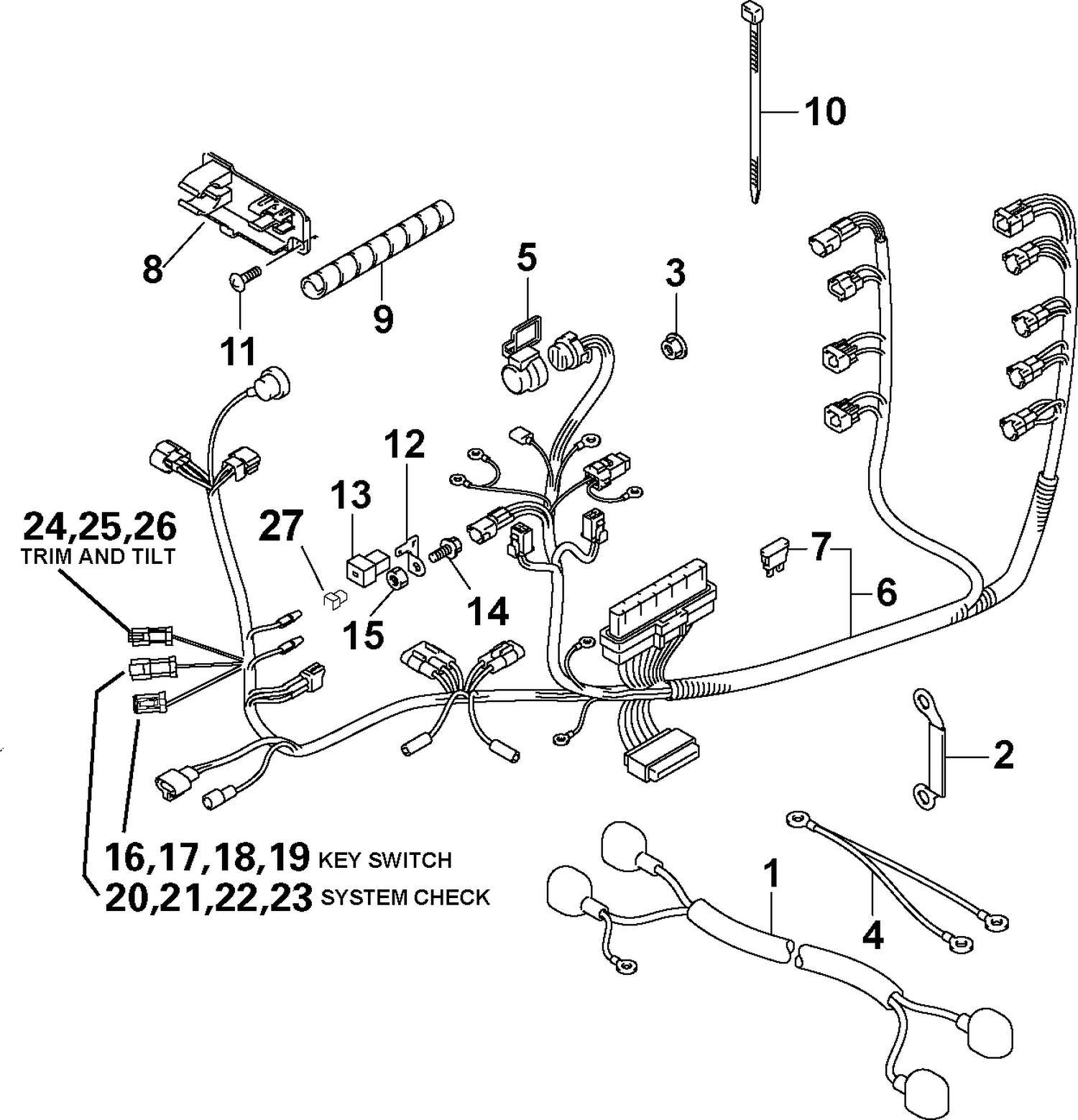

ELECTRICAL HARNESS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5033829 | CABLE Assy |
| 2 | 5033830 | PLATE, TRIM/TILT RELAY Assy |
| 4 | 5033831 | CABLE Assy |
| 5 | 5030800 | CAP |
| 6 | 5033552 | HARNESS Assy |
| 8 | 5033834 | HOLDER |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 5030347. |
| 11 | 5031690 | VIS |
| 12 | 5033835 | TERMINAL, MAIN FUSE |
| 13 | 5033633 | FUSE (60A) |
| 14 | 5034130 | BOLT |
| 15 | 5031020 | NUT |
