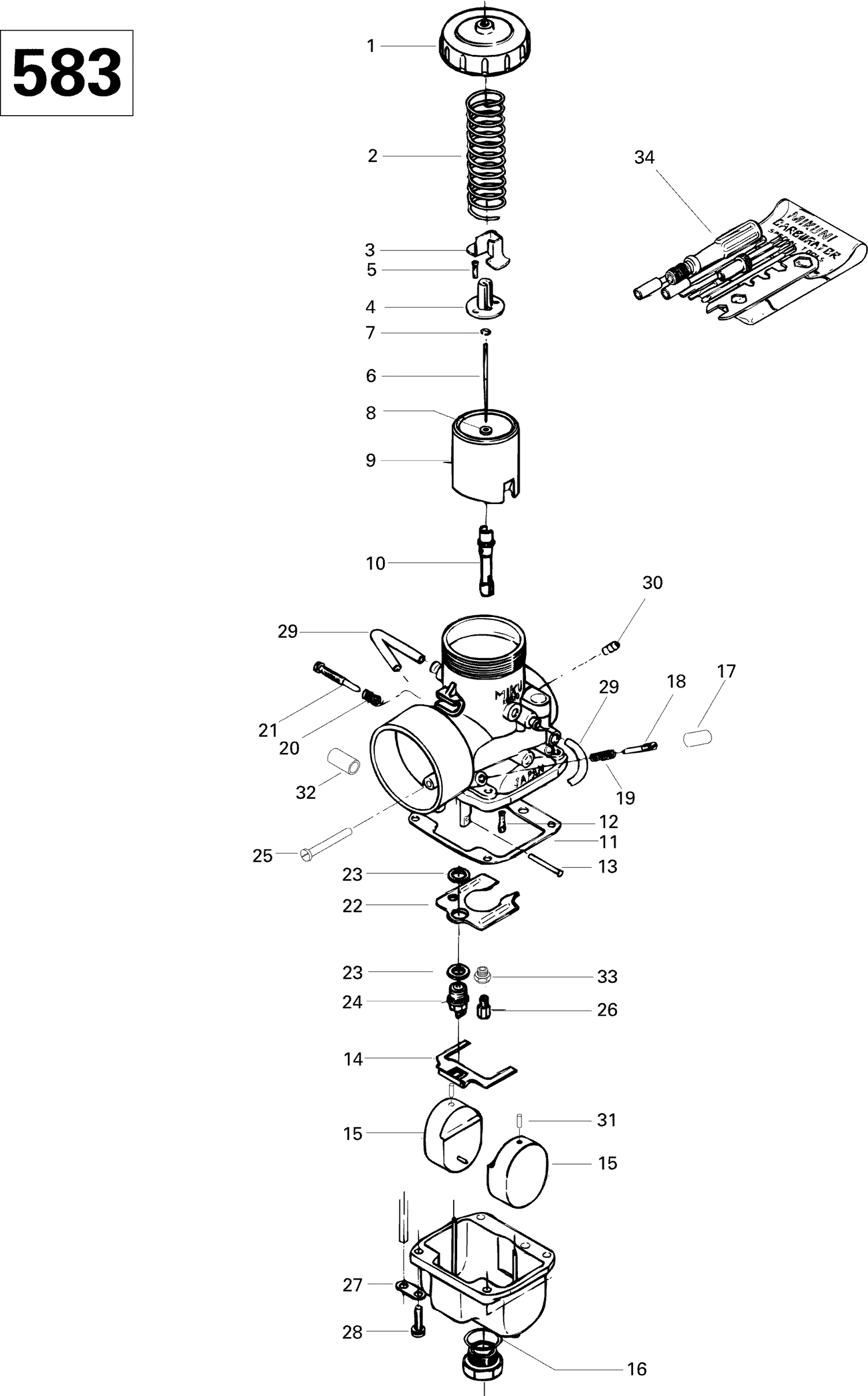

02- Carburetor 583
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404105100 | COVER - Call your local BRP dealership |
| 2 | 404154800 | Spring |
| 3 | 404122100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership This part replaces 404122900. |
| 5 | 404121300 | Screw With Washer |
| 6 | 404157500 | Jet Needle J8 6BGY15 |
| 7 | 404152400 | E-Ring |
| 8 | 404117000 | Packing |
| 9 | 404131300 | Piston Valve CA 2.5 |
| 10 | 404157600 | Needle Jet NJ-480-Q6 |
| 11 | 404104700 | GASKET - Call your local BRP dealership |
| 12 | 404148100 | Pilot Jet PJ 75 |
| 13 | 404103300 | Lever Pin |
| 14 | 404153300 | Float Arm |
| 15 | 404105400 | FLOAT - Call your local BRP dealership |
| 16 | 404101500 | O-RING - Call your local BRP dealership |
| 17 | 404155200 | Cap |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring |
| 21 | 404102800 | IDLE SPEED SCREW - Call your local BRP dealership |
| 22 | Not | Available As Spare Part - Baffle Plate |
| 23 | 404101600 | Seat Washer |
| 24 | 404147400 | Needle Valve 1.5 |
| 25 | 404131700 | Plug Screw |
| 26 | 404101300 | Main Jet MJ 320 (PTO) |
| 26 | 404101400 | Main Jet 330 |
| 27 | 404103000 | PLATE - Call your local BRP dealership |
| 28 | 404102000 | Screw With Lock Washer |
| 29 | 404109800 | Hose |
| 30 | 404127600 | NIPPLE - Call your local BRP dealership |
| 31 | 404105800 | Cap |
| 32 | 270500095 | Cap This part replaces 404140700. |
| 33 | 404105500 | Guide Screw |
