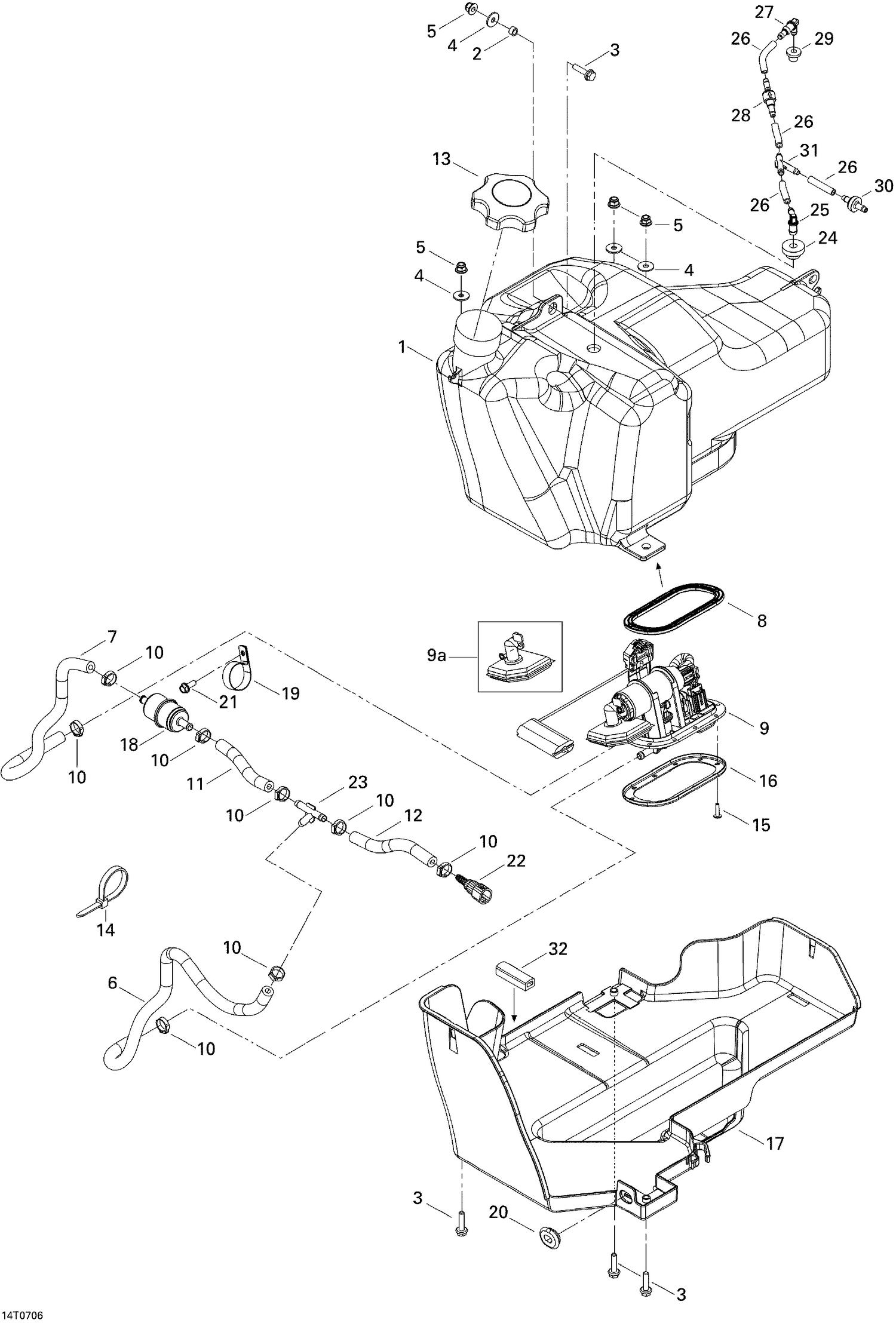

| Ref | Part Number | Description |
|---|
| 1 |
709000084 |
Fuel Tank |
| 2 |
293900104 |
Bushing This part replaces 293900029. |
| 3 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 4 |
250200082 |
Flat Washer This part replaces 391302000. |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
709000516 |
FUEL LINE - Call your local BRP dealership This part replaces 709000142. |
| 7 |
709000516 |
FUEL LINE - Call your local BRP dealership This part replaces 709000142. |
| 8 |
709000540 |
Joint Etanche *Gasket This part replaces 709000109. |
| 9 |
703500771 |
Fuel Pump |
| 9a |
Not |
Available As Spare Part - Filter Kit |
| 10 |
293650046 |
Oetiker Clamp |
| 11 |
709000516 |
FUEL LINE - Call your local BRP dealership This part replaces 709000142. |
| 12 |
709000516 |
FUEL LINE - Call your local BRP dealership This part replaces 709000142. |
| 13 |
513033025 |
Fuel Tank Cap |
| 14 |
414115200 |
Tie-Rap 180 mm |
| 15 |
250000750 |
Torx Screw M4 X 16 This part replaces 250000242. |
| 16 |
709000170 |
Pump Ring This part replaces 709000119. |
| 17 |
709000207 |
TANK PROTECTOR - Call your local BRP dealership This part replaces 709000091. |
| 18 |
513034047 |
Fuel Filter This part replaces 709000100. |
| 19 |
513033047 |
Open Clamp |
| 20 |
705005156 |
Oval Washer |
| 21 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 22 |
709000125 |
Female Quick Fitting Ass'y |
| 23 |
293710136 |
Y-Fitting, 5/16'' This part replaces 293710115. |
| 24 |
293830136 |
Grommet |
| 25 |
414580700 |
Male Connector |
| 26 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 27 |
414580600 |
Elbow Male Connector |
| 28 |
275500505 |
Check Valve |
| 29 |
293720029 |
Grommet |
| 30 |
275500398 |
Check Valve |
| 31 |
293710059 |
Y-Fitting |
