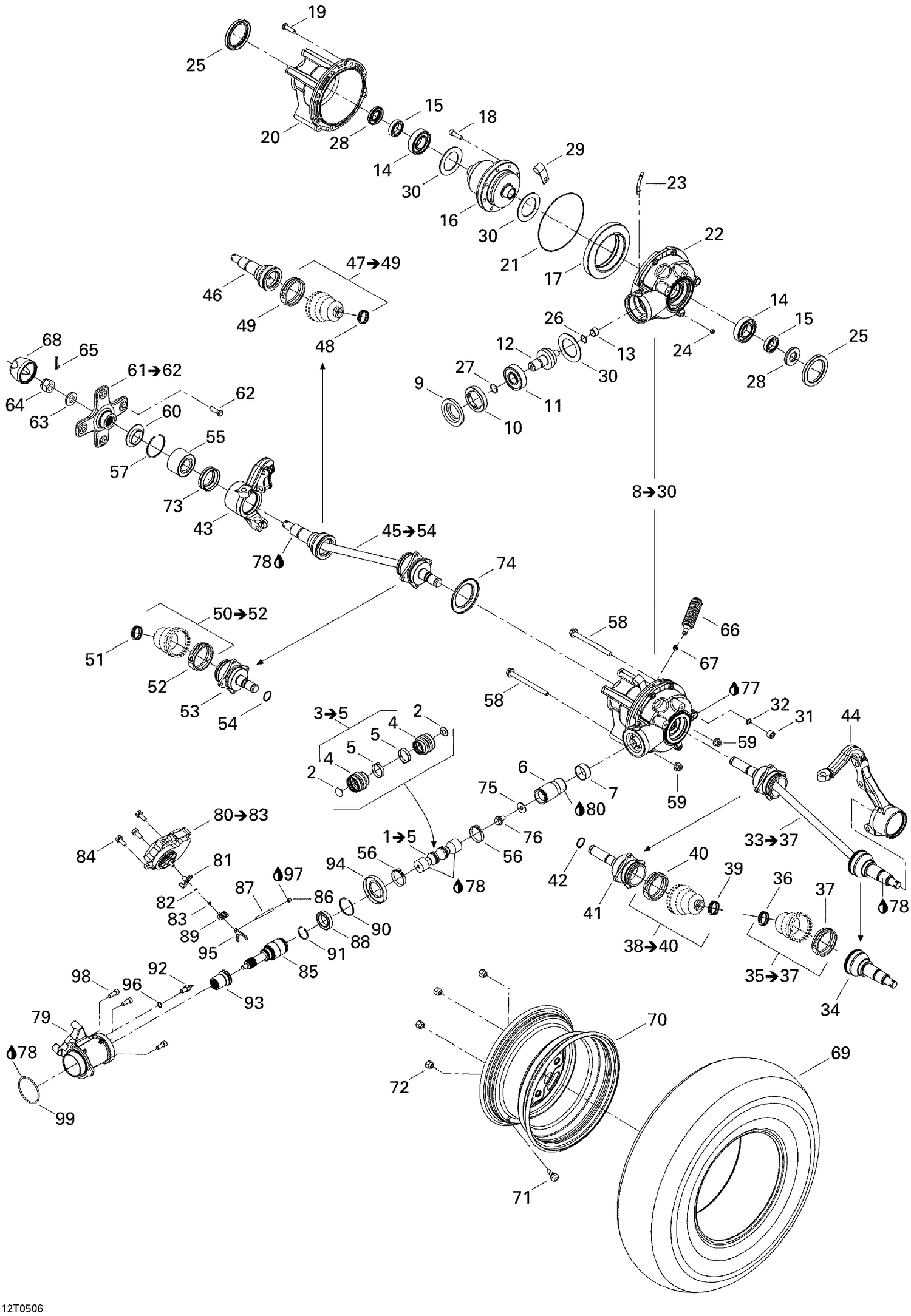

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Stopper |
| 4 |
705400148 |
Collar |
| 5 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 6 |
703500678 |
Front Bushing Shaft Kit This part replaces 705400149. |
| 7 |
705400036 |
Wear Ring |
| 9 |
705401481 |
Oil Seal This part replaces 705400027. |
| 10 |
705401603 |
Nut This part replaces 705500266. |
| 11 |
705500260 |
Ball Bearing |
| 12 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 13 |
705500261 |
Needle Bearing |
| 14 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 15 |
293350044 |
Ball Bearing |
| 16 |
703500871 |
Ens Differentiel*Differential Kit This part replaces 705400212. |
| 17 |
705400192 |
GEAR, 36 TEETH - Call your local BRP dealership |
| 18 |
705400101 |
RING GEAR SCREW - Call your local BRP dealership |
| 19 |
705401601 |
Screw This part replaces 705500264. |
| 20 |
705400133 |
Front Cover |
| 21 |
705500265 |
Seal |
| 22 |
705400261 |
Front Cover |
| 23 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 24 |
705500894 |
Drain Plug This part replaces 705500245. |
| 25 |
293250137 |
Oil Seal |
| 26 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 27 |
705500267 |
O-Ring |
| 28 |
705401618 |
Gasket This part replaces 705500255. |
| 29 |
705600311 |
CLAMP - Call your local BRP dealership |
| 30 |
705401604 |
Shim This part replaces 703500288. |
| 31 |
705500504 |
Fill Level Plug |
| 32 |
705500506 |
Copper Washer |
| 34 |
705400154 |
CV JOINT - Call your local BRP dealership |
| 36 |
705400064 |
CLAMP - Call your local BRP dealership |
| 37 |
705400180 |
Clamp |
| 39 |
705400064 |
CLAMP - Call your local BRP dealership |
| 40 |
705400181 |
Clamp |
| 41 |
705400156 |
RH PLUNGING JOINT - Call your local BRP dealership |
| 42 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 43 |
709400132 |
LH KNUCKLE - Call your local BRP dealership |
| 44 |
709400133 |
RH KNUCKLE - Call your local BRP dealership |
| 46 |
705400154 |
CV JOINT - Call your local BRP dealership |
| 48 |
705400064 |
CLAMP - Call your local BRP dealership |
| 49 |
705400180 |
Clamp |
| 51 |
705400064 |
CLAMP - Call your local BRP dealership |
| 52 |
705400181 |
Clamp |
| 53 |
705400155 |
PLUNGING JOINT - Call your local BRP dealership |
| 54 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 55 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 56 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 57 |
293370019 |
Circlip |
| 58 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 59 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 60 |
705501121 |
Wear Sleeve This part replaces 705500564. |
| 62 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 63 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 64 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 65 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 66 |
705400552 |
Rubber Bellow This part replaces 705400066. |
| 67 |
293750001 |
Tie Wrap 94 mm |
| 68 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 72 |
250100042 |
Steel Wheel Nut |
| 73 |
293250090 |
Oil Seal |
| 74 |
705400179 |
WEAR SLEEVE - Call your local BRP dealership |
| 75 |
250200014 |
Flat Washer M10 |
| 76 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 77 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 78 |
293550010 |
Synthetic Grease, 400 G |
| 79 |
705400169 |
HOUSING - Call your local BRP dealership |
| 81 |
705400274 |
Fork |
| 82 |
293370042 |
Circlip |
| 83 |
293300108 |
O-Ring |
| 84 |
250000137 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 85 |
705400917 |
UNION SHAFT - Call your local BRP dealership This part replaces 705400172. |
| 86 |
206580890 |
Pressure Screw M8 X 8 |
| 87 |
250400025 |
Dowell Pin |
| 88 |
705400249 |
Ball Bearing |
| 89 |
705402139 |
Slider This part replaces 705400175. |
| 90 |
293370029 |
Circlip |
| 91 |
293370030 |
Circlip |
| 92 |
710000324 |
SWITCH - Call your local BRP dealership |
| 93 |
705400389 |
Coupling Sleeve |
| 94 |
293250138 |
Oil Seal |
| 95 |
705401553 |
Shifter Lever Plate This part replaces 705400387. |
| 96 |
705601628 |
Copper Washer This part replaces 705600310. |
| 97 |
293800060 |
Loctite 243, 10 ml |
| 98 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
