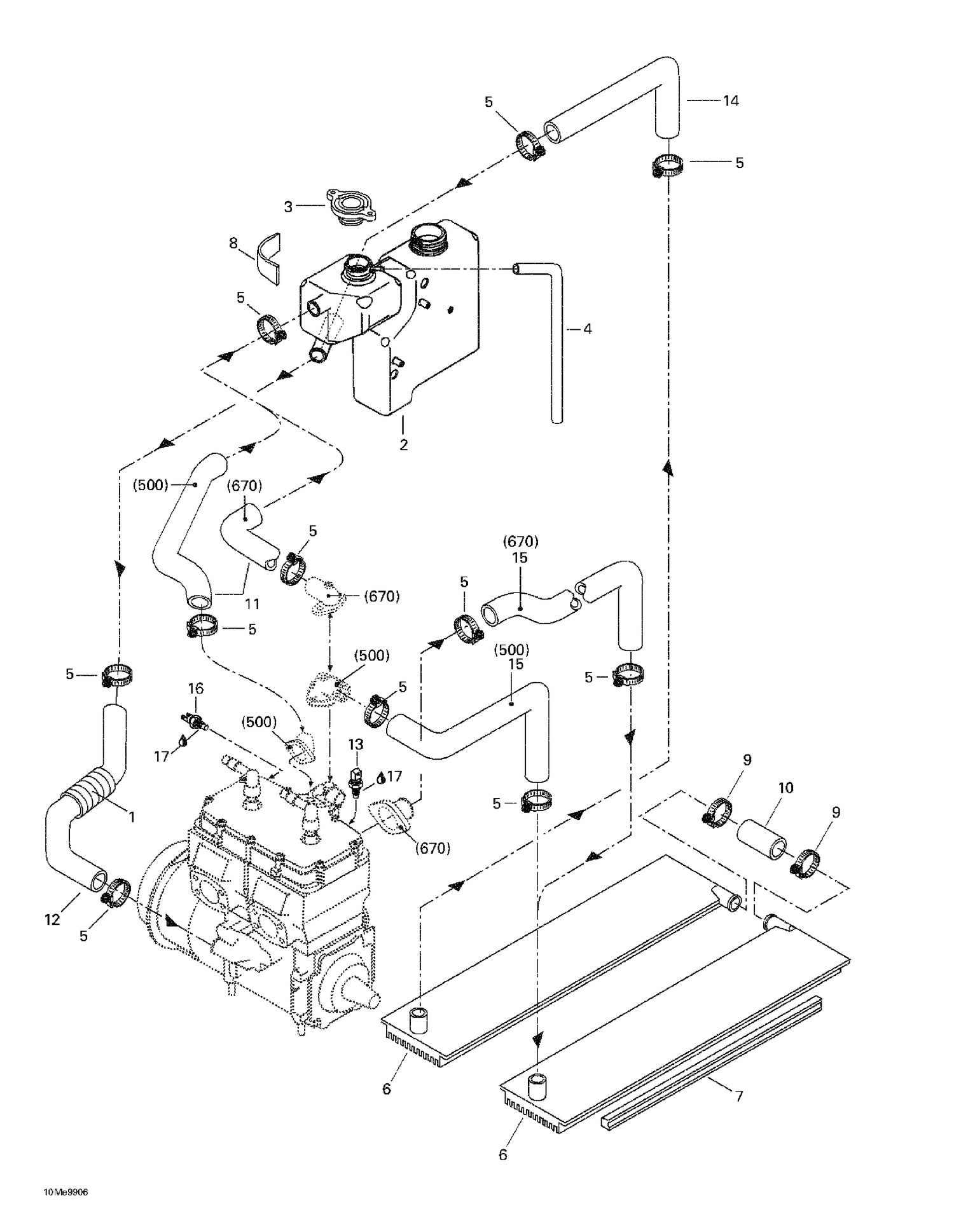

01- Cooling System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704413 | Was 415084700 Protective Shield |
| 2 | 519000014 | Coolant Tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 7 | 415012300 | RADIATOR PROTECTOR - Call your local BRP dealership |
| 9 | 408803400 | Clamp Tridon |
| 10 | 414795800 | Radiator Hose |
| 12 | 415010400 | Engine Inlet Hose |
| 14 | 414973000 | Radiator Outlet Hose |
| 16 | 512047000 | Temperature Sensor |
| 517290711 | LH | Radiator 517290711 |
| 517290711 | Radiateur | GA 517290711 |
