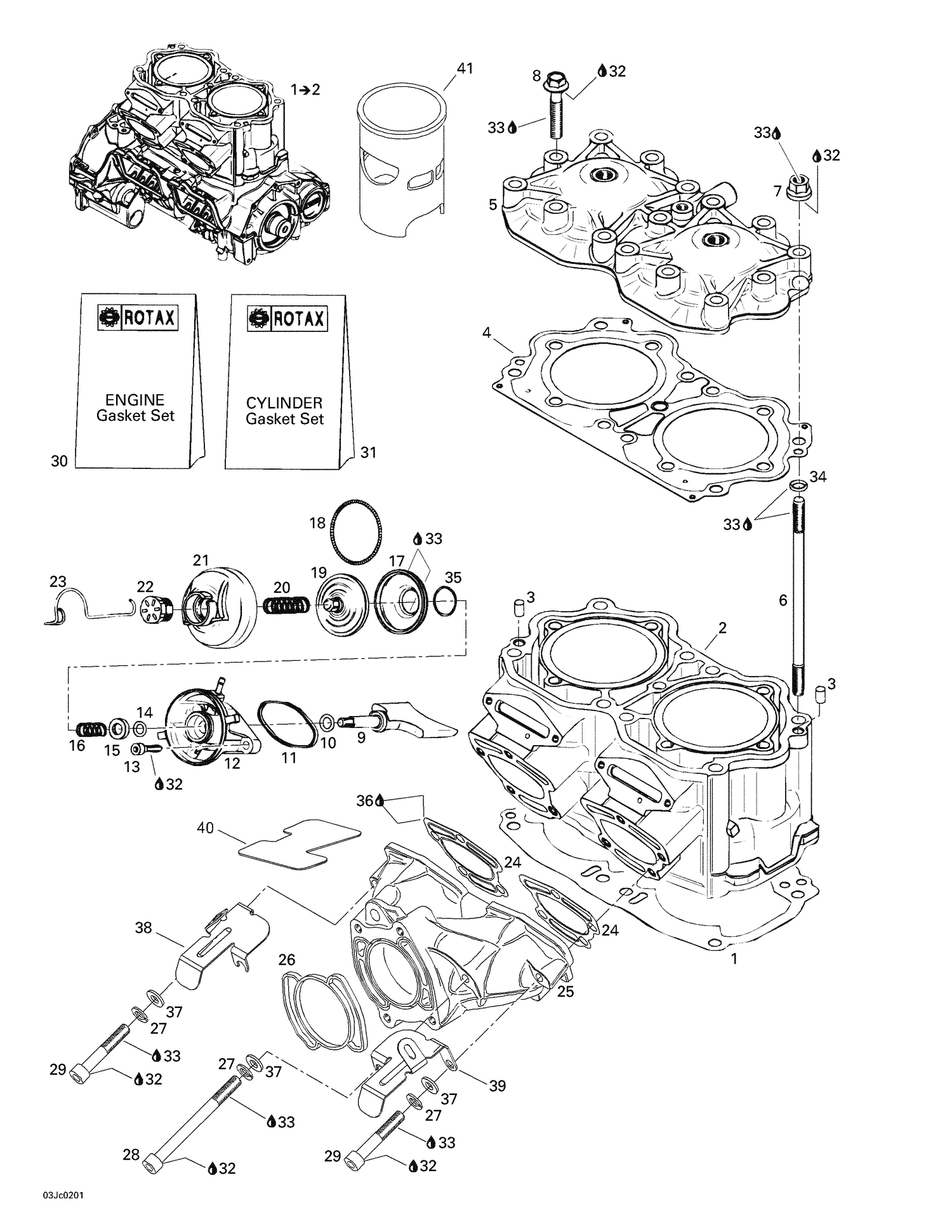

| Ref | Part Number | Description |
|---|
| 1 |
420931907 |
GASKET CYLINDER 0.8 MM - Call your local BRP dealership This part replaces 290931902. |
| 1 |
421000562 |
REBUILD-CRANKCASE-CYLINDER PACKAGE 947 - Call your local BRP dealership |
| 2 |
290613561 |
Cylinder with Sleeve (Silver) |
| 2 |
421000561 |
REBUILD-CYLINDER-947 2000 - Call your local BRP dealership |
| 3 |
420632010 |
Center Pin 8 X 12 This part replaces 290632010. |
| 4 |
420931702 |
CYLINDER HEAD GASKET 947 - Call your local BRP dealership This part replaces 290931702. |
| 5 |
290923921 |
Head Cylinder (Silver) |
| 6 |
290640232 |
STUD M10 X 200 - Call your local BRP dealership |
| 7 |
290842863 |
Stud Nut M10 |
| 8 |
290841708 |
Screw Hex. Flange M10 x 60 |
| 9 |
290854410 |
Exhaust Valve |
| 10 |
420931765 |
O-Ring This part replaces 290931765. |
| 11 |
290931670 |
Rubber Gasket |
| 12 |
290854435 |
Valve Housing |
| 13 |
205062560 |
Socket Head Screw M6 X 25 |
| 14 |
420931765 |
O-Ring This part replaces 290931765. |
| 15 |
290926220 |
Support Ring |
| 16 |
420838260 |
COMPRESSION SPRING - Call your local BRP dealership This part replaces 290838260. |
| 17 |
420260723 |
Exhaust Bellows This part replaces 290260723. |
| 18 |
420939281 |
Hose Spring This part replaces 290239048. |
| 19 |
290854446 |
Exhaust Valve |
| 20 |
290939137 |
Compression Spring |
| 21 |
420911559 |
Valve Cover This part replaces 290911558. |
| 22 |
420241221 |
Adjuster Screw |
| 23 |
420838083 |
SPRING CLIP - Call your local BRP dealership |
| 24 |
420931653 |
EXHAUST MANIFOLD GASKET - Call your local BRP dealership |
| 25 |
420979607 |
Exhaust Manifold This part replaces 290979606. |
| 26 |
290931990 |
Exhaust Gasket |
| 27 |
234101601 |
Helicoidal Lock Washer M10 |
| 28 |
290941483 |
Socket Head Screw M10 x 110 |
| 29 |
205006060 |
SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership |
| 30 |
290889150 |
Engine Gasket Set (Not Shown) |
| 31 |
290889155 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
413707000 |
Dow Corning 111, 150 g |
| 34 |
290850460 |
O-RING - Call your local BRP dealership |
| 35 |
420838255 |
Hose Spring This part replaces 420838253. |
| 37 |
234000600 |
Flat Washer 10 mm, Stainless |
| 38 |
273000170 |
DUCT SUPPORT, MAG - Call your local BRP dealership |
| 39 |
273000169 |
Duct Support, PTO |
| 40 |
273000165 |
PROTECTOR PAD - Call your local BRP dealership |
| 290931900 |
Gasket |
Cylinder 0.5 mm 290931900 |
| 290931901 |
Gasket |
Cylinder 0.6 mm 290931901 |
