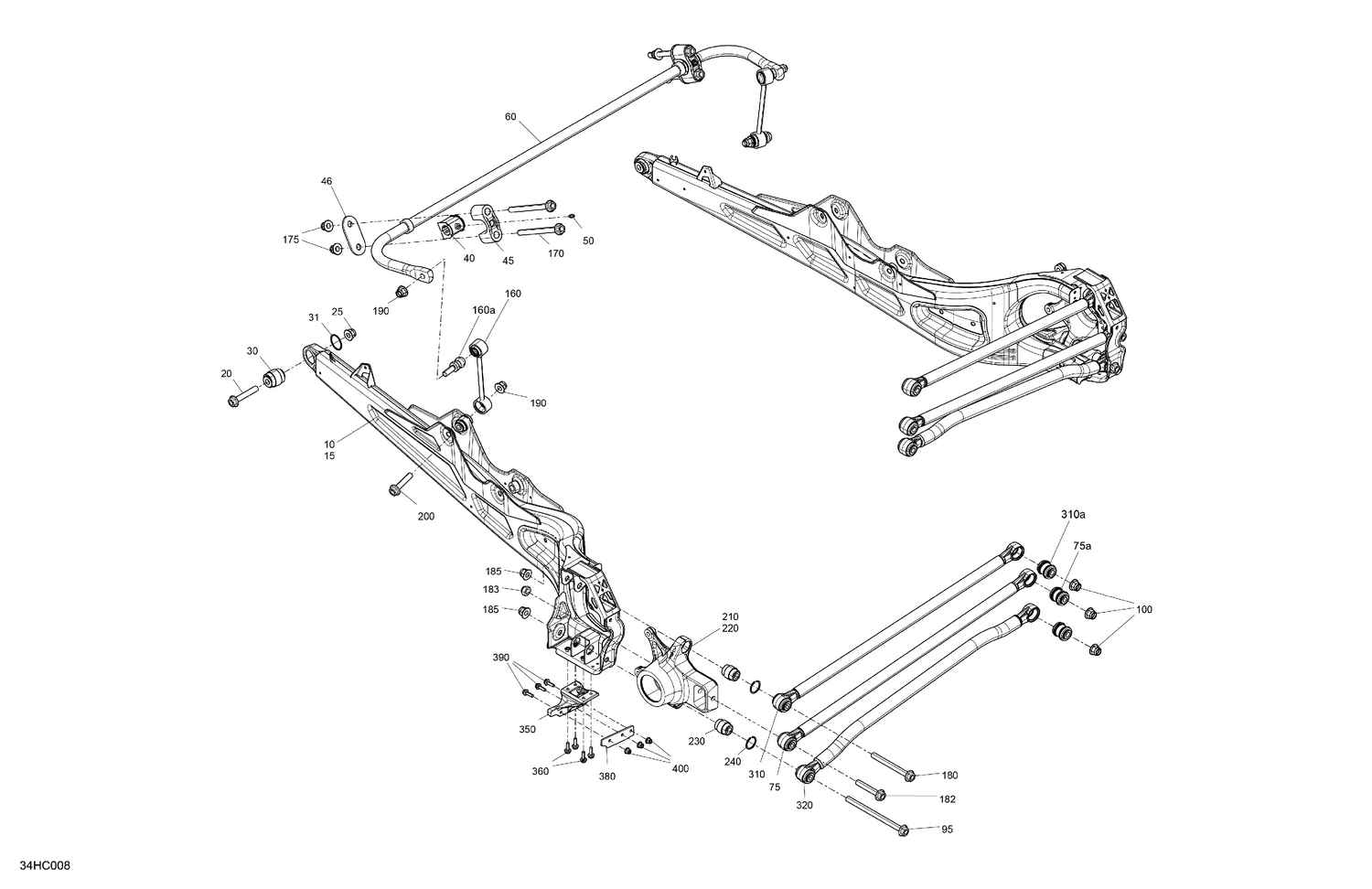

05- Suspension - Rear Components - 72in
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706004609 | Magma Red, LH Rear Suspension Arm |
| 15 | 706004610 | Magma Red, RH Rear Suspension Arm |
| 20 | 250000858 | Hex. Flange Screw M12 X 70 |
| 25 | 250001195 | Elastic Flange Nut M12 |
| 30 | 706001373 | Radial Joint |
| 31 | 293370093 | Retaining Ring |
| 40 | 706004264 | Stabilizer Bar Bushing |
| 45 | 706002303 | Clamp |
| 46 | 706002357 | Support Plate |
| 50 | 408200700 | Grease Fitting |
| 60 | 706002100 | Stabilizer Bar Ass'y |
| 75a | 706002135 | Radial Joint |
| 95 | 250000862 | Screw Flange M12 X 175 |
| 100 | 250001195 | Elastic Flange Nut M12 |
| 160a | 706002135 | Radial Joint |
| 170 | 250000861 | Flange Screw M12 X 145 |
| 175 | 250001195 | Elastic Flange Nut M12 |
| 180 | 250000860 | Screw Flange M12 X 115 |
| 182 | 250000974 | Hex. Flange Screw DIN.6921 M12X1.75X80 |
| 183 | 250001195 | Elastic Flange Nut M12 |
| 185 | 250001195 | Elastic Flange Nut M12 |
| 190 | 250001195 | Elastic Flange Nut M12 |
| 200 | 250000857 | Flange Screw M12 X 60 |
| 210 | 706005410 | LH Rear Knuckle This part replaces 706005308. |
| 220 | 706005411 | RH Rear Knuckle This part replaces 706005309. |
| 230 | 706002317 | Radial Joint |
| 240 | 293370118 | Retaining Ring |
| 310a | 706002135 | Radial Joint |
| 320 | 706002964 | Control Link |
| 350 | 706004265 | Deflector |
| 360 | 207662044 | Hex. Flange Screw M6 X 20 |
| 380 | 706002851 | Wear Plate |
| 390 | 207662044 | Hex. Flange Screw M6 X 20 |
