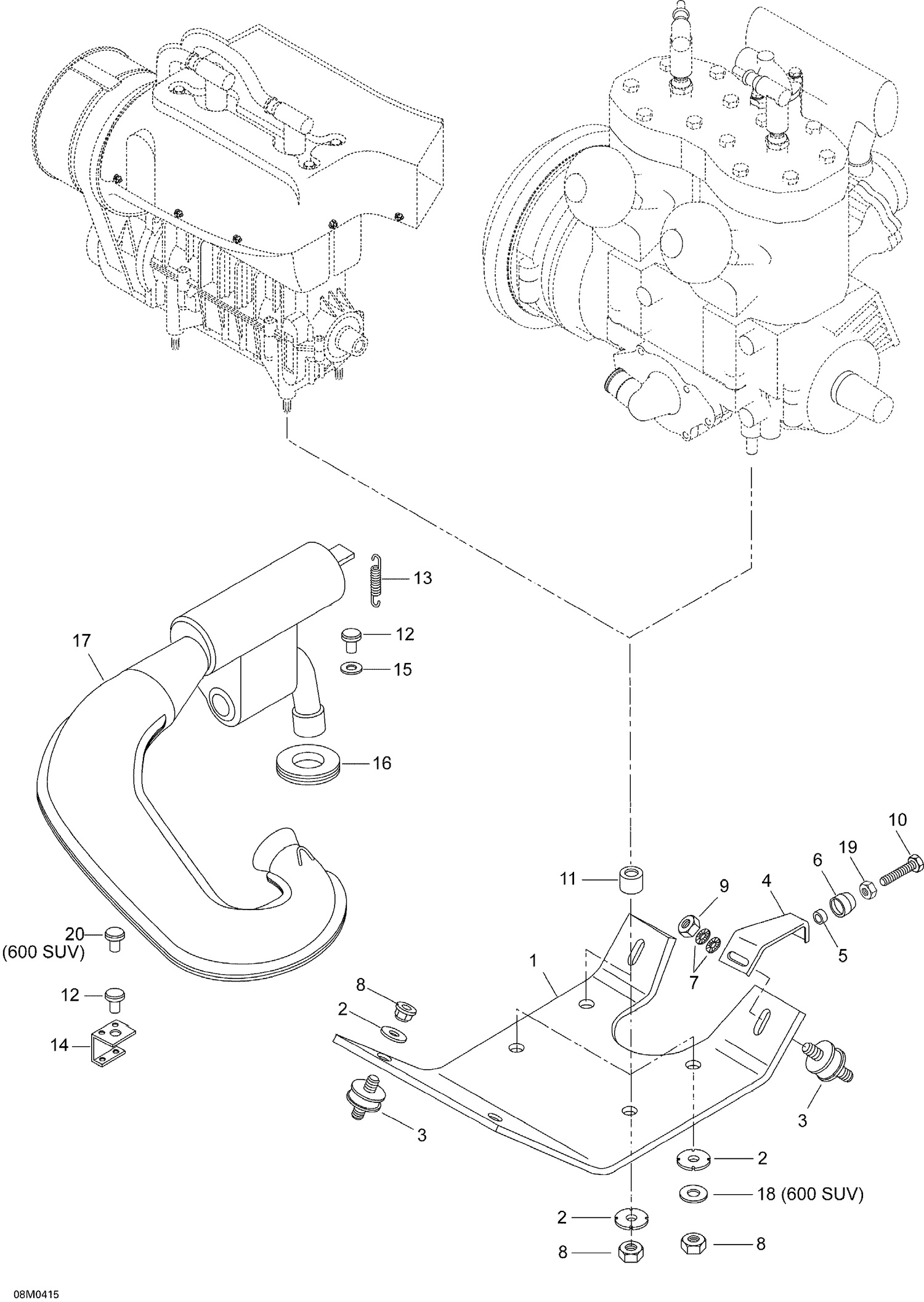

01- Engine Assembly And Support
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 4 | M539902 | Support |
| 5 | M2846014 | Rubber Washer |
| 7 | 20068 | Lock Washer D10 This part replaces M20068. |
| 8 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 9 | 232006414 | Hex. Nut M10 X 1.5 |
| 10 | M40121 | Hex. Screw M8 X 25 |
| 11 | M5446347 | SLEEVE - Call your local BRP dealership |
| 16 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 19 | M33003 | NUT - Call your local BRP dealership |
