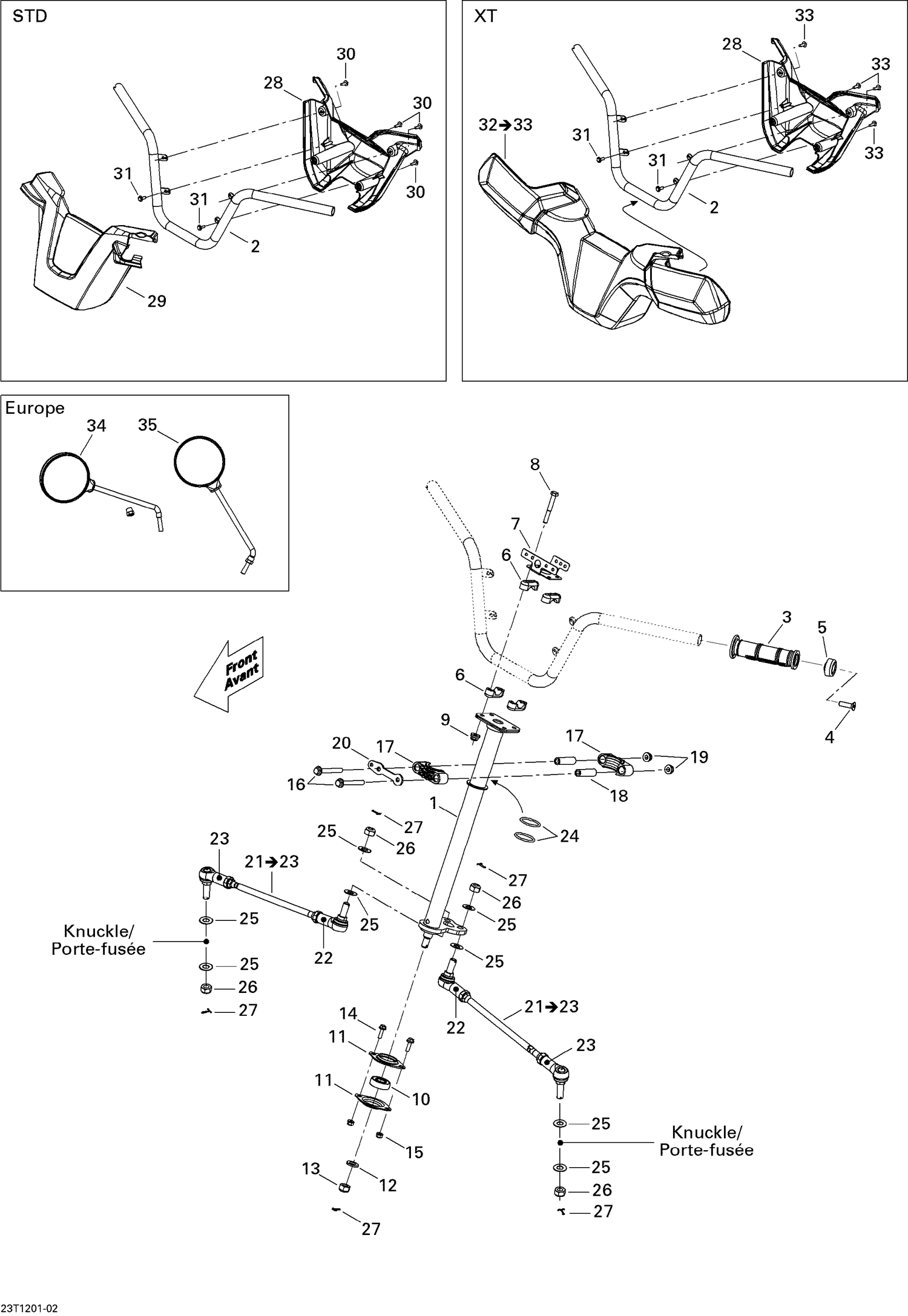

07- Steering
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709401056 | Main Tube |
| 2 | 709401237 | Steering This part replaces 709401041. |
| 3 | 709400493 | Handle Grip |
| 4 | 205883046 | SOCKET HEAD SCREW, M8 - Call your local BRP dealership |
| 5 | 709400868 | END PIECE - Call your local BRP dealership |
| 6 | 709400919 | Steering Support |
| 7 | 709400586 | Connector Bracket |
| 8 | 207086046 | Hex. Screw M8 X 60 |
| 9 | 233281416 | Hex. Elastic Flange Nut M8 |
| 10 | 709400439 | Ball Bearing |
| 11 | 709400152 | FLANGE, BEARING - Call your local BRP dealership |
| 12 | 234021410 | Flat Washer 12 mm |
| 13 | 250000047 | Hex. Flange Elastic Nut M12 |
| 14 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 207687044 | Hex. Flange Screw M8 X 70 |
| 17 | 709400471 | Half Bushing |
| 18 | 709400072 | BUSHING - Call your local BRP dealership |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 709400053 | STOPPER PLATE - Call your local BRP dealership |
| 22 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 23 | 709400487 | Ball Joint, RH Threads |
| 24 | 293300068 | O-Ring |
| 25 | 706200281 | Hardened Washer |
| 26 | 250100099 | Nut M12 |
| 27 | 211400013 | Cotter Pin |
| 28 | 709400313 | BLACK REAR STEERING COVER - Call your local BRP dealership |
| 31 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 33 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
