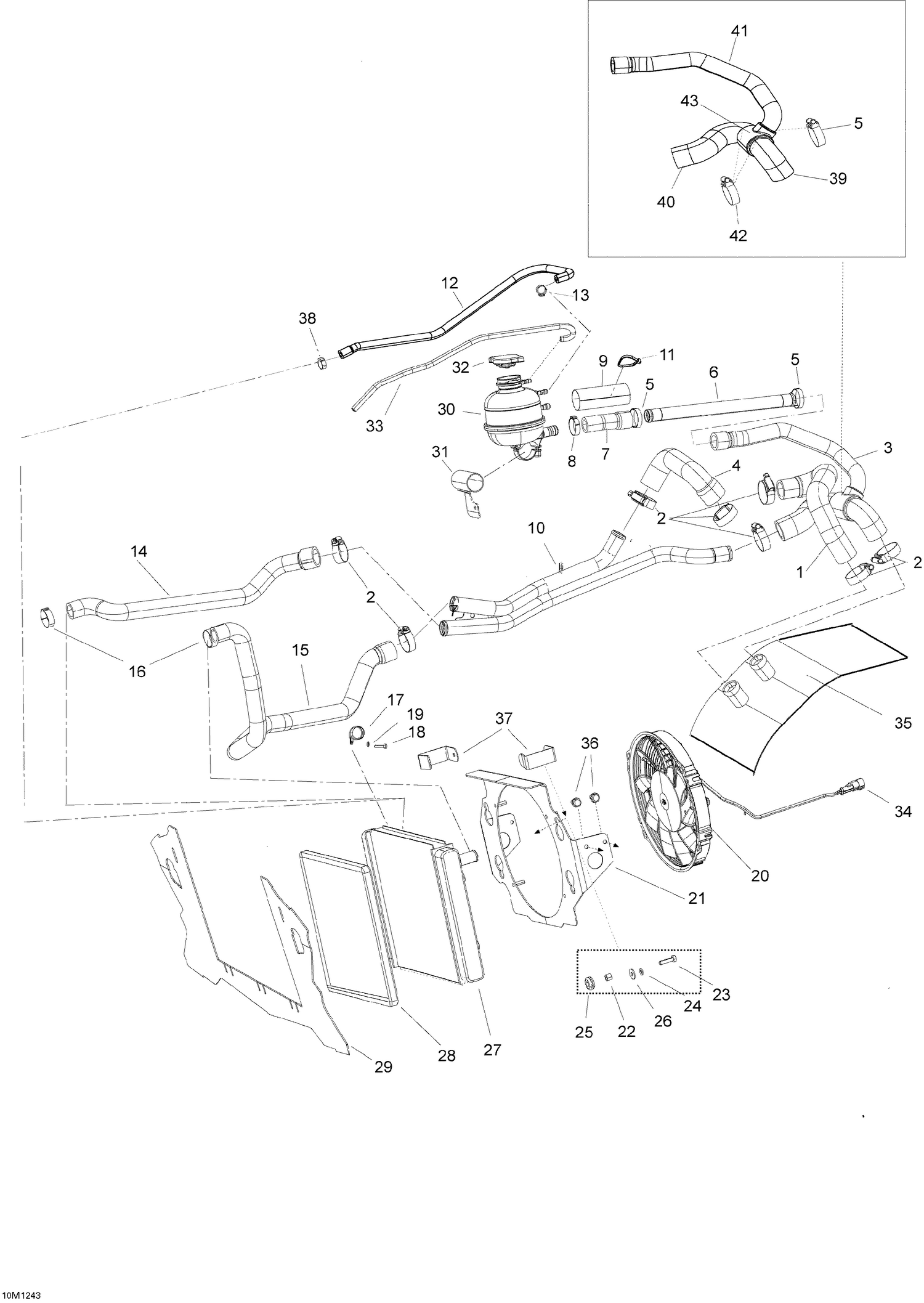

| Ref | Part Number | Description |
|---|
| 1 |
509000762 |
HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 3 |
Not |
Available As Spare Part - Hose Ass'y |
| 4 |
509000932 |
Engine Outlet Hose This part replaces 509000564. |
| 5 |
293650099 |
Crimp Clamp |
| 6 |
509000644 |
PIPE - Call your local BRP dealership |
| 7 |
509000698 |
HOSE - Call your local BRP dealership |
| 8 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 9 |
707001349 |
Protector Tube This part replaces 509000730. |
| 10 |
509000800 |
Water Pipe |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
509000750 |
BREATHER HOSE - Call your local BRP dealership |
| 13 |
293650047 |
Crimp Clamp, 15.3-706R |
| 14 |
509000707 |
HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership |
| 15 |
509001000 |
Air Radiator Hose This part replaces 509000706. |
| 16 |
293650099 |
Crimp Clamp |
| 17 |
605627008 |
Clamp With Rubber D=30 |
| 18 |
207162544 |
Hex. Screw M6 X 25 |
| 19 |
234161471 |
Lock Washer M6, Black This part replaces M20052. |
| 20 |
509000838 |
Cooling Fan |
| 21 |
509000791 |
Radiator support |
| 22 |
605453745 |
Bushing |
| 23 |
207162544 |
Hex. Screw M6 X 25 |
| 24 |
234161471 |
Lock Washer M6, Black This part replaces M20052. |
| 25 |
709000582 |
Grommet This part replaces 293720053. |
| 26 |
234062410 |
Flat Washer 6 mm |
| 27 |
509000787 |
Radiator |
| 28 |
509000718 |
Insulation |
| 29 |
509000784 |
AIR DEFLECTOR LTS - Call your local BRP dealership |
| 30 |
509000421 |
Coolant Tank |
| 31 |
509000782 |
Tank Support |
| 32 |
509000180 |
Radiator Pressure Cap |
| 33 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 34 |
278000220 |
Male Connector, 2 Circuits |
| 35 |
509000645 |
Radiator Tunnel |
| 36 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870. |
| 37 |
509000703 |
Deflector Clip |
| 38 |
293650053 |
Crimp Clamp |
| 39 |
509000828 |
HOSE - TUNNEL RAD - T-FITTING - Call your local BRP dealership |
| 40 |
509000829 |
HOSE - T-TITTING - COOLANT PUMP - Call your local BRP dealership |
| 41 |
509000830 |
HOSE - T-TITTING - COOLANT TANK - Call your local BRP dealership |
| 42 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
