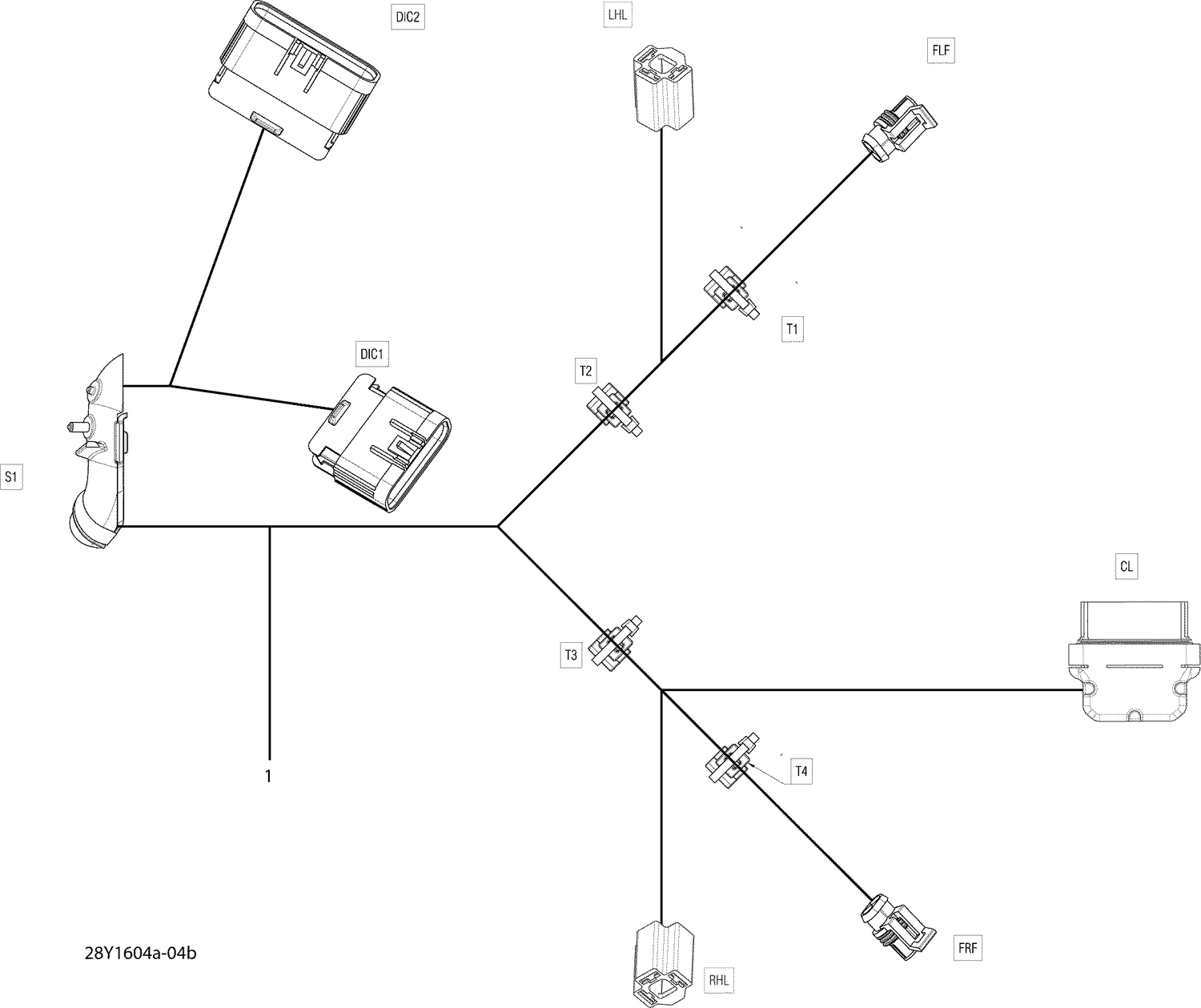

10- Electrical Harness - Console - Package Standard-S-Special - North America
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| CL | 515175801 | Female Housing, 24 Circuits |
| CL | 515175802 | Retainer Block |
| CL | 515175803 | Wire Seal |
| CL | 515175806 | Female Terminal |
| CL | 515175812 | Plug |
| CL | 710000399 | Female Housing |
| CL | 710001131 | Female Terminal |
| DIC1 | 710001224 | Terminal |
| DIC1 | 710001225 | Cap |
| DIC1 | 710001227 | Housing |
| DIC1 | 710001233 | Seal |
| DIC2 | 278002186 | Wire Seal |
| DIC2 | 710001856 | Housing |
| DIC2 | 710001857 | Terminal |
| DIC2 | 710001859 | Terminal |
| DIC2 | 710002075 | Plug |
| DIC2 | 710003153 | Seal |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| LHL | 515176908 | Female Housing |
| LHL | 515176909 | Terminal |
| RHL | 515176908 | Female Housing |
| RHL | 515176909 | Terminal |
| T1 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| T2 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| T3 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 1 | 710004986 | Dashboard Harness |
