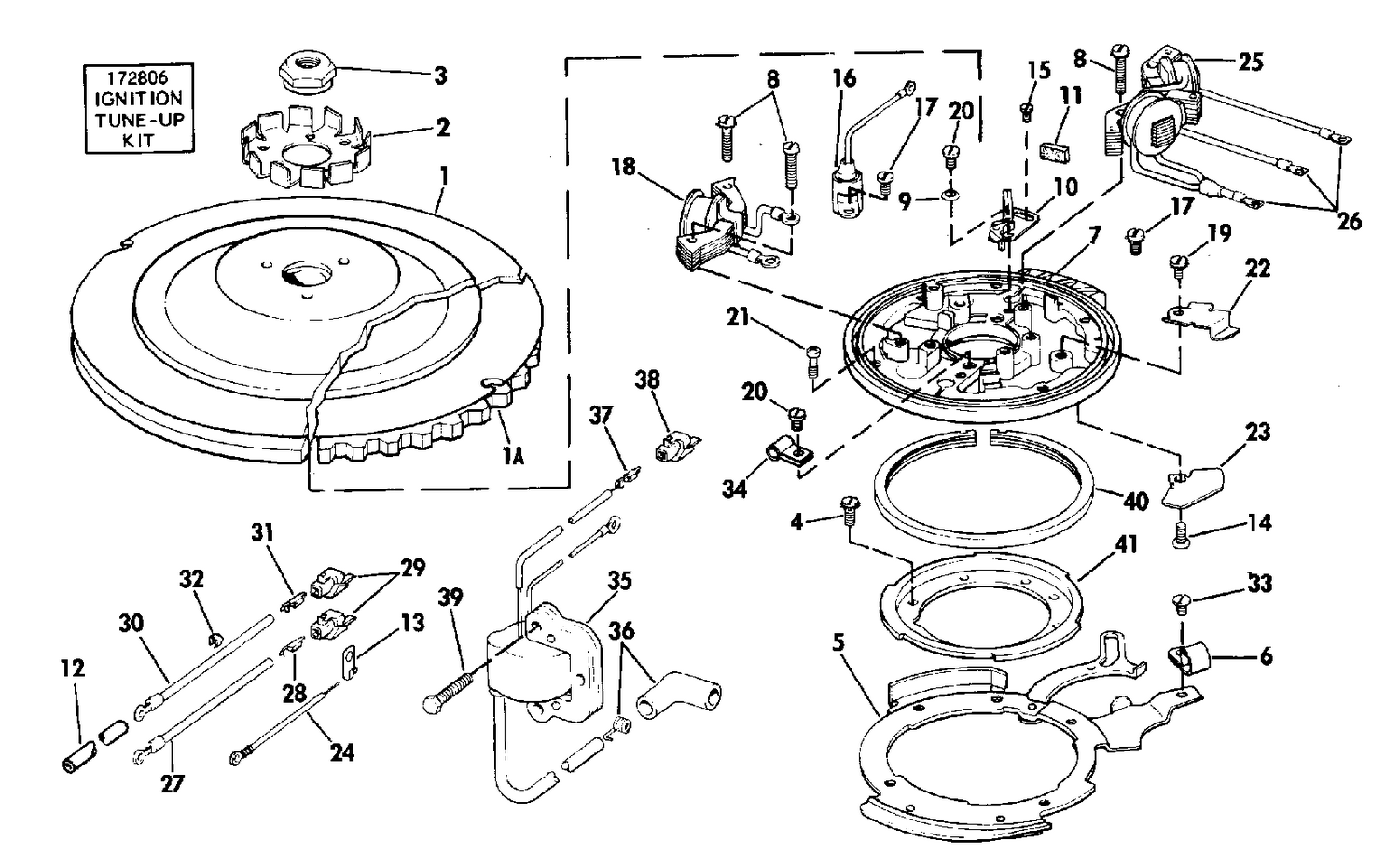

MAGNETO
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0582615 | FLYWHEEL ASSY. This part replaces 0581344. |
| 2 | 0202111 | RATCHET |
| 3 | 0326111 | NUT This part replaces 0308457. |
| 4 | 0305230 | SCREW |
| 5 | 0386172 | RETAINER, Cam and link assembly |
| 6 | 0316669 | CLAMP This part replaces 0319473. |
| 7 | 0581217 | ARMATURE PLATE |
| 8 | 0510397 | SCREW |
| 9 | 0510208 | BOW WASHER |
| 10 | 0581207 | BREAKER ASSY |
| 10 | 0581345 | FLYWHEEL ASSY |
| 12 | 0320288 | TUBING LEADS |
| 13 | 0511286 | TERMINAL, Ground lead |
| 15 | 0510194 | SCREW |
| 16 | 0581419 | CONDENSER |
| 18 | 0581202 | COIL & LAMINATION |
| 21 | 0511195 | SCREW |
| 22 | 0318954 | CLAMP, Ignition coil |
| 23 | 0318909 | COVER |
| 24 | 0581393 | LEAD ASSY,Ground |
| 25 | 0581252 | STATOR ASSY |
| 27 | 0581322 | LEAD LOWER |
| 30 | 0581321 | LEAD, Upper |
| 32 | 0511071 | CLIP |
| 34 | 0314200 | CLAMP |
| 35 | 0581407 | IGNINTION COIL ASSEMBLY |
| 39 | 0909533 | SCREW, Pressure relief valve cover This part replaces 0309646. |
| 40 | 0322435 | ROULEMENT, plaque d'allumage vers support This part replaces 0319069. |
| 0581208 | 0581208 | ARMATURE PLATE ASSY |
| 0581263 | 0581263 | ARMATURE PLATE ASSY |
