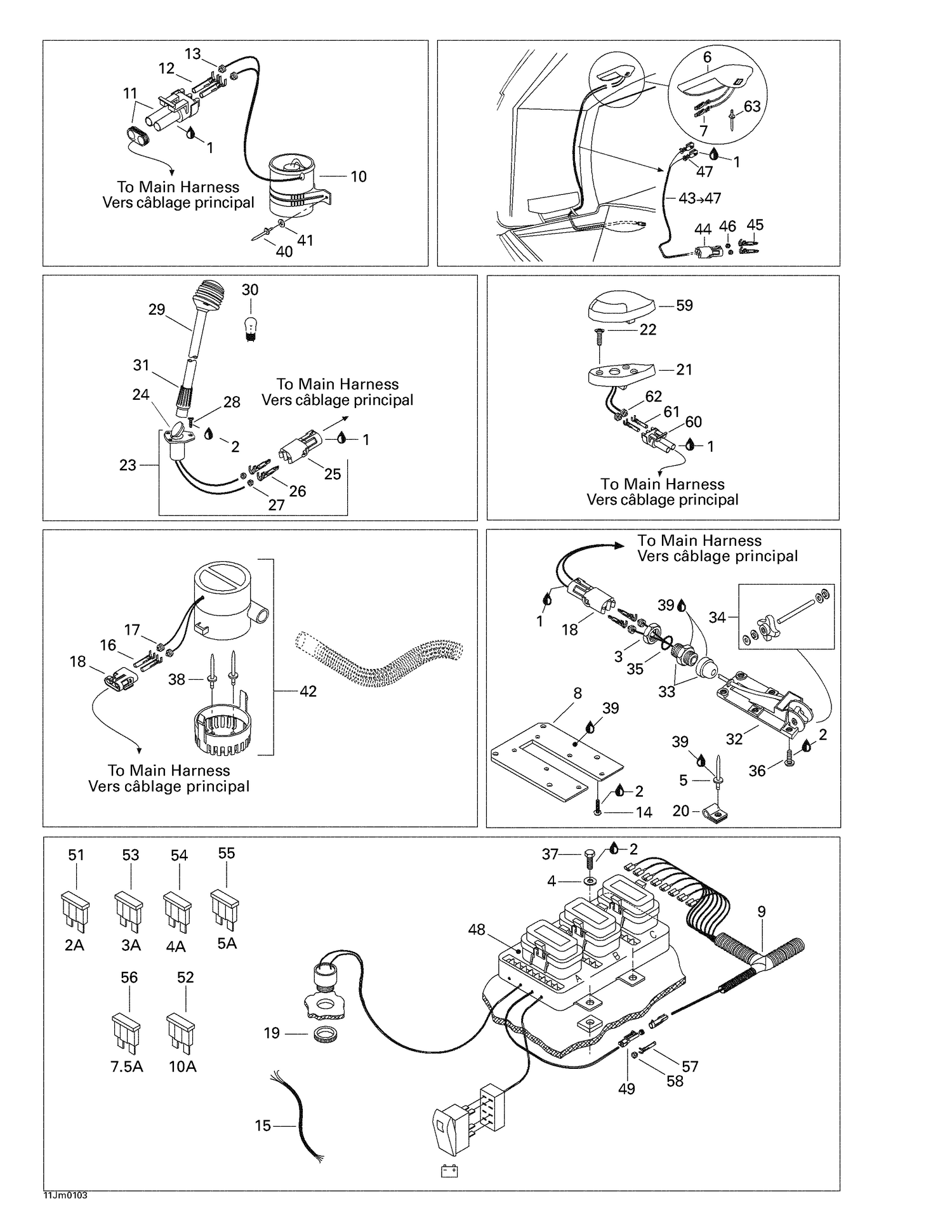

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
293800060 |
Loctite 243, 10 ml |
| 3 |
293710032 |
LOCKING NUT - Call your local BRP dealership |
| 4 |
234062600 |
Flat Washer M6, Stainless |
| 5 |
293150088 |
Pop Rivet 3/16" |
| 7 |
204470553 |
Male Terminal |
| 8 |
204470538 |
Sensor Support |
| 9 |
204470576 |
Harness |
| 11 |
278000220 |
Male Connector, 2 Circuits |
| 12 |
278000223 |
Female Terminal |
| 13 |
278000218 |
Wire Seal |
| 14 |
208563560 |
Phillips Screw M6 X 35 |
| 15 |
204470566 |
Fuse Harness |
| 16 |
Not |
Available As Spare Part - Male Terminal |
| 17 |
278000216 |
Wire Seal |
| 18 |
278000217 |
Female Housing, 2 Circuits |
| 19 |
278000707 |
Buzzer Nut |
| 20 |
204100026 |
Cable Clamp 3/16” |
| 21 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 22 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Rear Lamp Base |
| 25 |
278000217 |
Female Housing, 2 Circuits |
| 26 |
278000222 |
Male Terminal |
| 27 |
278000218 |
Wire Seal |
| 28 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 30 |
204470053 |
Bulb |
| 31 |
204470350 |
COLLAR - Call your local BRP dealership |
| 33 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 34 |
295500108 |
Paddle Wheel Kit |
| 35 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 36 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 37 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 38 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 40 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 41 |
234052600 |
Flat Washer 5 mm, Stainless |
| 42 |
204471431 |
Bilge Pump |
| 44 |
278000217 |
Female Housing, 2 Circuits |
| 45 |
278000222 |
Male Terminal |
| 46 |
278000218 |
Wire Seal |
| 47 |
Not |
Available As Spare Part - Female Terminal 14-16 GA |
| 49 |
Not |
Available As Spare Part - Female Terminal Housing (1 Circuits) |
| 51 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 52 |
278001197 |
Fuse, 10 Amperes |
| 53 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 54 |
Not |
Available As Spare Part - 4 Amp. Fuse |
| 55 |
278000344 |
Fuse, 5 Amperes |
| 56 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 57 |
278000223 |
Female Terminal |
| 58 |
278000218 |
Wire Seal |
| 60 |
409209500 |
Female Housing, 2 Circuits This part replaces 204470528. |
| 61 |
278001014 |
Female Terminal |
| 62 |
278001013 |
Wire Seal |
| 204470409 |
Navigation |
Light, Red, Port Side 204470409 |
