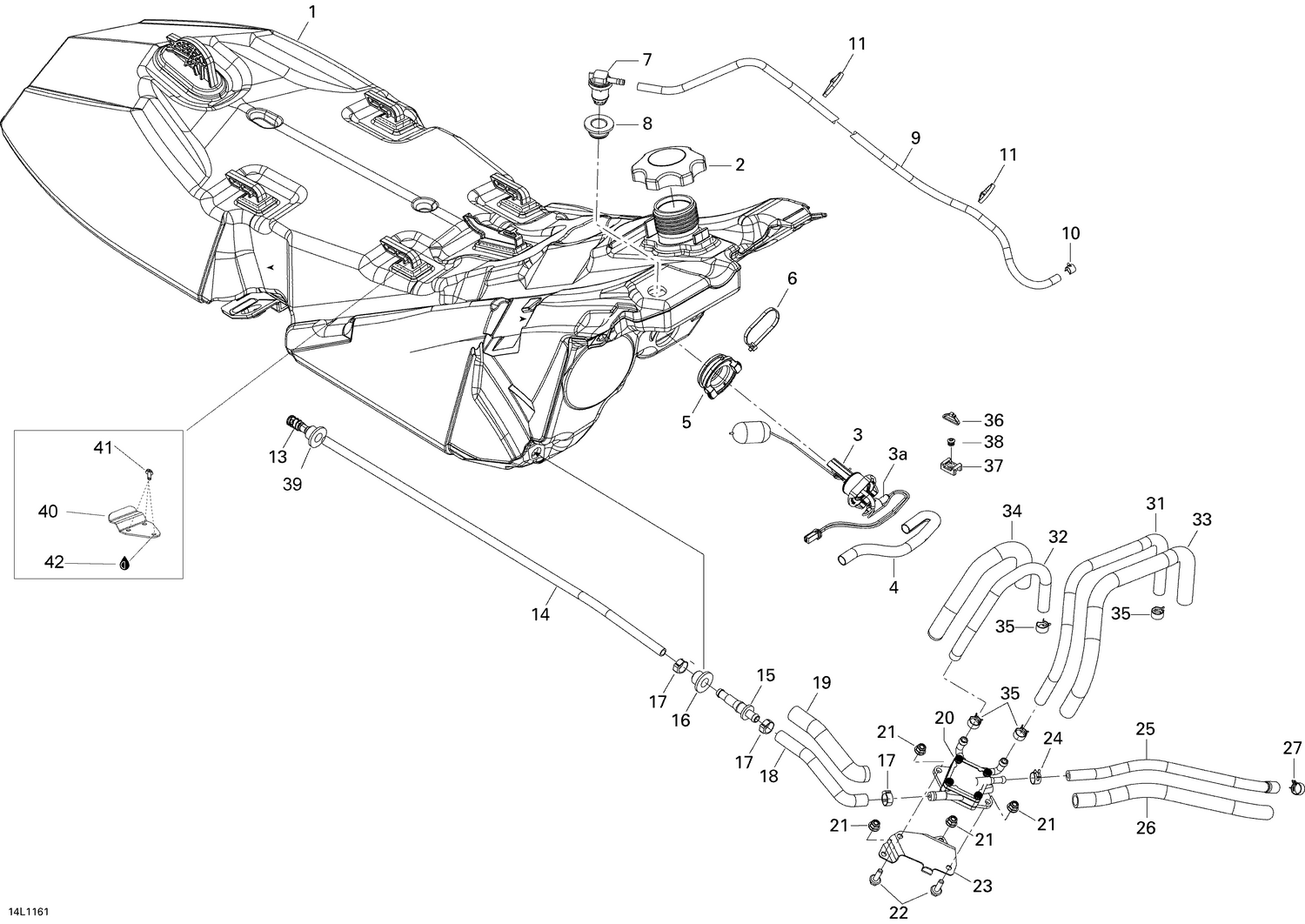

02- Fuel System
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033609 | Fuel Tank |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033958 | Sensor Level Fuel This part replaces 513033624. |
| 3a | 710001995 | Fuse, 0.5 Ampère |
| 4 | 415079900 | Tubing 10 mm |
| 5 | 513033606 | Grommet |
| 6 | 293750008 | Tie-Rap 368 mm |
| 7 | 513033842 | Check Valve This part replaces 513033188. |
| 8 | 513033596 | Grommet |
| 9 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 10 | 414554800 | Spring Clamp |
| 11 | 414115200 | Tie-Rap 180 mm |
| 13 | 414872100 | Fuel Filter |
| 14 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 15 | 414872700 | Male Connector |
| 16 | 513033435 | Grommet |
| 17 | 293650053 | Crimp Clamp |
| 18 | 513033499 | Formed Hose |
| 19 | 415080000 | Tubing 16 mm |
| 20 | 403901813 | Fuel Pump |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 207662044 | Hex. Flange Screw M6 X 20 |
| 23 | 513033543 | Pump Bracket |
| 24 | 414415200 | Universal Spring Clamp |
| 25 | 513033553 | Formed Hose |
| 26 | 415080000 | Tubing 16 mm |
| 27 | 605627005 | CLAMP MINI ABA 13 - Call your local BRP dealership |
| 31 | 415129492 | Hose |
| 32 | 415129492 | Hose |
| 33 | 415080000 | Tubing 16 mm |
| 34 | 415080000 | Tubing 16 mm |
| 35 | 513033029 | Universal Spring Clamp |
| 36 | 515176795 | Tie Rap Mount (Screwable) |
| 37 | 293750002 | Tie-Rap 142 mm |
| 38 | 390402000 | Pop Rivet 3/16" |
| 39 | 280000674 | Grommet This part replaces 28037. |
| 40 | 510005129 | Seat front fastening plate |
| 41 | 205461046 | Screw socket |
