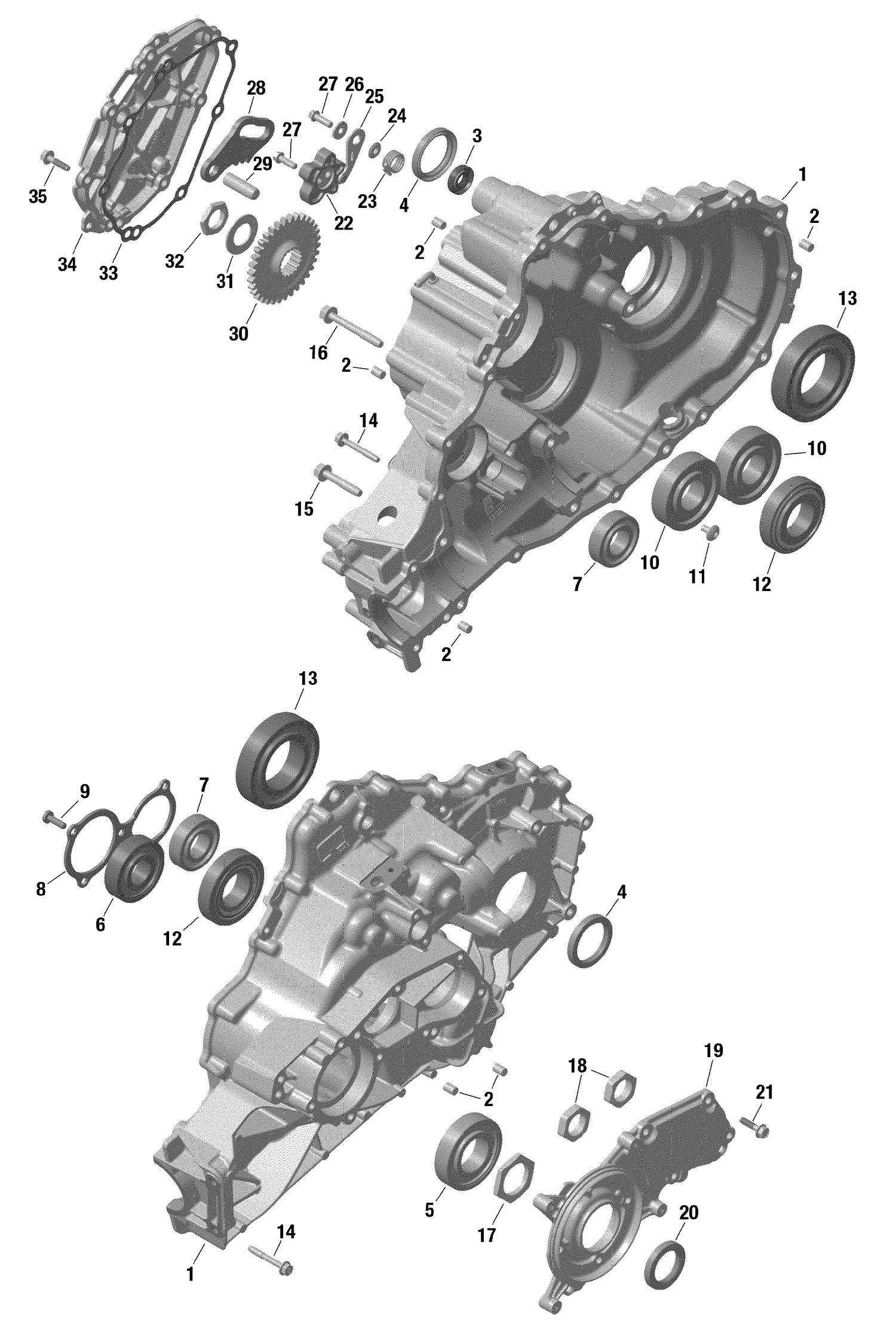

01- Rotax - Gear Box 1 - 509
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Housing |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420250452 | Oil Seal |
| 4 | 420230137 | Oil Seal |
| 5 | 420632745 | Ball Bearing |
| 6 | 420832098 | Ball Bearing |
| 7 | 420232764 | Ball Bearing 6205 |
| 8 | 420651830 | Retaining Plate |
| 9 | 420441386 | Torx Flange Screw M6 X 20 |
| 10 | 420932574 | Ball Bearing |
| 11 | 420241537 | Hex Flat Head Screw M6 X 13 T30 This part replaces 420241535. |
| 12 | Not | Available As Spare Part - Bearing |
| 13 | 420632871 | Ball Bearing |
| 14 | 420441921 | Collar Screw M6 X 45 |
| 15 | 420441932 | Torx Flange Screw M8 X 45 This part replaces 420441931. |
| 16 | 420441942 | Torx Flange Screw M8 X 65 This part replaces 420441941. |
| 17 | 420842600 | Hex Nut M34 X 1.5 |
| 18 | 420242012 | Hex. Nut M24 This part replaces 420242954. |
| 19 | 420212381 | Bearing Cover |
| 20 | 420950089 | Oil Seal |
| 21 | 420441951 | Collar Screw M6 x 25 |
| 22 | 420248024 | Index Washer |
| 23 | 420239566 | Spring |
| 24 | 420227717 | Step Ring |
| 25 | 420248528 | Index Lever Ass'y |
| 26 | 420827300 | Washer |
| 27 | 420441835 | Torx Flange Screw M6 X 20 |
| 28 | 420657440 | Parking Lock Lever |
| 29 | 420249190 | Needle Pin |
| 30 | 420634938 | Gear This part replaces 420634936. |
| 31 | 420245860 | Spring Washer |
| 32 | 420242879 | Nut |
| 33 | 420450410 | Gasket |
| 34 | 420212391 | Gear Box Cover |
