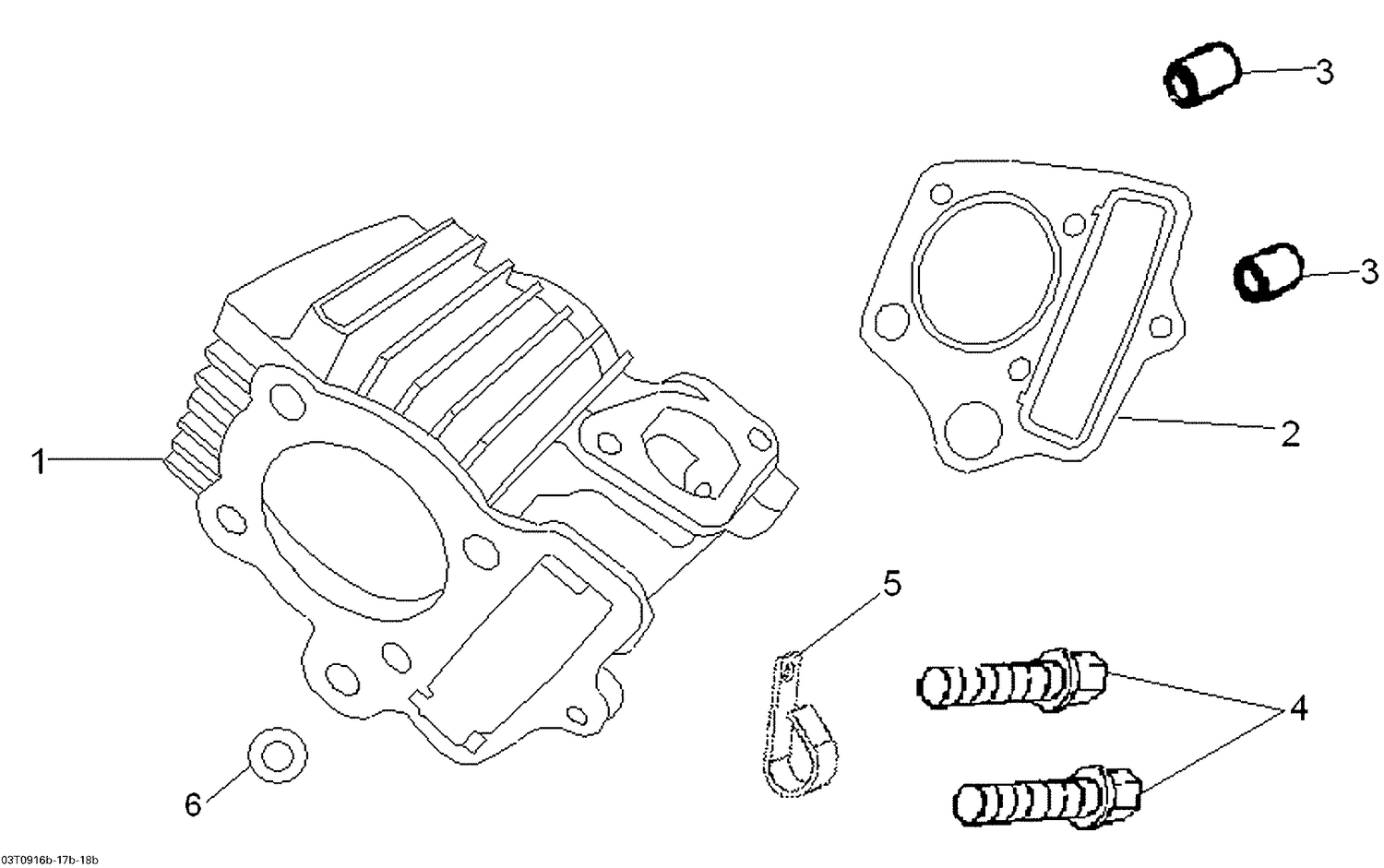

01- Cylinder
Parts (5)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V12101CJE040 | Cylinder Ds-70 2015 And Prior This part replaces V12101CJE010. |
| 2 | V12191CJF020 | CYLINDER GASKET - Call your local BRP dealership This part replaces V12191CJF000. |
| 3 | A9430108120 | DOWEL PIN - Call your local BRP dealership |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | V113834DM010LL | Clamp This part replaces V113834DM00. |
