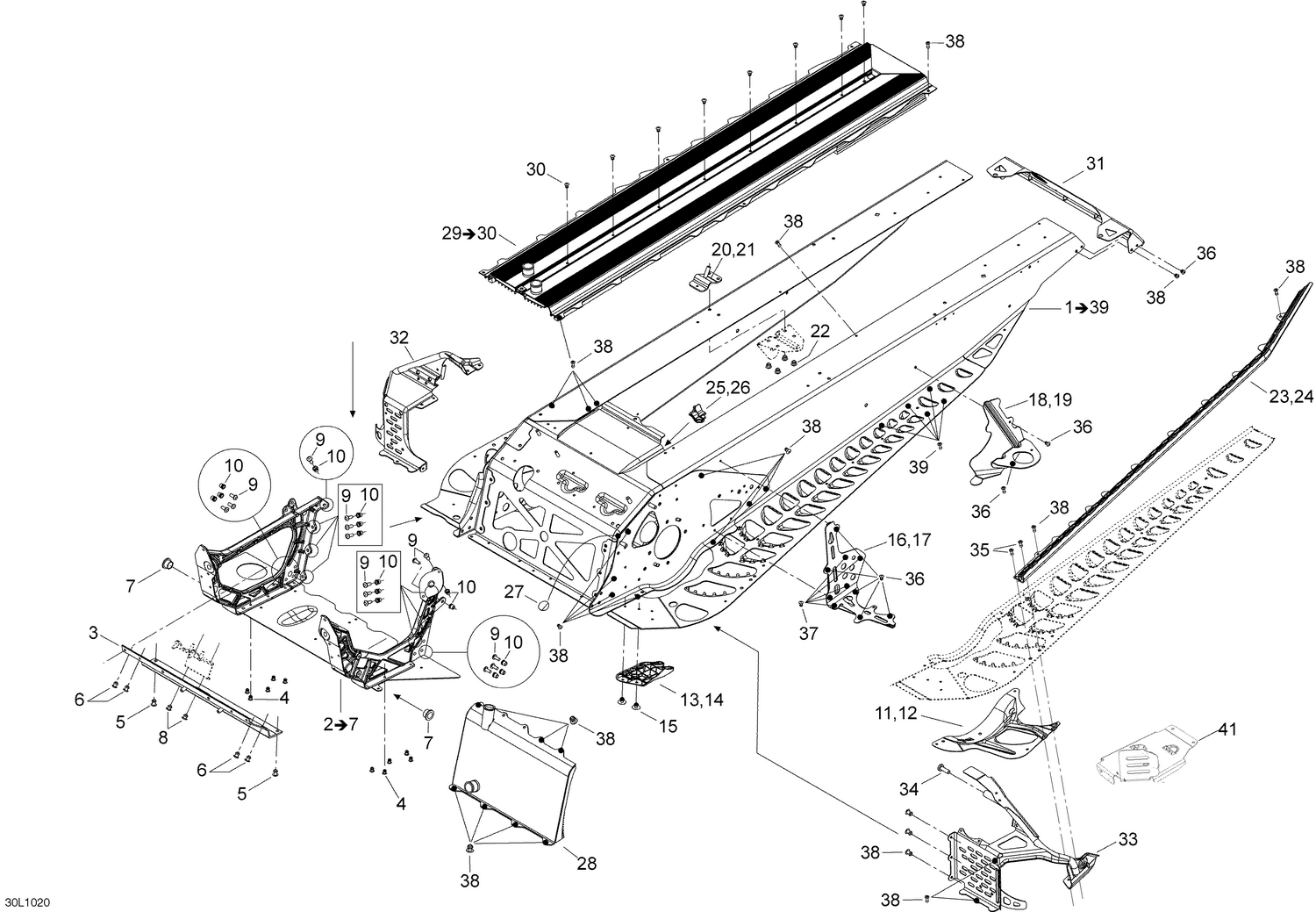

09- Frame
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518326077 | E Module |
| 3 | 518326198 | Front Member |
| 4 | 293150144 | Stavex Rivet |
| 5 | 293150120 | Hemlock Rivet 6.5 mm |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm |
| 7 | 505072690 | Leg Bushing This part replaces 505070954. |
| 8 | 293150174 | Hemlock Rivet, 6.4 mm |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 518324874 | RH Reinforcement |
| 12 | 518324875 | LH Reinforcement |
| 13 | 518325782 | RH Deflector |
| 14 | 518325783 | LH Deflector |
| 15 | 293150104 | Pop Rivet 3/16 |
| 16 | Not | Available As Spare Part - RH Front Support |
| 17 | Not | Available As Spare Part - LH Front Support |
| 18 | 518326766 | RH REAR SUPPORT - Call your local BRP dealership This part replaces 518326493. |
| 19 | 518326767 | LH REAR SUPPORT - Call your local BRP dealership This part replaces 518326494. |
| 22 | 293150119 | Hemlock Rivet, 6.5 mm |
| 23 | 518325693 | LH Roller |
| 24 | 518325694 | RH Roller |
| 25 | 518325653 | RH SEAL - Call your local BRP dealership |
| 26 | 518325654 | LH SEAL - Call your local BRP dealership |
| 27 | 518325560 | Adhesive Patch |
| 28 | 518326485 | Front Radiator |
| 30 | 390909100 | Avex Rivet |
| 31 | 518327105 | Rear Cap This part replaces 518325421. |
| 32 | 518328938 | Etrier Droit *Rh.Stirup This part replaces 518326216. |
| 33 | 518327935 | LH STIRUP - Call your local BRP dealership This part replaces 518326239. |
| 34 | 250000752 | Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 35 | 390402300 | Pop Rivet 3/16" |
| 36 | 390909200 | Avex Rivet |
| 37 | 390909100 | Avex Rivet |
| 38 | 293150144 | Stavex Rivet |
| 39 | 293150145 | Rivet |
