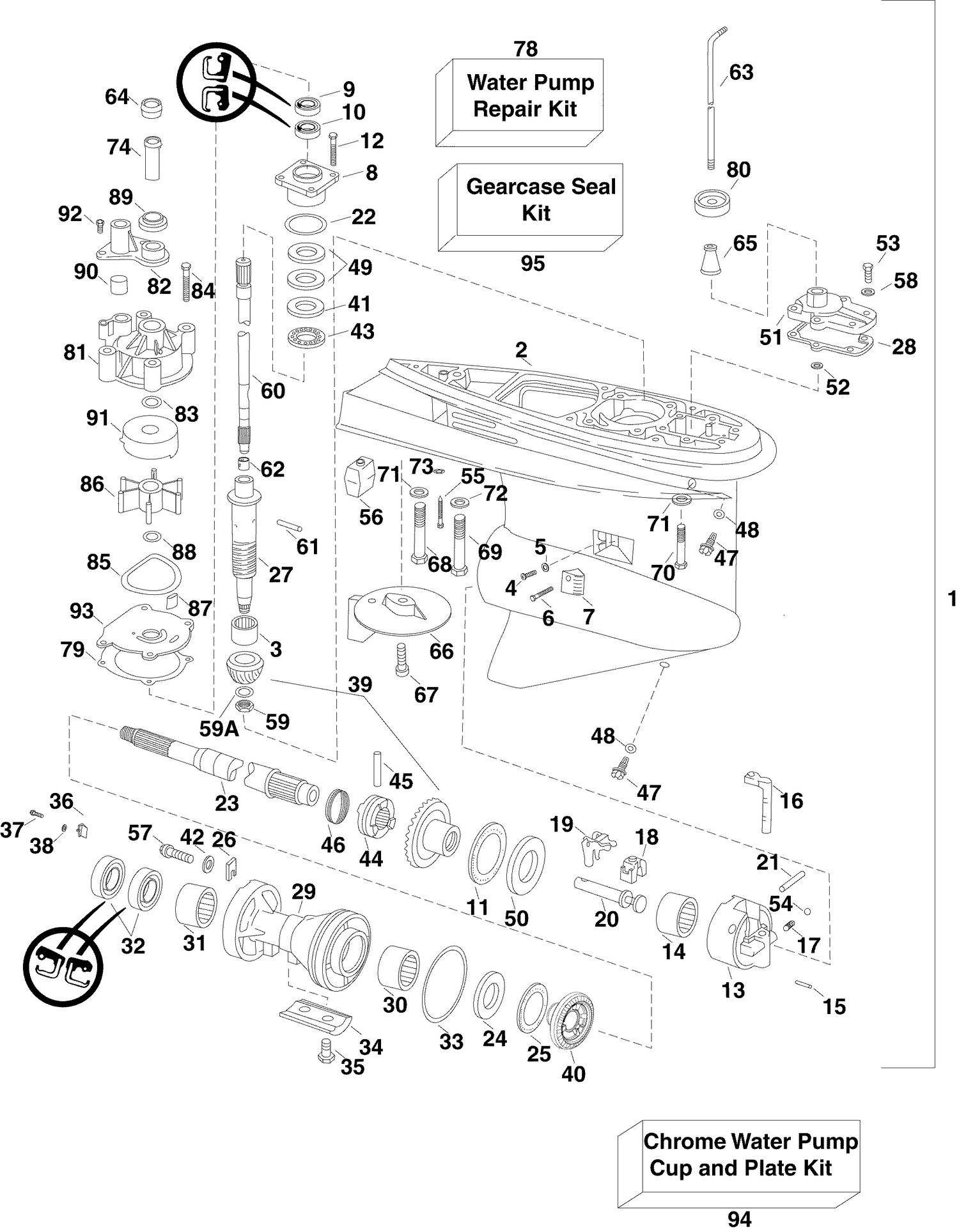

GEARCASE PX , W MODELS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009318 | G/C Ay/.44/Os Wht This part replaces 5005744. |
| 60 | 5000624 | DRIVESHAFT Assembly, Upper |
| 63 | 0352886 | SHIFT ROD This part replaces 0351180. |
| 66 | 0338742 | COMPENSATEUR DE DÉRIVE |
| 67 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 68 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 69 | 0331998 | SCREW, Gearcase to housing |
| 70 | 0331999 | SCREW, Gearcase housing |
| 78 | 5001595 | Water Pump Repair Kit |
| 83 | 0331188 | O-Ring |
| 85 | 0331353 | Seal, Impeller Housing Plate. |
| 94 | 0435526 | CHROME CUP & PLATE KIT |
