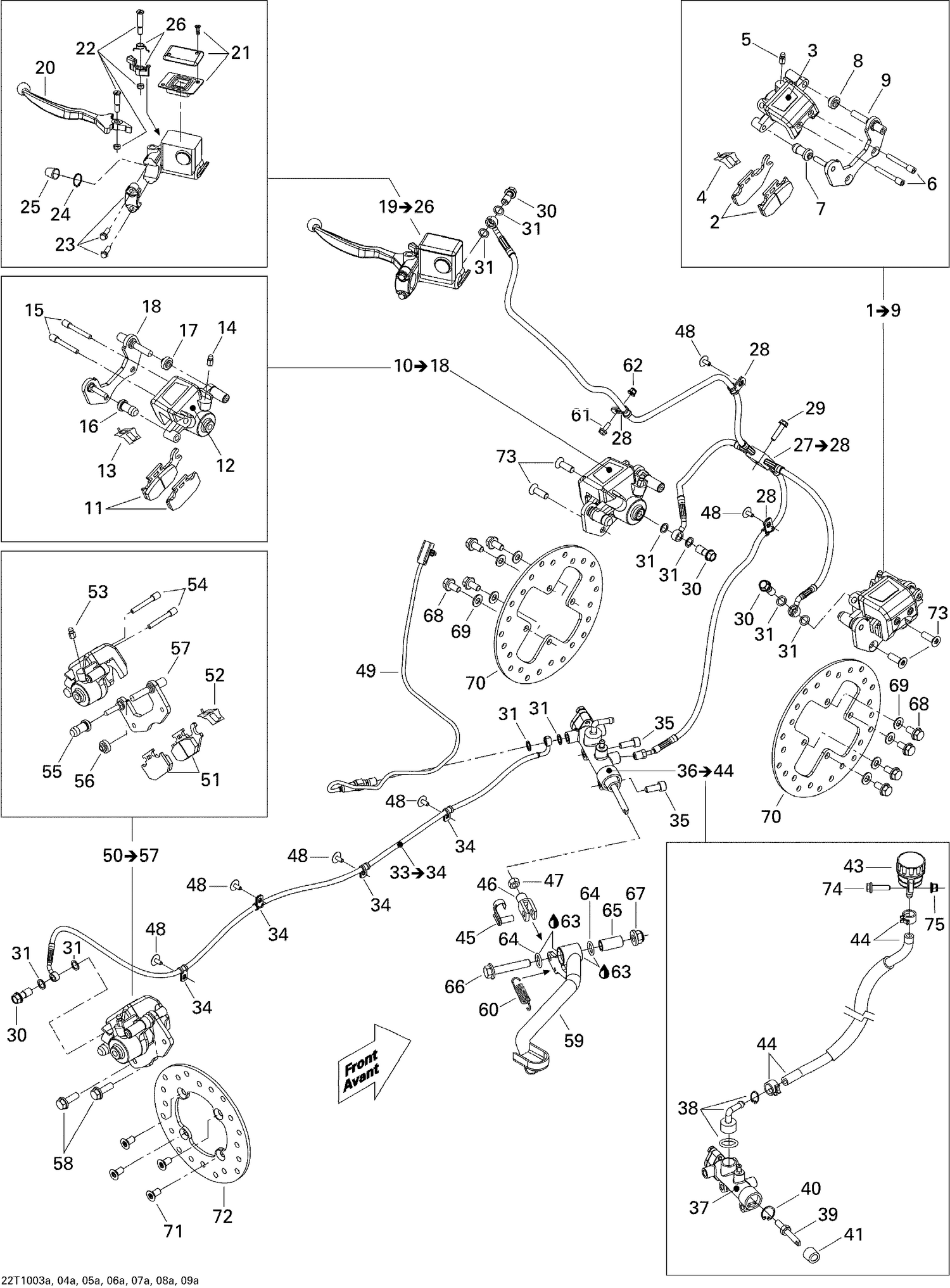

| Ref | Part Number | Description |
|---|
| 2 |
705600349 |
Brake Pad Kit |
| 2 |
705600350 |
Brake Pad Kit |
| 3 |
705600078 |
Piston Set |
| 4 |
705600079 |
Spring |
| 5 |
705600080 |
Bleeding Screw |
| 6 |
705600081 |
Pin Set (2) |
| 7 |
705600082 |
Compression Boot |
| 8 |
705600083 |
Compression Boot |
| 9 |
705600296 |
RH CALIPER SUPPORT - Call your local BRP dealership |
| 11 |
705600349 |
Brake Pad Kit |
| 11 |
705600350 |
Brake Pad Kit |
| 12 |
705600078 |
Piston Set |
| 13 |
705600079 |
Spring |
| 14 |
705600080 |
Bleeding Screw |
| 15 |
705600081 |
Pin Set (2) |
| 16 |
705600082 |
Compression Boot |
| 17 |
705600083 |
Compression Boot |
| 18 |
705600297 |
LH Caliper Support |
| 20 |
705600243 |
Lever Arm |
| 21 |
705600084 |
Cap Set |
| 22 |
705600246 |
Brake Lever Bolt Kit |
| 23 |
705600087 |
BRACKET KIT - Call your local BRP dealership |
| 24 |
705600088 |
CIRCLIP - Call your local BRP dealership |
| 25 |
705600089 |
COMPRESSION BOOT - Call your local BRP dealership |
| 26 |
705600477 |
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership |
| 28 |
293650256 |
Clamp This part replaces 705600459. |
| 29 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 30 |
705600609 |
Banjo Bolt (M10 x 1.25 thread) |
| 31 |
705601628 |
Copper Washer This part replaces 705600310. |
| 34 |
293650256 |
Clamp This part replaces 705600459. |
| 35 |
250000136 |
Socket Head Screw M8 X 20, Scotch Grip |
| 37 |
705600255 |
Piston Set |
| 38 |
705600064 |
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership |
| 39 |
Not |
Available As Spare Part - Rod Ass'y |
| 40 |
705600068 |
Circlip |
| 41 |
705600090 |
Compression Boot |
| 43 |
705600182 |
Oil Tank, Brake Fluid Reservoir |
| 44 |
705600754 |
OIL HOUSING HOSE - Call your local BRP dealership |
| 45 |
219702305 |
Pin Kit This part replaces 250400007. |
| 46 |
705600100 |
Yoke |
| 47 |
232081414 |
Hex. Nut M8 |
| 48 |
390406500 |
Pop Rivet 3/16" |
| 49 |
705600798 |
Brake Switch |
| 51 |
705600398 |
LH Brake Pad Kit |
| 52 |
705600079 |
Spring |
| 53 |
705600080 |
Bleeding Screw |
| 54 |
705600081 |
Pin Set (2) |
| 55 |
705600082 |
Compression Boot |
| 56 |
705600083 |
Compression Boot |
| 57 |
705600298 |
LH CALIPER SUPPORT - Call your local BRP dealership |
| 58 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 59 |
705601154 |
BRAKE PEDAL, BLACK - Call your local BRP dealership This part replaces 705600784. |
| 60 |
705600792 |
Brake Pedal Spring |
| 61 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 62 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 63 |
293550010 |
Synthetic Grease, 400 G |
| 64 |
293300144 |
O-Ring |
| 65 |
705600815 |
Inner Spacer |
| 66 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 67 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 68 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 69 |
234281474 |
Conical Spring Washer M8 |
| 70 |
705600603 |
Disk Brake |
| 71 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 72 |
705600604 |
Disk Brake |
| 73 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 74 |
207662544 |
Hex. Flange Screw M6 X 25 |
