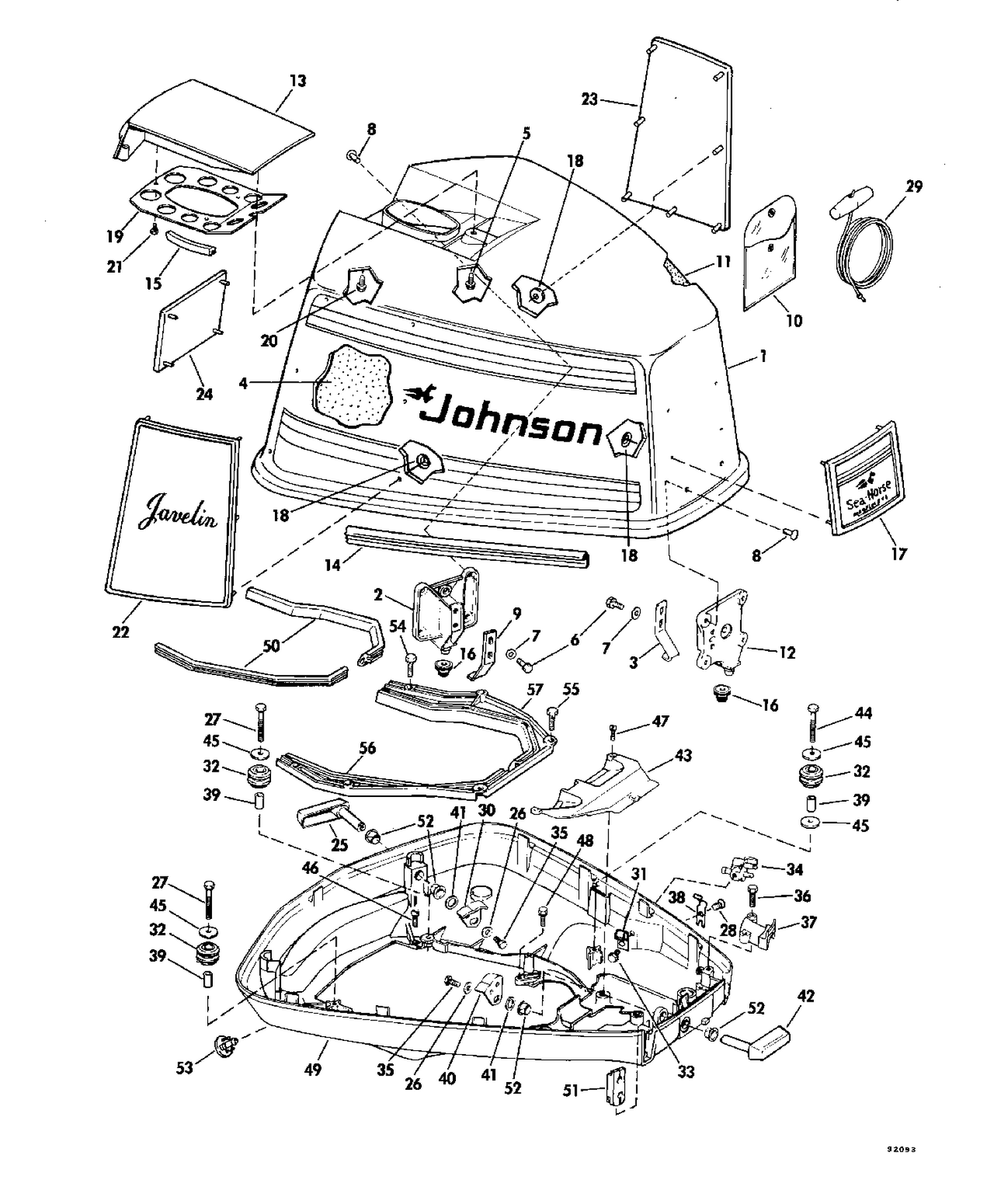

| Ref | Part Number | Description |
|---|
| 1 |
0389169 |
MOTOR COVER ASSY,, 100 HP |
| 1 |
0389170 |
MOTOR COVER ASSY., 100 HP |
| 1 |
0389171 |
MOTOR COVER ASST., 115 HP |
| 1 |
0389172 |
MOTOER COVER ASSY., 140 HP |
| 1 |
0389893 |
MOTOR COVER ASSY., 85 HP |
| 2 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0389972. |
| 3 |
0323175 |
HOOK , Motor Cover, Front |
| 4 |
0315206 |
SOUND BLANKDT, Side |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 10 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 11 |
0324072 |
SOUND BLANKET, Top |
| 12 |
0389971 |
LOCATING BARCKET, Front |
| 14 |
0329548 |
SEAL This part replaces 0208076. |
| 15 |
0315984 |
SEAL , Baffle to motor cover |
| 17 |
0389597 |
APPLIQUE |
| 17 |
0389598 |
APPLIQUE, 100 hp |
| 19 |
0315989 |
AIR INLET BAFFLE |
| 22 |
0323970 |
APPLIQUE, Starboard |
| 23 |
0323969 |
APPLIQUE, Port |
| 24 |
0323965 |
APPLIQUE, Rear |
| 25 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 27 |
0303398 |
VIS, support This part replaces 0302030. |
| 28 |
0310539 |
SCREW, Clamp choke solenoid |
| 29 |
0378347 |
CORDE DE LANCEUR |
| 30 |
0323169 |
HOOK, Lower rear port |
| 32 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 33 |
0325857 |
SCREW, Fuel connector This part replaces 0304151. |
| 34 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 35 |
0552062 |
SCREW, Clamp |
| 36 |
0307151 |
SCREW |
| 37 |
0318849 |
CLAMP, Instrument cable |
| 38 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 39 |
0302406 |
SLEEVE |
| 40 |
0323170 |
HOOK Front and stbd., rear |
| 42 |
0383641 |
LATCH HANDEL ASSY., Front |
| 43 |
0328358 |
COVER ASSY. Air entrance This part replaces 0323154. |
| 44 |
0303398 |
VIS, support This part replaces 0302030. |
| 46 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 47 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 49 |
0434289 |
COVER, Lower This part replaces 0390019. |
| 50 |
0318258 |
SEAL Cover |
| 51 |
0323428 |
GROMMET |
| 53 |
0321885 |
NIPPLE |
| 54 |
0302288 |
BOLT |
| 55 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 56 |
0392494 |
FRAME AND SEAL ASSY This part replaces 0387443. |
| 57 |
0318258 |
SEAL Cover |
| 0389648 |
0389648 |
DECAL SET, 100 hp |
| 0389649 |
0389649 |
DECAL SET, 100 hp |
| 0389650 |
0389650 |
DECAL SET, 115 hp |
| 0389651 |
0389651 |
DECAL SET, 140 hp |
| 0389894 |
0389894 |
DECAL SET, 85 hp |
| 0390120 |
0390120 |
DECAL SET, 85 hp |
| 0390121 |
0390121 |
DECAL SET, 115 hp |
| 0390122 |
0390122 |
DECAL SET, 140 hp |
