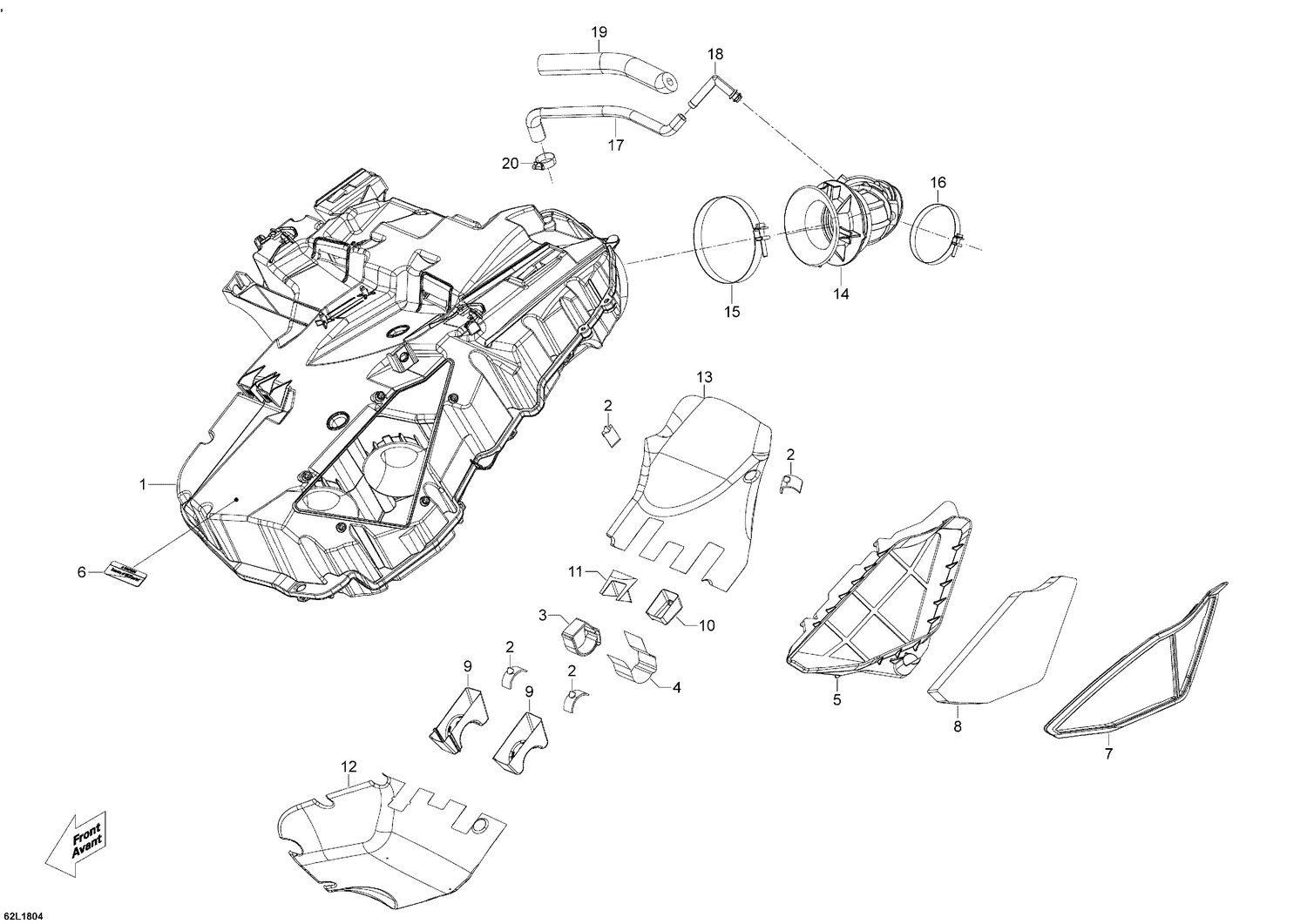

02- Air Intake 1200 4-TEC
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000789 | Secondary Chamber Ass'y |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Velcro-Strip |
| 4 | 44110 | Aluminum Foil |
| 5 | 508001020 | Adaptor This part replaces 508000756. |
| 6 | 516006903 | Hot Parts Decal |
| 7 | 508000609 | Air Filter |
| 8 | 508000704 | Filter |
| 9 | 508000723 | Heat Shield |
| 10 | 508000725 | Heat Shield |
| 11 | 508000636 | HEAT SHIELD - Call your local BRP dealership |
| 12 | 508000726 | Heat Shield |
| 13 | 508000627 | Heat Shield |
| 14 | 508000812 | Intake Hose |
| 15 | 514052983 | Norma Gear Clamp |
| 16 | 293650229 | Gemi Clamp |
| 17 | 508000792 | Fan Hose |
| 18 | 508000811 | Breather |
| 19 | 508000630 | Insulating Tube |
