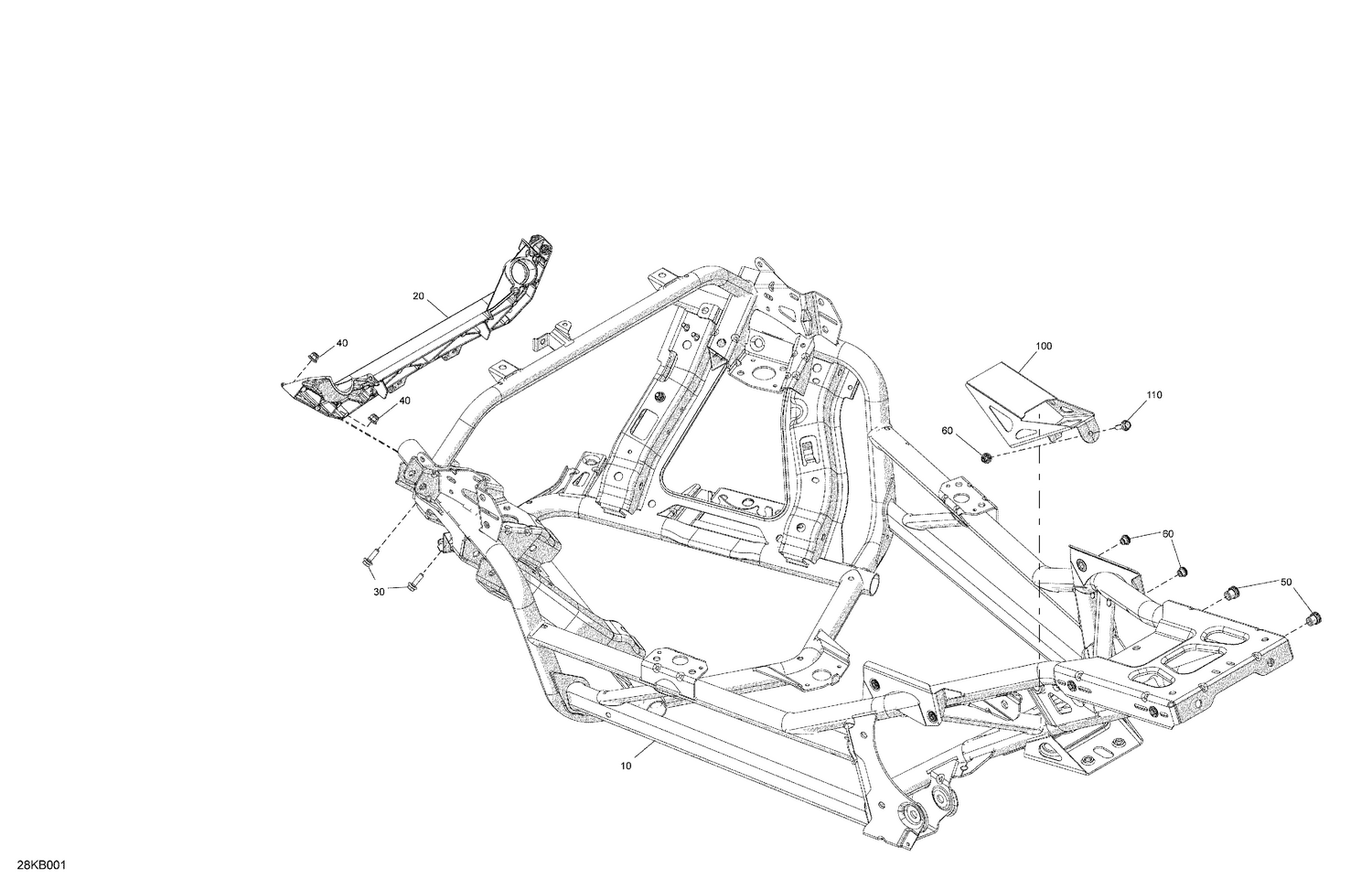

06- Frame - System
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705212410 | Chassis This part replaces 705209725. |
| 20 | 705208908 | Upper Front Cross Member |
| 30 | 207662044 | Hex. Flange Screw M6 X 20 |
| 40 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 60 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 100 | 705208075 | Fuel Tank Support |
