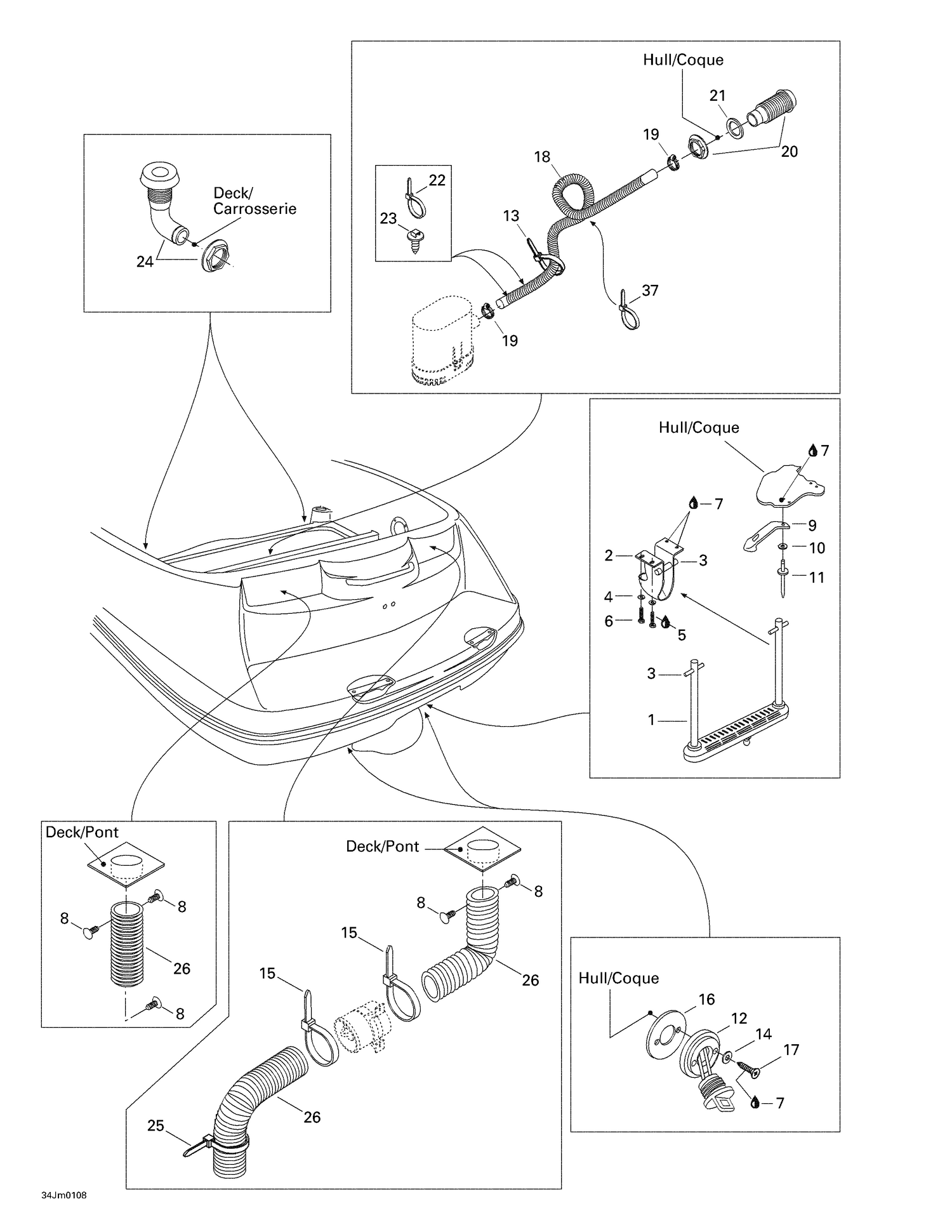

09- Body And Accessories 2
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204060187 | LADDER - Call your local BRP dealership |
| 2 | 204060141 | U-BRACKET - Call your local BRP dealership |
| 3 | 211300021 | ROLL PIN M8 X 55 - Call your local BRP dealership |
| 4 | 234161601 | Lock Washer Helical M6 |
| 5 | 293800060 | Loctite 243, 10 ml |
| 6 | 207163560 | Hex. Screw M6 X 35 |
| 7 | 296000309 | Silicone Sealant 51388, 300 ml |
| 8 | 293730006 | Black, Dart |
| 9 | 570027100 | Hood Latch |
| 10 | 234052600 | Flat Washer 5 mm, Stainless |
| 11 | 293150013 | Pop Rivet 3/16" |
| 12 | 292000187 | Drain Plug |
| 13 | 293750008 | Tie Wrap 368 mm |
| 14 | 234041600 | Flat Washer 4 mm, Stainless |
| 15 | 293750019 | Tie Rap |
| 16 | 293250030 | GASKET - Call your local BRP dealership |
| 17 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 18 | 291001206 | BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 204050299. |
| 19 | 293650016 | Tridon Clamp |
| 20 | 293710162 | Fitting This part replaces 293710015. |
| 21 | 293250006 | GASKET - Call your local BRP dealership |
| 22 | 414115200 | Tie-Rap 180 mm |
| 23 | 293730040 | Mount Dart This part replaces 293730018. |
| 24 | 204071166 | DRAIN FITTING 90 - Call your local BRP dealership |
| 25 | 293750008 | Tie Wrap 368 mm |
