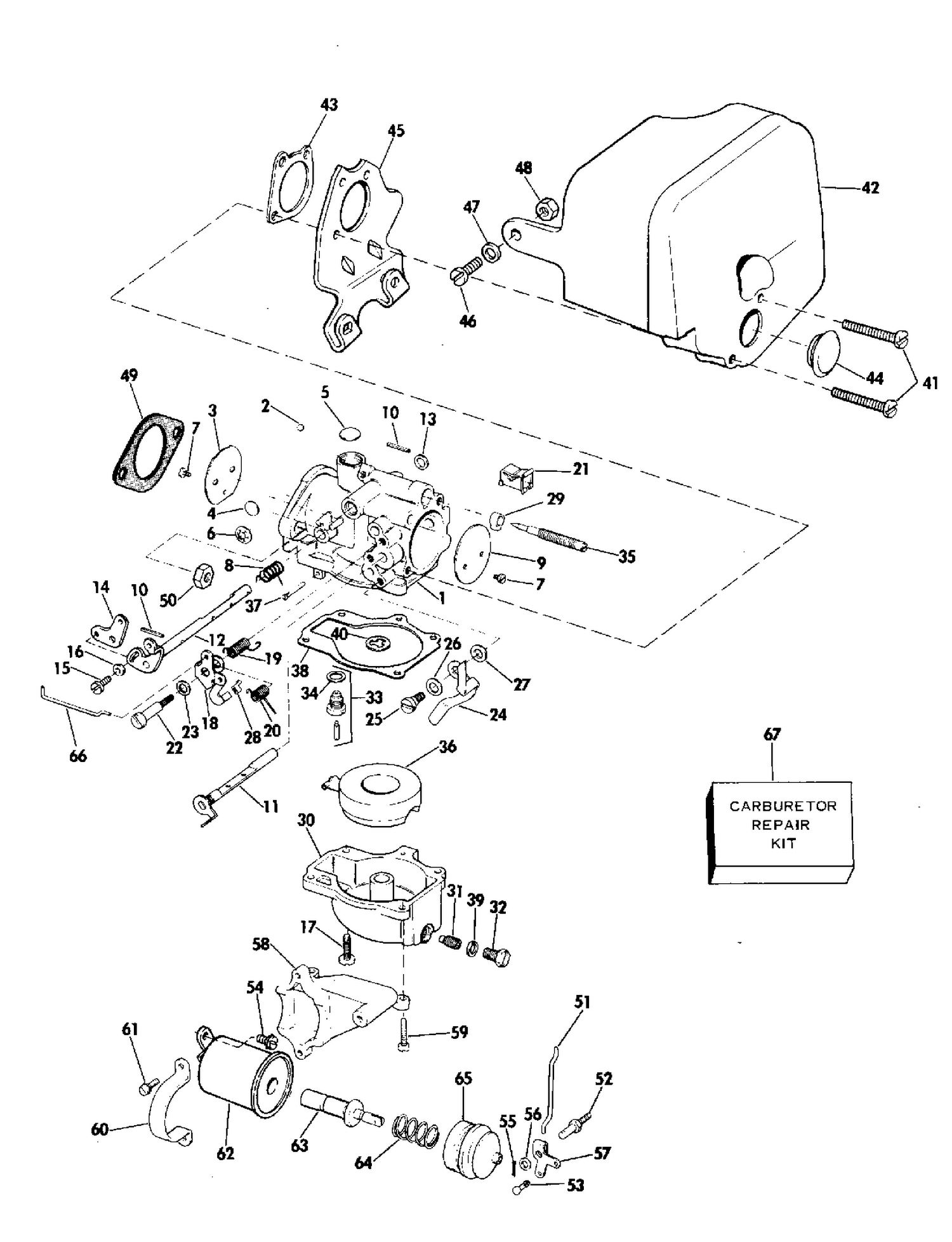

| Ref | Part Number | Description |
|---|
| 1 |
0387271 |
BODY ASSEMBLY |
| 3 |
0320919 |
VALVE, Throttle |
| 4 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 9 |
0322182 |
CHOKE VALVE This part replaces 0313359. |
| 11 |
0383718 |
CHOKE SHAFT |
| 12 |
0386854 |
THROTTLE SHAFT |
| 14 |
0320287 |
ADJUSTMENT LEVER |
| 15 |
0510278 |
SCREW |
| 18 |
0318444 |
BELLCRANK, Choke |
| 19 |
0315239 |
SPRING, Choke return |
| 20 |
0318445 |
SPRING, Choke override |
| 21 |
0204490 |
DETENT CHOKE, Ling |
| 22 |
0309720 |
SCREW, Cam follower |
| 23 |
0323693 |
WASHER, Bellcrank screw This part replaces 0553645. |
| 24 |
0315236 |
LEVER CHOKE |
| 26 |
0302473 |
BOW WASHER |
| 28 |
0318536 |
SLEEVE |
| 29 |
0315232 |
RETAINER , Needle valve stbd |
| 30 |
0387590 |
FLOAT CHAMBER |
| 32 |
0307832 |
PLUG, Screw |
| 35 |
0387701 |
NEEDLE VALVE ASSY.,Slow speed |
| 42 |
0387857 |
AIR SILENCER |
| 43 |
0323338 |
GASKET, Carb to silencer This part replaces 0321380. |
| 45 |
0323339 |
BRACKET, Support This part replaces 0320413. |
| 47 |
0306413 |
WASHER |
| 49 |
0325092 |
GASKET This part replaces 0314477. |
| 50 |
0316355 |
BUT, Carburetor mounting |
| 51 |
0315322 |
LINK |
| 52 |
0303739 |
PIVOT PIN |
| 53 |
0382778 |
PIN, Solenoid |
| 57 |
0303747 |
LEVER |
| 58 |
0387692 |
BRACKET |
| 59 |
0305879 |
SCREW 1" LONG |
| 60 |
0328907 |
COLLIER, amorçage vers support This part replaces 0303740. |
| 61 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 62 |
0385554 |
SOLENOID |
| 63 |
0377890 |
PLUNGER SOLENOID |
| 64 |
0320783 |
SPRING, Plunger |
| 65 |
0303792 |
COVER, Solenoid |
| 66 |
0318439 |
LINK, Throttle lever to choke bellcrank |
| 0386853 |
0386853 |
CARBURETOR ASSY. |
