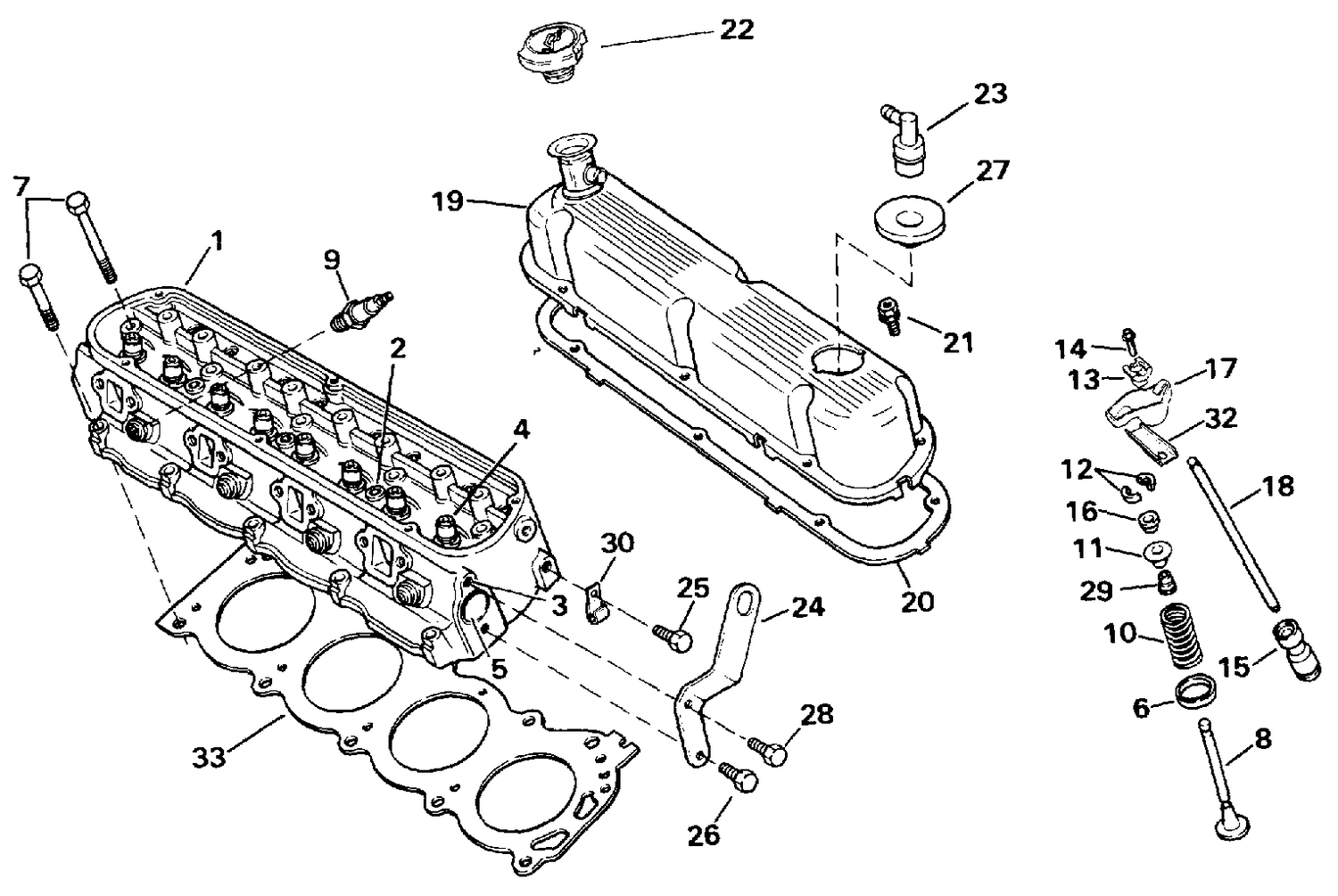

| Ref | Part Number | Description |
|---|
| 1 |
3853894 |
CYLINDER HEAD |
| 1 |
3853895 |
CYLINDER HEAD |
| 2 |
3853015 |
PLUG, Core hole |
| 3 |
3853016 |
INSERT, Thermactor hole |
| 4 |
3853017 |
BUSHING, Valve guide |
| 5 |
3852650 |
PLUG, Core hole |
| 6 |
3853030 |
INSERT, Exhaust valve seat |
| 7 |
3852769 |
BOLT, Cylinder head, 4 in. |
| 7 |
3852770 |
BOLT, Cylinder head, 2 1/2 in. |
| 7 |
3857029 |
Kit This part replaces 3852772. |
| 8 |
3852807 |
VALVE, Exhaust, standard |
| 8 |
3852808 |
VALVE, Intake, Standard |
| 8 |
3853027 |
VALVE, Exhaust, 0.015 in. O.S. |
| 8 |
3853028 |
VALVE, Intake, 0.015 in. O.S. |
| 8 |
3853029 |
VALVE, Intake, 0.030 in. O.S. |
| 9 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0916476. |
| 10 |
3852809 |
SPRING, Valve, exhaust |
| 10 |
3852810 |
SPRING, Valve, intake |
| 11 |
3852811 |
RETAINER, Valve spring, exhaust |
| 11 |
3854303 |
RETAINER, Spring, intake This part replaces 3852812. |
| 12 |
3852672 |
KEY, Valve spring retainer |
| 13 |
3852671 |
SEAT, Rocker arm |
| 14 |
3852814 |
BOLT, Rocker arm |
| 15 |
3853847 |
TAPPET |
| 16 |
3852813 |
SLEEVE, Retainer, intake |
| 17 |
3852815 |
ROCKER ARM |
| 18 |
3852816 |
PUSH ROD, Standard |
| 18 |
3852817 |
PUSH ROD, Standard |
| 19 |
3853906 |
VALVE COVER, Starboard |
| 19 |
3853907 |
VALVE COVER, Port |
| 20 |
3852818 |
GASKET, Valve cover |
| 21 |
3853037 |
SCREW, Valve cover |
| 22 |
3852707 |
CAP, Oil fill |
| 23 |
3852820 |
PCV VALVE |
| 24 |
3852705 |
LIFT BRACKET |
| 25 |
3853419 |
SCREW, Clamp, front |
| 26 |
3853557 |
SCREW, Brace to alterntr bracket |
| 27 |
3852821 |
GROMMET, PCV valve |
| 28 |
3853389 |
SCREW, Bracket to engine |
| 29 |
3852670 |
SEAL, Intake |
| 29 |
3853031 |
SEAL, Exhaust, 0.015 in. O.S. |
| 29 |
3853109 |
SEAL, Intake, 0.015 in. O.S. |
| 29 |
3853110 |
SEAL, Intake, 0.030 in. O.S. |
| 29 |
3853771 |
SEAL, Exhaust |
| 30 |
0316993 |
CLAMP, Batter cable This part replaces 3852146. |
| 32 |
3852819 |
GUIDE, Rocker arm |
