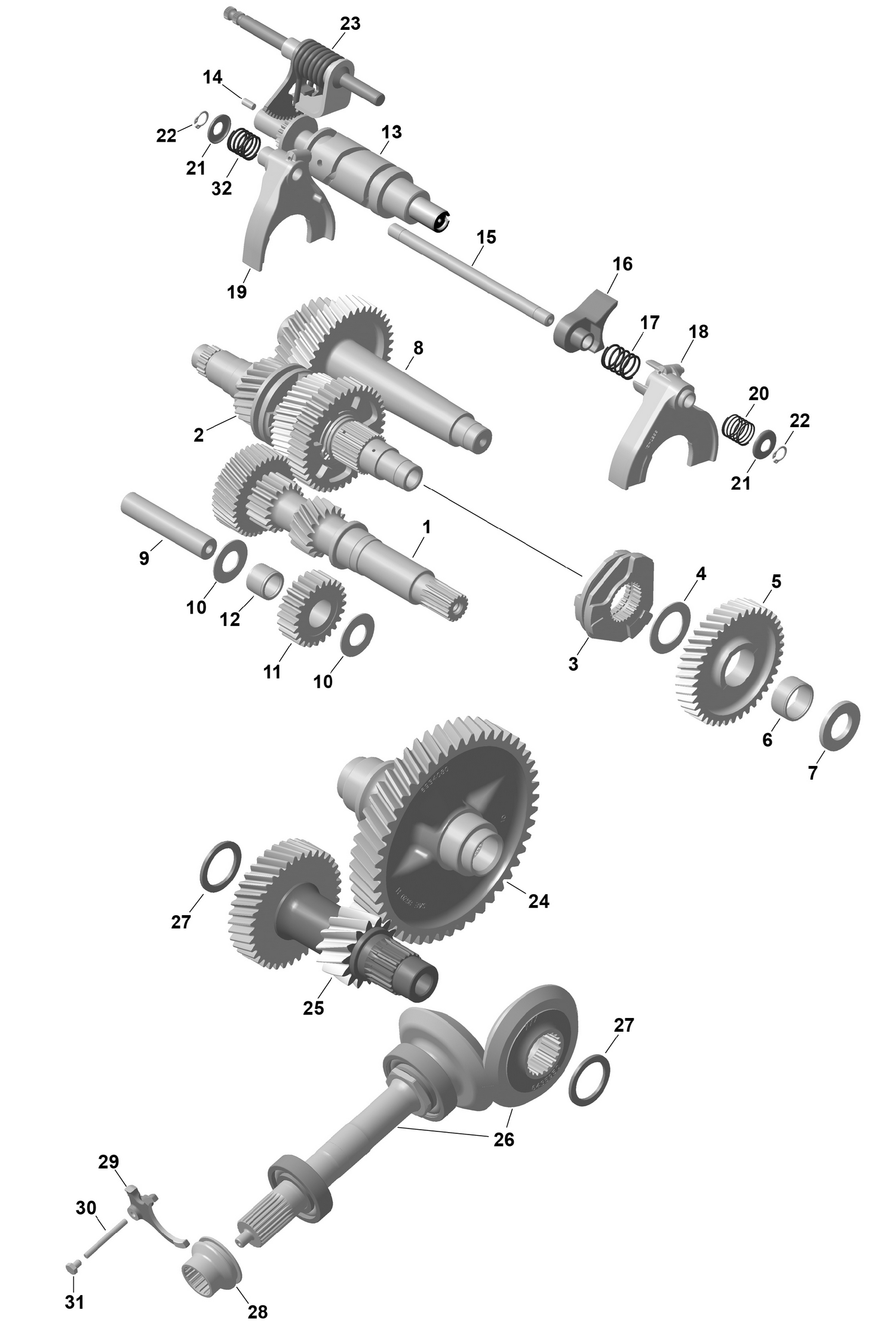

01- ROTAX - GearBox 2 - 420686788
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420637792 | Counter Shaft |
| 3 | XXX | Not Available As Spare Parts |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 420427082 | Thrust Washer |
| 8 | 420637549 | Intermediate Shaft |
| 10 | XXX | Not Available As Spare Parts |
| 11 | XXX | Not Available As Spare Parts |
| 12 | XXX | Not Available As Spare Parts |
| 14 | 420932780 | Needle Pin |
| 15 | 420657432 | Fork Spindle |
| 16 | 420657476 | Shifting Block |
| 17 | 420638077 | Spring |
| 18 | 420257001 | Shift Fork Ass'y |
| 19 | 420657559 | Gearshift Fork Ass'y |
| 20 | 420638072 | Spring |
| 21 | 420427140 | Spring Seat |
| 22 | 420945470 | Retaining Ring |
| 23 | 420637569 | Shift Shaft With Gear |
| 24 | 420934083 | Drive Gear 48T |
| 25 | XXX | Not Available As Spare Parts |
| 26 | XXX | Not Available As Spare Parts |
| 27 | XXX | Not Available As Spare Parts |
| 28 | 420257674 | Shifting Sleeve |
| 29 | 420257606 | Shifting Fork |
| 30 | 420832650 | Needle Pin |
| 31 | 420841581 | Hex Screw M6 X 8 |
