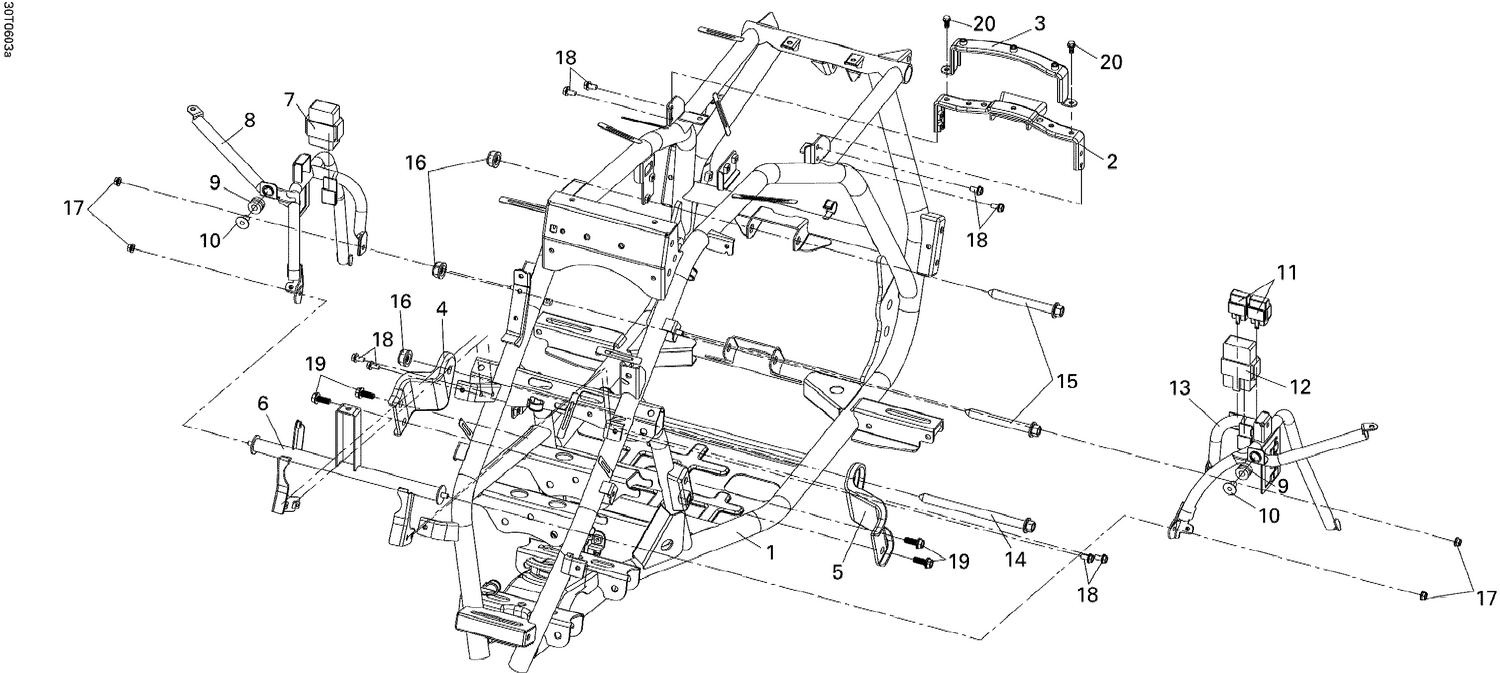

09- Frame, System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S50100RCA000 | Frame Front |
| 2 | S50171RCA000 | Tank Cover Bracket |
| 3 | S50172RCA000 | Tank Bracket |
| 4 | S50350RCA000 | RH Engine Bracket |
| 5 | S50360RCA000 | LH Engine Bracket |
| 6 | S50510RCA000 | Front Fender Support |
| 7 | S3576ARCA000 | SHIFT GEAR CONTROL UNIT - Call your local BRP dealership |
| 8 | S50520RCA000 | RH Front Fender Support |
| 9 | S80103X01000 | Rubber Washer |
| 10 | S80104X01000 | Fender Collar |
| 11 | S3850AHLA000 | Elec.Relay Assy - Call Your Local BRP Dealership |
| 12 | S3872ARB1000 | Hazard Control Unit Ass'y |
| 13 | S50522RCA000 | LH Front Fender Support |
| 14 | S90101RCA000 | Bolt M12 X 162 |
| 15 | S90102RCA000 | Bolt M12 X 98 |
| 16 | S90306M9Q000 | Self Lock Nut M12 |
| 17 | S9405006070 | Flanged Nut 6 mm |
| 18 | S958010601207 | Flanged Bolt M6 X 12 |
| 19 | S958011001607 | Flanged Bolt M10 X 16 |
