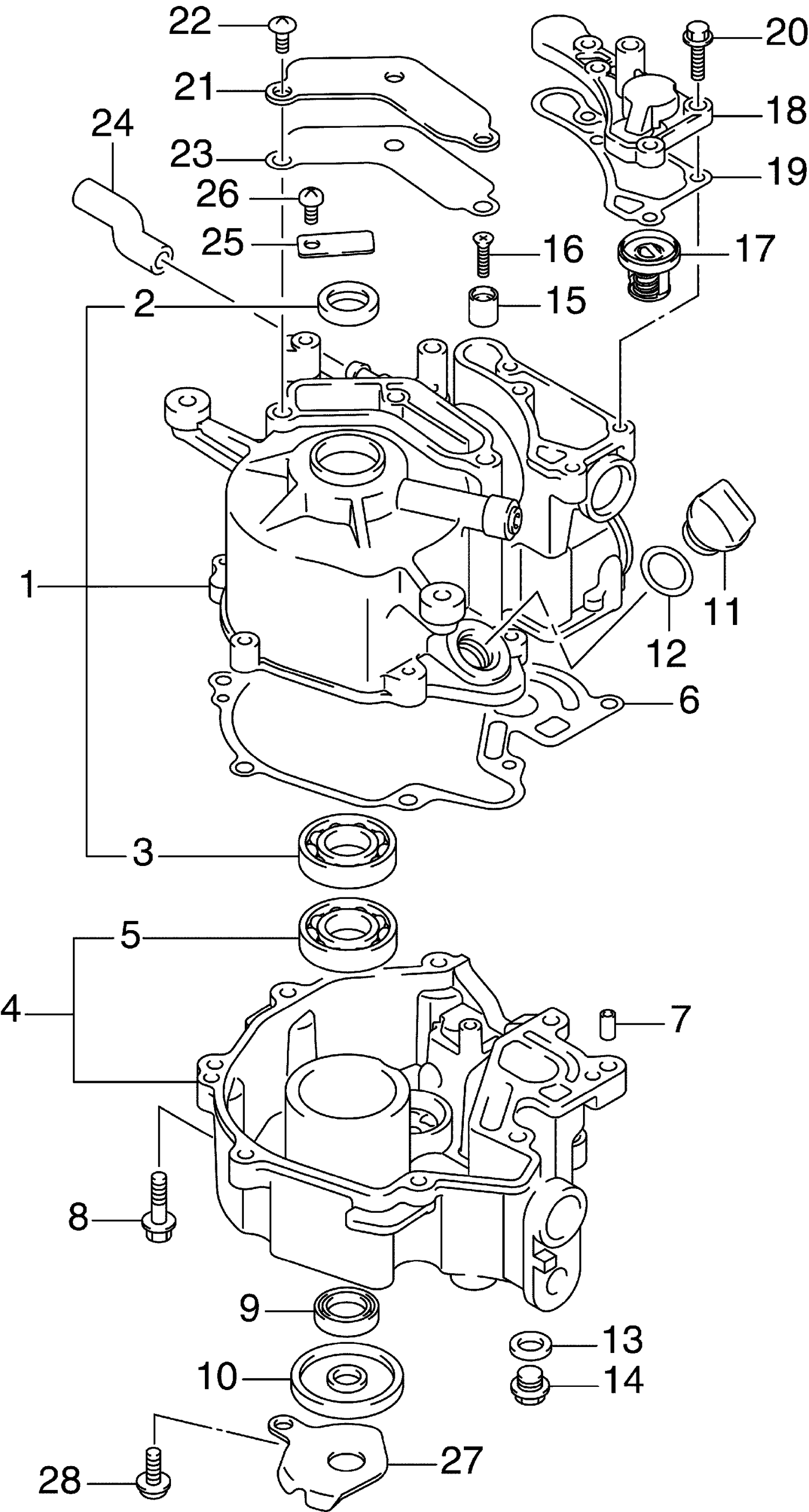

CYLINDER & CRANKCASE
Parts (22)
| Ref | Part Number | Description |
|---|
| 1 |
5037296 |
BLOCK ASSY, CYLINDER |
| 4 |
5037299 |
CASE ASSY, CRANKSHAFT |
| 6 |
5037301 |
GASKET, CRANKCASE |
| 7 |
5031015 |
PIN |
| 9 |
5037302 |
SEAL, Driveshaft |
| 10 |
5037303 |
SEAL, Crankshaft |
| 11 |
5037304 |
CAP, Oil filler |
| 12 |
5030104 |
JOINT TORIQUE |
| 13 |
5030071 |
GASKET |
| 14 |
5030094 |
BOLT (10X7.5mm) |
| 15 |
5036804 |
ANODE |
| 16 |
5036805 |
SCREW, Anode |
| 17 |
5033385 |
THERMOSTAT |
| 18 |
5037305 |
COVER, Thermostat |
| 19 |
5037306 |
GASKET, Thermostat cover |
| 21 |
5037307 |
PLATE, Breather |
| 22 |
5031009 |
BOLT, Breather plate |
| 23 |
5037308 |
GASKET, Breater plate |
| 24 |
5037309 |
Hose |
| 25 |
5033349 |
VALVE, REED |
| 26 |
5034132 |
SCREW |
| 27 |
5037310 |
PLATE, Under oil seal |
