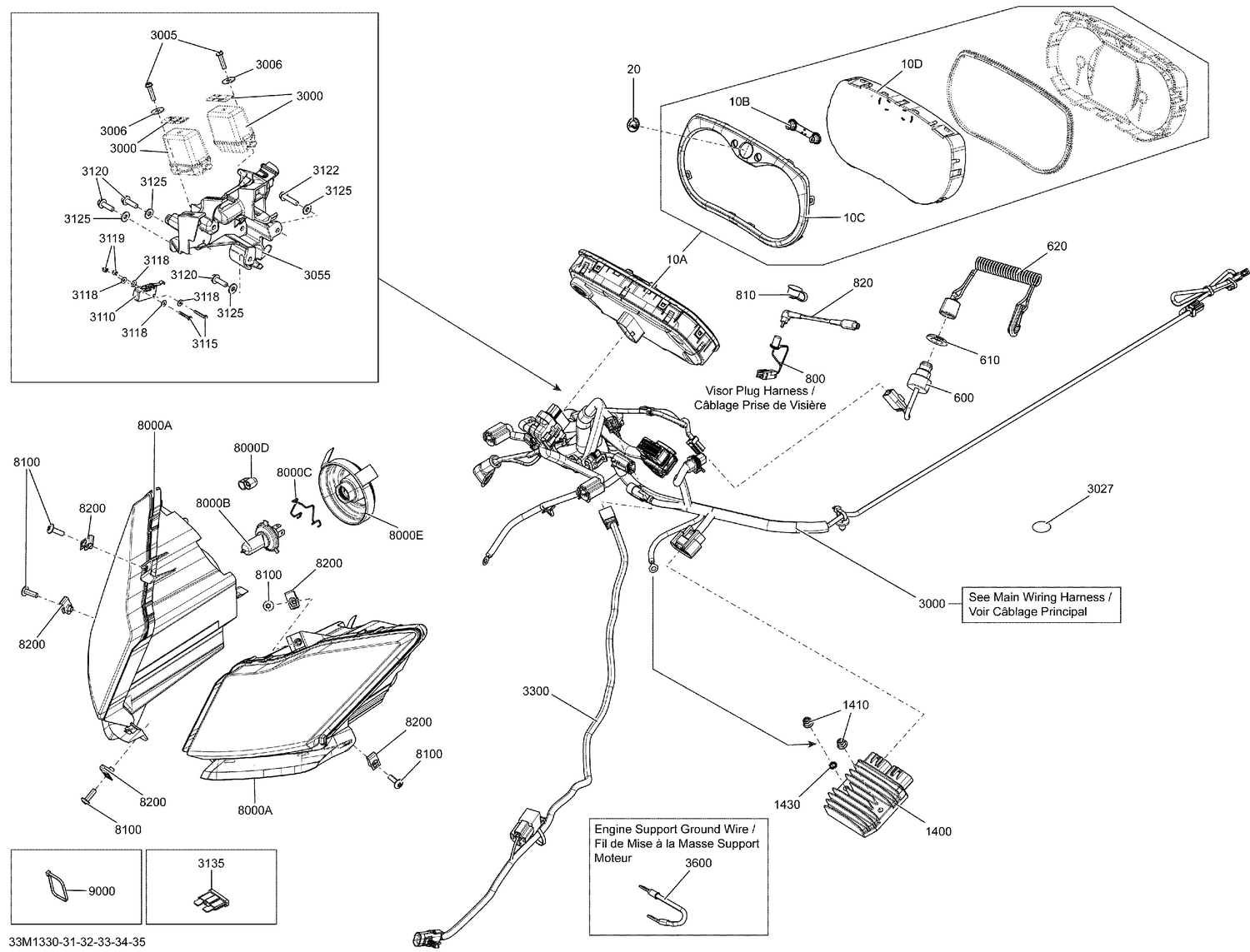

10- Electrical System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10B | 415129355 | Speedometer Button |
| 10C | 415129370 | Gauge Ring |
| 10D | 415129349 | Lens |
| 20 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 600 | 515177249 | DESS Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178284 | DESS This part replaces 515177057. |
| 800 | 515177837 | Visor Harness This part replaces 515177187. |
| 810 | 572103300 | Cap |
| 820 | 515175851 | Extension |
| 1400 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1430 | 234461608 | External Serrated Lock Washer 6 mm |
| 3000 | 515177381 | MAIN WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 3005 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 3006 | 234062600 | Flat Washer M6, Stainless |
| 3027 | 518325560 | Adhesive Patch |
| 3055 | 515176866 | PLATE - Call your local BRP dealership |
| 3110 | 515176881 | SWITCH ASS'Y - Call your local BRP dealership |
| 3115 | 207132044 | Hex Screw M3 X 20 |
| 3118 | 234032600 | Flat Washer M3, Stainless |
| 3119 | 232531423 | Elastic Stop Nut M3 |
| 3120 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3122 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 3125 | 250200039 | Flat Washer |
| 3135 | 710000742 | Little Fuse, 5 Amperes |
| 3135 | 710000744 | Little Fuse, 10 Amperes |
| 3135 | 710000745 | Little Fuse, 15 Ampere |
| 3135 | 710000746 | Little Fuse, 20 Amperes |
| 3135 | 710000747 | Little Fuse, 30 Amperes |
| 3300 | 515177646 | Fan Harness This part replaces 515177105. |
| 3600 | 515177014 | Ground Wire |
| 8000B | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8000C | 515176493 | BULB HOLDER - Call your local BRP dealership |
| 8000D | 515176498 | Cap |
| 8000E | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 8100 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 8200 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750009 | Tie-Rap 173 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
