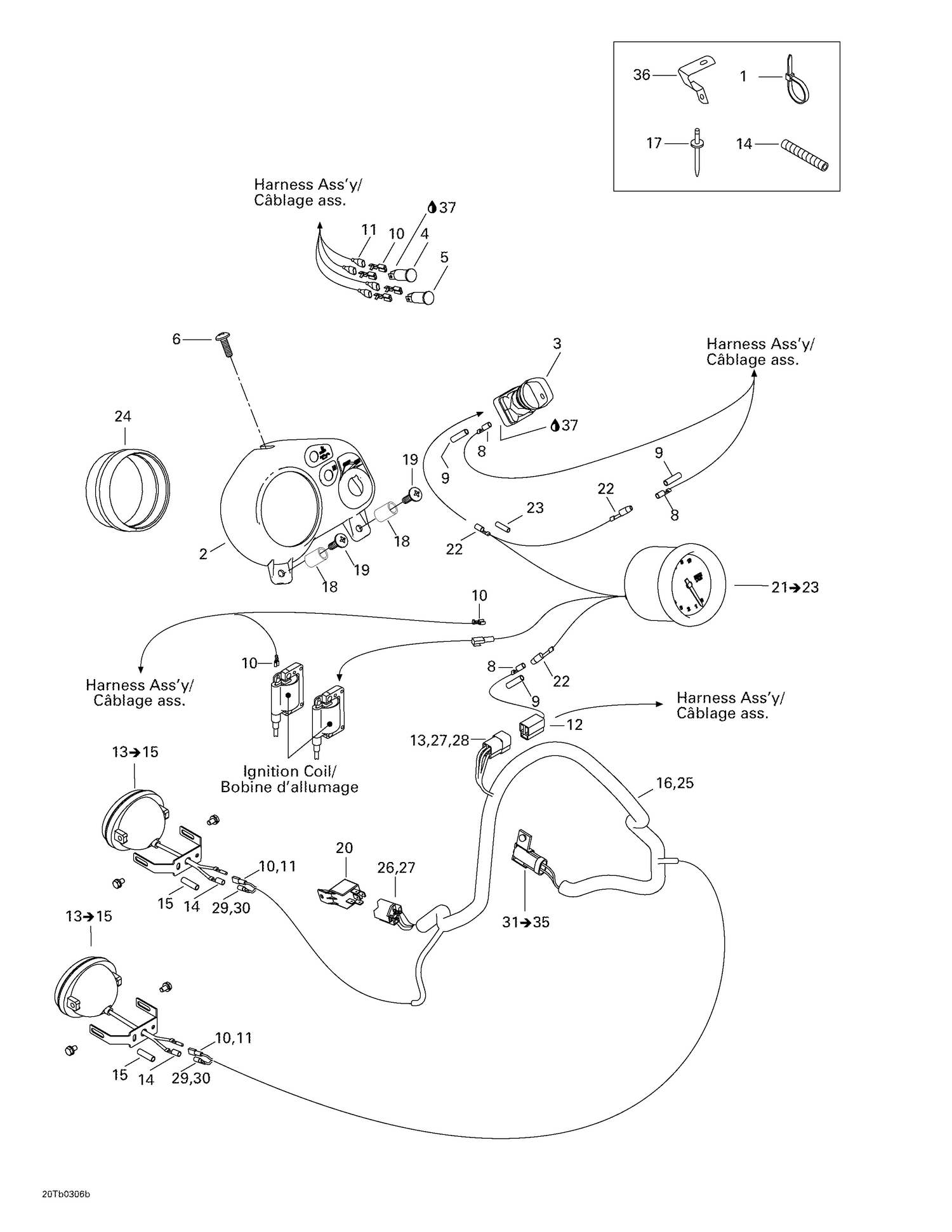

10- Electrical System 2
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm |
| 1 | 293750008 | Tie Wrap 368 mm |
| 1 | 414115200 | Tie-Rap 180 mm |
| 2 | 710000060 | DASHBOARD - Call your local BRP dealership |
| 3 | 710000075 | IGNITION SWITCH - Call your local BRP dealership |
| 3 | 710000101 | BLANK KEY (B TYPE) - Call your local BRP dealership |
| 3 | 710000137 | BLANK KEY (A TYPE) - Call your local BRP dealership |
| 4 | 710000062 | Pilot Lamp, Red |
| 5 | 710000063 | Pilot Lamp |
| 6 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 | 710000226 | Harness Ass'y, Not Shown |
| 8 | 278001009 | Female Terminal This part replaces 290964068. |
| 9 | 278001007 | Insulated Sheath This part replaces 290964072. |
| 10 | 710000114 | FEMALE TERMINAL - Call your local BRP dealership |
| 11 | 710000115 | Rubber Envelope Terminal |
| 12 | 409204300 | Female Housing |
| 16 | 219704399 | Was 409901700 Tubing (9 mm) |
| 16 | 219704400 | Was 409901800 Tubing (13 mm) |
| 16 | 219704407 | Tubing 10 MM 1000MM Long |
| 16 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 16 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 20 | 710010053 | Relay This part replaces 410113200. |
| 21 | 710000251 | Tachometer |
| 22 | 278000230 | Male Terminal |
| 23 | 278000770 | Insulated Sheath |
