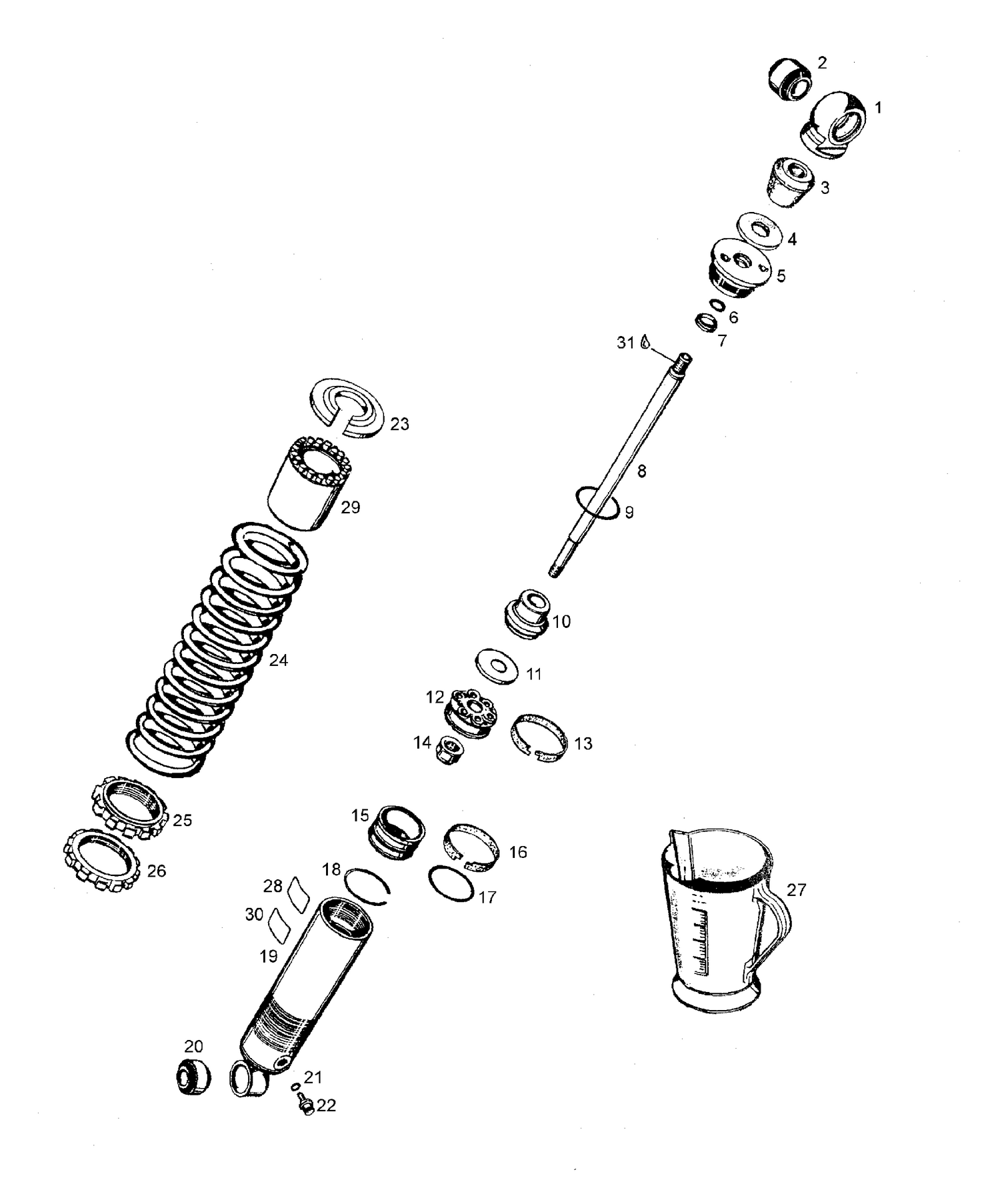

08- Rear Suspension
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | WP361206711 | Mounting eye |
| 2 | WP46811734 | Silentblock |
| 3 | WP36120548 | Bumprubber |
| 4 | WP46811656 | Disc |
| 5 | WP36120711 | Screw cap |
| 6 | WP46810011 | O-ring |
| 7 | WP46810027 | Duest seal |
| 8 | WP36120707 | Piston rod |
| 9 | WP36120064 | O-ring |
| 10 | WP36120712S1 | Adaptor |
| 11 | WP36120710 | Rebound bush |
| 12 | WP36120071 | Piston |
| 13 | WP36120040 | Piston ring |
| 14 | WP36120052 | Nut |
| 15 | WP36120440 | Separation piston d=36 |
| 16 | WP3612444 | Piston ring |
| 17 | WP36120064 | O-ring |
| 18 | WP40540015 | Circlip |
| 19 | WP36120675 | Tube |
| 20 | WP46811734 | Silentblock |
| 21 | WP46810893 | O-ring |
| 22 | WP36120151 | Nitrogenplug |
| 22 | WP93010053 | Spring d=10.00 |
| 23 | WP36120643 | Spring retainer |
| 24 | Not | Available As Spare Part - Spring d=11.25 - DOES NOT APPLY TO THIS MODEL |
| 25 | WP36120642 | Spring retainer |
| 26 | WP36120641 | Spring retainer |
| 27 | WP46810208 | Shock absorber oil |
| 28 | WP52000039 | Lynx-decal |
| 29 | WP36120467 | Protection sleeve |
| 30 | WP52000012 | Caution decal |
