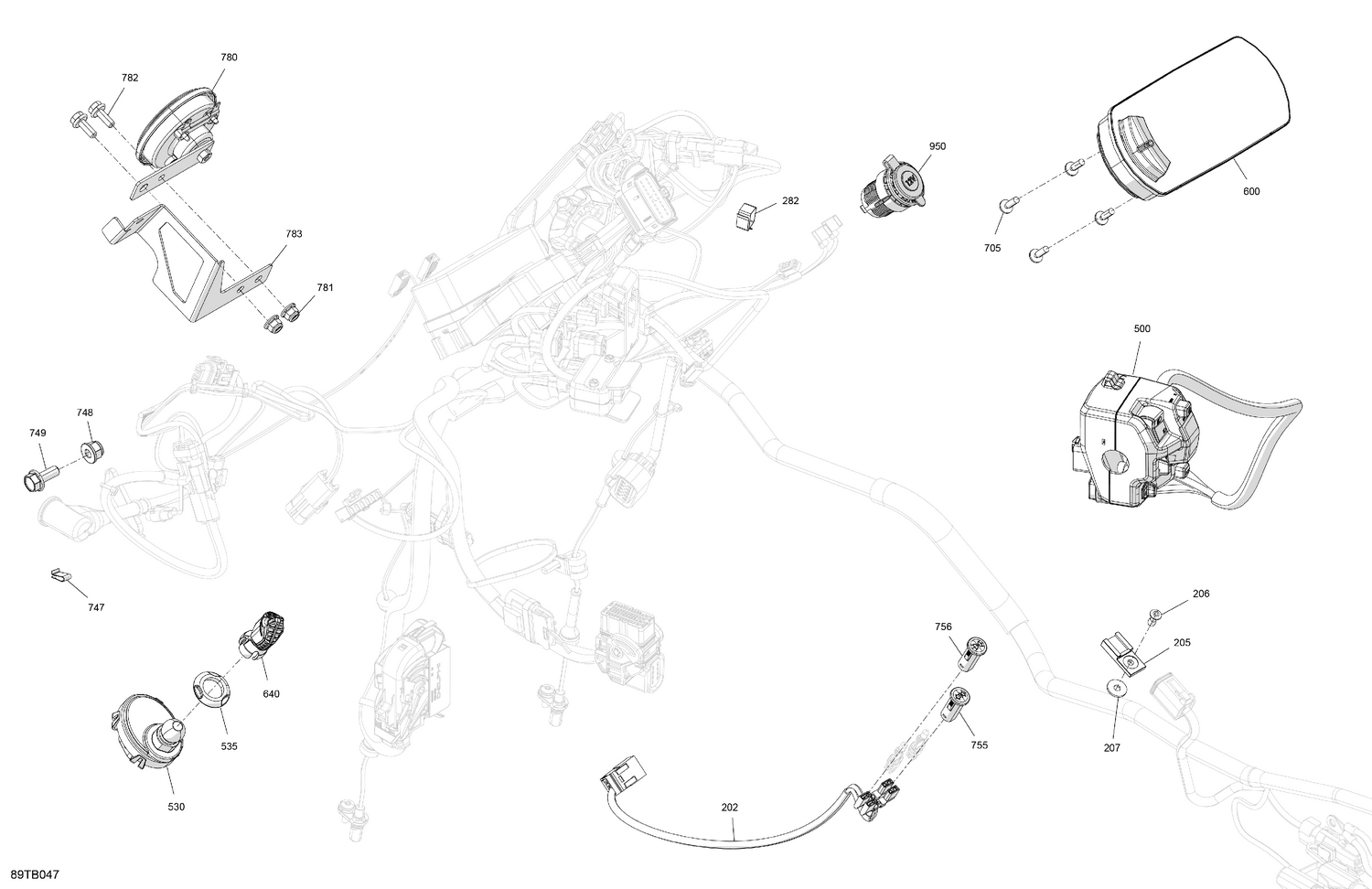

08- Electric - Front Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 202 | 710007825 | Tell Tale Wiring Harness |
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 282 | 710010204 | Clip |
| 500 | 710006945 | LH Front Multifunction Switch |
| 530 | 515178840 | Terminal Dess One-Wire |
| 535 | 278004274 | Specialized Nut |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 640 | 710004964 | Grey Key RFID |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 747 | 414479100 | Clip |
| 748 | 233281414 | Hex. Flange Elastic Nut M8 |
| 749 | 207682044 | Hex. Flange Screw M8 X 20 |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
| 783 | 710006112 | Horn Support |
