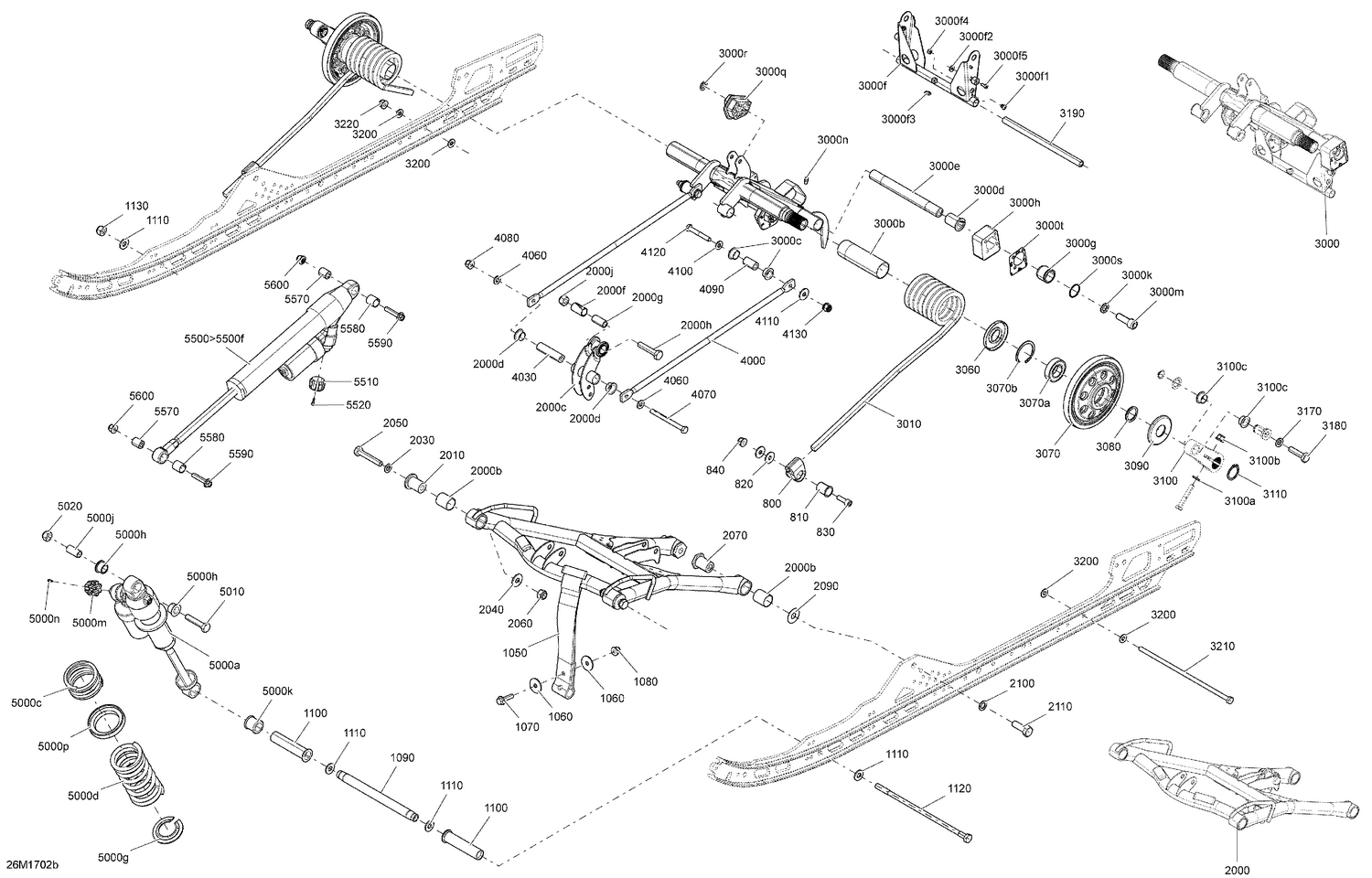

08- Rear Suspension - Model 137 - Superior
Parts (102)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 820 | 234082410 | Flat Washer 8 mm |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 1050 | 503192759 | Stopper Strap |
| 1060 | 250200128 | Flat Washer 8 mm |
| 1070 | 207683044 | Hex. Flange Screw M8 X 30 |
| 1080 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503193435 | Pivot Axle |
| 1100 | 503191259 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 2000b | 503191554 | Bushing |
| 2000c | 503192531 | Rocker |
| 2000d | 503191555 | Swivel Bushing |
| 2000f | 503193037 | Bushing |
| 2000g | 503189282 | Bushing |
| 2000h | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000j | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503190698 | Axle |
| 2030 | 503192496 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503191966 | Lower Axle |
| 2090 | 503190656 | Washer |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000b | 503192767 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191640 | Cushion |
| 3000e | 503192981 | Lower Shaft |
| 3000f1 | 390402200 | Pop Rivet 3/16" |
| 3000f2 | 517225900 | Flat Washer |
| 3000f3 | 408200700 | Grease Fitting |
| 3000f4 | 232551414 | Elastic Stop Nut M5 |
| 3000f5 | 205041060 | Socket Head Screw M4X 10 |
| 3000g | 503192749 | Guide Block |
| 3000h | 503192918 | LH Cam Block |
| 3000h | 503192919 | RH Cam Block |
| 3000k | 503189276 | Washer |
| 3000m | 205523554 | Socket Head Screw M12 X 35 |
| 3000n | 408200700 | Grease Fitting |
| 3000q | 503191565 | LH Cam Adjuster |
| 3000q | 503191566 | RH Cam Adjuster |
| 3000r | 293370013 | E-Circlip |
| 3000s | 503192921 | O-Ring |
| 3000t | 516004900 | LH Block Sticker Decal |
| 3000t | 516004901 | RH Block Sticker Decal |
| 3010 | 503192104 | Black, RH Spring Square |
| 3010 | 503192105 | Black Lh Spring |
| 3060 | 503190434 | Labyrinth Seal |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3080 | 503189146 | Axle Spring |
| 3090 | 503192592 | Labyrinth Ring |
| 3100a | 503192494 | Washer |
| 3100b | 233281466 | Elastic Flange Nut M8 |
| 3100c | 503191555 | Swivel Bushing |
| 3110 | 293370080 | Retaining Ring |
| 3170 | 503192496 | Washer |
| 3180 | 207204056 | Cap Screw Hex. M10 X 40 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503193005 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503192555 | Axle Bar |
| 4100 | 503192494 | Washer |
| 4110 | 234082410 | Flat Washer 8 mm |
| 4120 | 207085586 | Hex. Screw M8 X 55 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 5000a | 503194071 | Center Shock |
| 5000c | 503193479 | Black, Spring (52mm) Short |
| 5000d | 503193065 | Black, Spring (162mm) Long |
| 5000g | 503194270 | Spring Stopper |
| 5000h | 503189117 | Urethane Bushing |
| 5000j | 503189282 | Bushing |
| 5000k | 503189271 | Bushing |
| 5000m | 503193033 | Shock Adjuster Knob |
| 5000n | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 5000p | 503192743 | Spring Spacer |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500e | 505070400 | O-Ring |
| 5500f | 415093804 | O-Ring |
| 5510 | 503193033 | Shock Adjuster Knob |
| 5520 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
