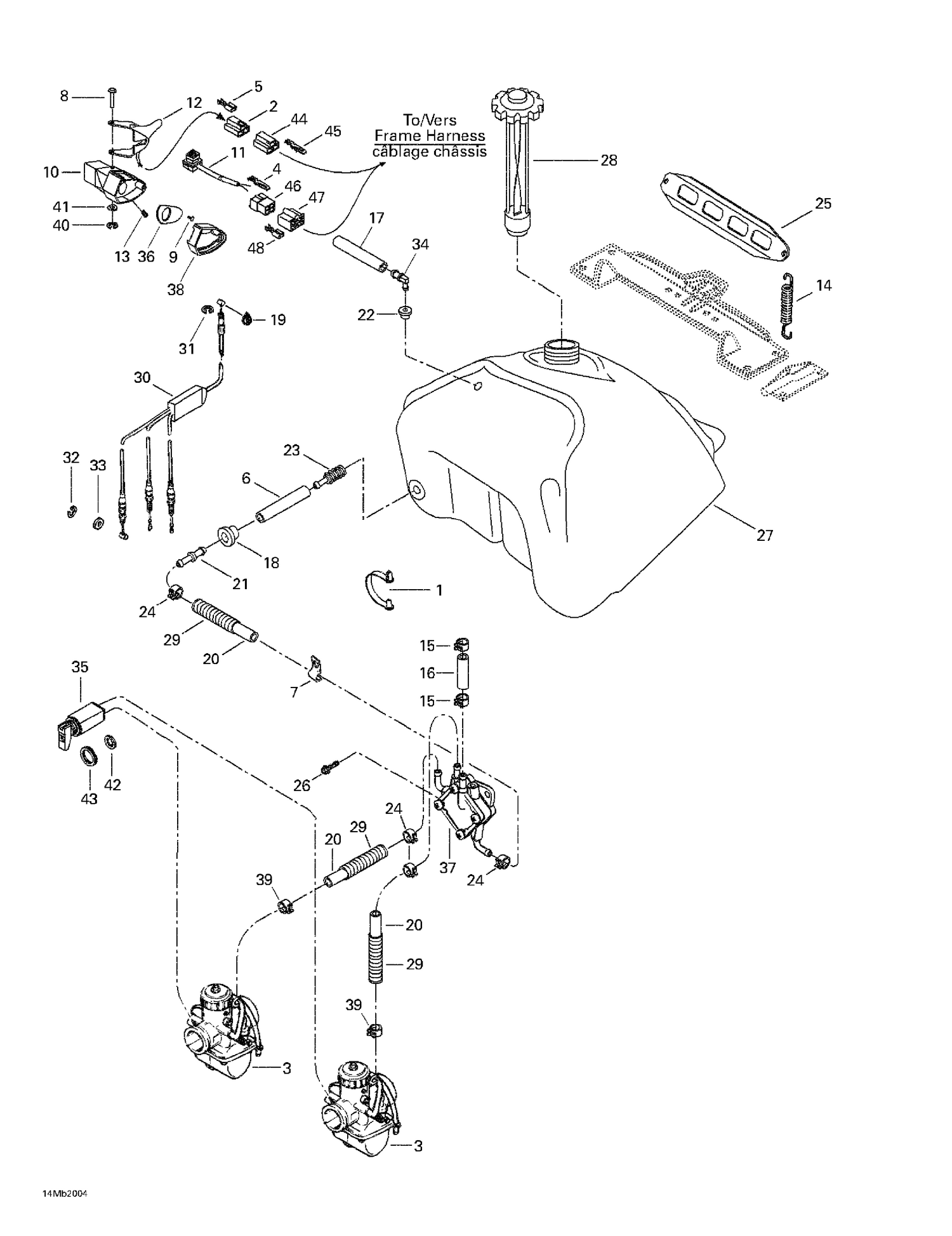

| Ref | Part Number | Description |
|---|
| 1 |
414379300 |
CABLE CLIP - Call your local BRP dealership |
| 2 |
409008500 |
Female Terminal Housing (3 circuits) |
| 4 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 5 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Fuel line |
| 7 |
415018200 |
CLIP - Call your local BRP dealership |
| 8 |
414438700 |
Lever Pin |
| 9 |
414473200 |
Screw |
| 10 |
512060603 |
Throttle Housing This part replaces 572086700. |
| 11 |
515177362 |
Emergency Stop Switch This part replaces 512059146. |
| 13 |
414440800 |
Socket Set Screw M8 X 10 |
| 14 |
517182100 |
SPRING - Call your local BRP dealership |
| 15 |
414415200 |
Spring Clamp |
| 16 |
219704549 |
Hose This part replaces 219704439. |
| 17 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 18 |
570045500 |
Grommet |
| 19 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 20 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 21 |
414518500 |
Male Connector |
| 22 |
709200285 |
Grommet This part replaces 570135100. |
| 23 |
414865700 |
Fuel Filter |
| 24 |
414554800 |
Spring Clamp |
| 25 |
517249200 |
Fuel Tank Bracket |
| 26 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 27 |
572108900 |
Fuel Tank |
| 28 |
572161200 |
Fuel Tank Cap |
| 29 |
219704407 |
Tubing 10 MM 1000MM Long |
| 30 |
414883100 |
THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 31 |
414274500 |
Circlip |
| 32 |
414753500 |
Circlip |
| 33 |
234081100 |
Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 34 |
414814100 |
Male Connector |
| 35 |
414967000 |
CHOKE CABLE - Call your local BRP dealership |
| 36 |
512060390 |
Plate This part replaces 572099400. |
| 37 |
403801000 |
Fuel Pump |
| 38 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 39 |
414420700 |
Spring Clamp |
| 40 |
414439000 |
Circlip |
| 41 |
234051600 |
Flat Washer M5, Stainless This part replaces 414438900. |
| 42 |
394103300 |
Lock Washer, Interior Teeth |
| 43 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 44 |
409008600 |
Male Terminal Housing (3 circuits) |
| 45 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 46 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 47 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
